Kitamura

Vertical Machining Centres

Mycenter-3XG

Table Size 410x900mm
Travel(X, Y, Z) 760x455x460mm
Spindle Taper NST No. 40
Spindle Speed 15,000rpm
Tool Storage Capacity 30 Pcs
Tool Change Time (T-T/C-C) 1.6 Sec. /3.3 Sec
Rapid Feed (X, Y, Z) X/Y - 50m/min, Z - 36m/min
Power Requirement 30KVA
Mycenter-3XD

Mycenter-3XD

  • Ideal for machining small to medium sized work pieces
  • Large work envelope within a uniquely compact design
  • Heavily ribbed stiff cast Meehanite C-Frame construction
  • #40, 30HP, 12,000rpm NRG belt driven spindle offers power that exceeds industry standards
  • Plumbed and ready for coolant thru the spindle – can be added in field
  • Standard scraper type chip conveyor can be installed on either the right or left-hand side of the machine
  • Operator friendly Kitamura Arumatik-Jr. CNC Controller offers up to 16x faster processing speeds!

Specifications

Specifications

Table Size 500x860mm
Travel(X, Y, Z) 760x510x510mm
Spindle Taper NST No. 40
Spindle Speed 12,000rpm 15,000rpm opt.
Tool Storage Capacity 24 Pcs, 30 Pcs opt.
Tool Change Time (T-T/C-C) 1.9 Sec. /4.8 Sec
Rapid Feed (X, Y, Z) X/Y - 48m/min, Z- 42m/min
Power Requirement 25KVA
Mycenter-3XG Spark Changer

Mycenter-3XG Spark Changer

  • 180 degree rotating pallet changer for high production requirements
  • Ideal for heavy duty cutting of molds o the high-speed accuracy cutting for high precision parts
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with solid box ways
  • Versatile 15HP AC, 15,000rpm direct drive, dual contact spindle
  • Flexibility with the ability to add 4th/5th axis in the field
  • 2,800 block/sec processing speeds for smoother and faster machining of complex work pieces

Specifications

Specifications

Table Size 410x864mm
Travel(X, Y, Z) 760x455x460mm
Spindle Taper NST No. 40
Spindle Speed 15,000rpm
Tool Storage Capacity 30 Pcs
Tool Change Time (T-T/C-C) 1.6 Sec /3.3 Sec
Rapid Feed (X, Y, Z) X/Y - 50m/min, Z- 36m/min
Power Requirement 30KVA

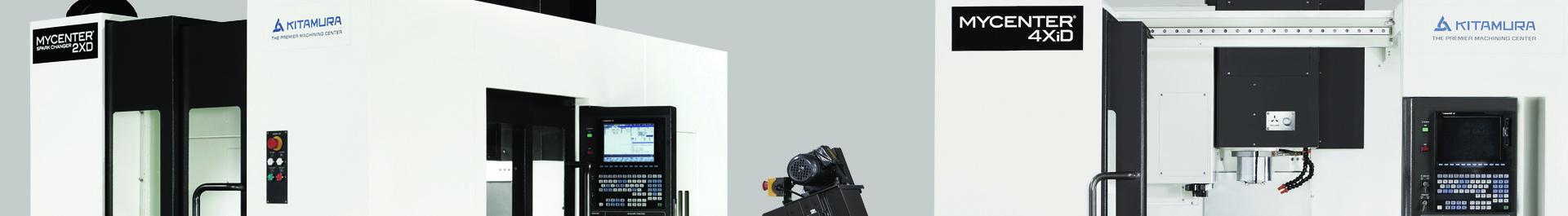

Mycenter 4XiD

• Powerful, High-Precision 35hp Spindle
• Class-Leading High-Capacity 40 Tool ATC
• Large 1,016 x 508 x 508mm (40" x 20" x 20") X,Y, Z Travels for
• Maximum Machining Flexibility
• High-Grade Solid Cast Construction
• 3-Block, Double Roller LM Guide System
• Compact Space-Saving Design - only a 3,058.2 x 2,293.6mm
• 120.4" x 90.3" Footprint. Truly the size of a 30" machine!
• Extraordinary Chip Removal



Specifications

Specifications

Table Size 500 x 1,120mm
T-Slot (Width x Qty.) 18mm x 5
Max.Table Load 1,000kg

Travels
X-Axis Travel 1,020mm
Y-Axis Travel 510mm
Z-Axis Travel 510mm
Distance from Table Top
to Spindle Nose 100 to 610mm

Spindle
Spindle Taper #40 NST
Spindle Speed 12,000min-1 NRG Belt Drive
Spindle Motor 26kW (35HP) AC/Peak
                                                                         22kW (30HP) AC/10 min
                                                                         15kW (20HP) AC/30 min
                                                                         11kW (15HP) AC/Cont.

Feed
Rapid Feed X,Y 48m/min
Rapid Feed Z 42m/min
Cutting Feed Rate X, Y, Z 20m/min

ATC
Tool Storage Capacity 40 Tools - CT 40
Tool Selection Method Memory Random
Max. Tool Size (Dia. x L) Ø 75mm x 250mm
(With Adjacent Tool Pots Empty) Ø127mm x 250mm
Max. Tool Weight 7kg
Tool Change Time 1.9 seconds/8.0 sec min.

Machine Dimensions
Required Space (W x D) 3,058 x 2,293mm - Super Compact!


Mycenter-2XD Sparkchanger

• Ideal for machining small to medium sized work pieces
• Standard 2-station, factory installed 180 degree rotating APC. Uniquely compact design
• Heavily ribbed stiff cast Meehanite C-Frame construction
• #40, 35HP, 12,000rpm NRG belt driven spindle offers power that exceeds industry standards
• Convenient and flexible standard scraper type chip conveyor
• Operator friendly Kitamura Arumatik-Jr. CNC Controller offers up to 16x faster processing speeds!

Specifications

Specifications

Table Size:                                           400 x 560mm
Travel (X, Y, Z)                                     600 x 510 x 510mm
Spindle Taper:                                      NST No. 40
Spindle Speed:                                    12,000rpm, NRG Belt Drive
Tool Storage Capacity:                        40 Pcs.
Tool Change Time (T-T/C-C):              2.8 Sec./5.2 Sec.
Rapid Feed (X, Y x Z):                         48m/min) X/Y x 1,654ipm Z
Power Requirement:                            30KVA

Bridgecenter-6G#50

• Ideal for parts requiring heavier cutting loads and parts that require a higher level of precision and accuracy.  Excellent for Die/Mold applications.
• Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”
• Rigid Meehanite cast iron construction with induction hardened solid box ways
• #50, High Torque 12,000rpm, Dual Contact, 4-Step Gear Driven Spindle
• Double column design provides expansive work envelope and superior rigidity
• Linear scale feedback in X, Y, Z axes
• Space saving footprint takes up only 166 total square feet
• 6,600Lb table capacity

Specifications

Specifications

Table Size: 900 x 1,800mm
Travel (X, Y, Z): 1,530 x 1,095 x 710mm
Spindle Taper: NST No. 50
Spindle Speed: 35~12,000rpm Gear Drive, 4-Step
Tool Storage Capacity: 40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C): 6.6 Sec. /12 Sec.
Rapid Feed (X, Y, Z): 24m/min
Power Requirement: 45KVA

Supercell-300G

• Horizontal configuration allows flexibility for single set-up, unmanned machining
• Ultra high positioning Accuracy: ±0.000079”/full stroke, Repeatability: ±0.000039”
• Ideal for both unmanned one-off and high quantity production
• Standard 20-station automatic pallet changer with up to 80 pallets available as an option
• Highest grade Meehanite cast iron construction with heavy duty roller linear guide way system
• High speed, built-in, dual contact 20,000rpm spindle
• Work handling system reduces pallet load & unload time, allowing for just-in-time operation

Specifications

Specifications

Table Size: 200mm
Travel (X, Y, Z): 460 x 410 x 460mm
Travel (A, B): 30 to -120 deg. /360 deg.
Spindle Taper: NST No. 40
Spindle Speed: 200~20,000rpm
Tool Storage Capacity: 174 Pcs. (230,258,314 Opt.) Matrix Style
Tool Change Time (T-T/C-C): 1.3 sec. /2.5 sec.
Rapid Feed  (X, Y, and Z): 60m/min
Rapid Feed (A, B): 18,000 deg./min (50rpm)
Power Requirement: 55KVA

Horizontal Machining Centres

Mycenter-HX250G

Mycenter-HX250G

  • Ideal for simultaneous 4-axis machining of small, detailed, highly accurate parts
  • Amazingly small footprint saves on valuable floor space
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • World's fastest rapid feed rates at 2,362ipm
  • Rigid Meehanite cast iron construction
  • High power, high-speed processing Arumatik-Mi CNC
  • Powerful 15,000rpm, dual contact spindle - Now Available, 30,000rpm HSK-E40 spindle!

Brochure

Brochure

PDF icon HX250iG MAY8.pdf

Specifications

Specifications

Table Size 254x254mm
Travel (X, Y, Z) 305x305x330mm
Spindle Taper NST No. 30
Spindle Speed 150~15,000rpm, 30,000 opt.
Tool Storage Capacity 40 Pcs - Expandable in the Field to 102 Tools!
Tool Change Time (T-T/C-C) 1.2 Sec/3.0 Sec
Rapid Feed (X, Y, and Z x B) 60m/min x 12,000deg/min
Power Requirement 30KVA
Mycenter-HX400G

Mycenter-HX400G

  • Linear scale feedback system – fine pitch, high resolution ballscrews
  • Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
  • Expandable, 2-station rotating pallet system
  • Full 4th axis rotary table with high resolution rotary scale for 360ᴼ cutting capability
  • Highest grade Meehanite cast iron construction with world's fastest rapid feed rates of 2,362ipm with solid box ways
  • High-speed, 15,000 direct driven, dual contact spindle. Optional 20,000rpm now available!
  • High precision contour control for complex contouring & mold applications

Brochure

Brochure

PDF icon HX400iG MAY8.pdf

Specifications

Specifications

Table Size  400x400mm
Travel (X, Y, Z) 610x610x610mm
Spindle Taper NST No. 40
Spindle Speed 20~15,000rpm, 20,000rpm opt.
Tool Storage Capacity 50 Pcs, 100, 150, 200 opt.
Tool Change Time (T-T/C-C) 1.3 sec/2.5sec
Rapid Feed (X, Y, and Z x B) 60m/min) x 12,000deg/min
Power Requirement 45KVA
Mycenter-HX500G

Mycenter-HX500G

  • #40 Taper, 20,000rpm and #50 Taper, 12,000rpm spindle configurations. HSK spindle available as an option
  • Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
  • Solid box way construction, linear scales on all axes and twin ballscrew design in the X & Y axes
  • Full 4th axis rotary table for 360ᴼ cutting capability
  • World's fastest rapid feed rates of 2,362ipm on solid box ways
  • Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field
  • Beats the competition in work envelope size and stroke!

Brochure

Brochure

PDF icon HX500iG MAY8.pdf

Specifications

Specifications

Table Size 500x500mm
Travel (X, Y, Z) 870x800x930mm
Spindle Taper NST No. 40/NST No. 50
Spindle Speed 20~20,000rpm(#40), 35~12,000rpm(#50)
Tool Storage Capacity 50 Pcs, 62,100,150,200 opt.
Tool Change Time (T-T/C-C) 1.8 sec/2.8 sec (#40), 3.0 sec/7.0 sec (#50)
Rapid Feed (X, Y, and Z x B) 60m/minx12,000deg/min
Power Requirement 55KVA
Mycenter-HX800G

Mycenter-HX800G

  • #40 Taper, 20,000rpm and #50 Taper, 12,000rpm spindle configurations. HSK spindle available as an option
  • Positioning Accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
  • Solid box way construction, linear scales on all axes and twin ballscrew design in the X & Y axes
  • Full 4th axis rotary table for 360ᴼ cutting capability
  • World's fastest rapid feed rates of 2,362ipm on solid box ways
  • Standard 2-station APC offers the ability to add pallets and pallet pool systems in the field
  • Beats the competition in work envelope size and stroke!

Specifications

Specifications

Table size  800x800mm
Maximum table load 3000kg
Maximum workpiece diameter 1,525mm
Maximum workpiece height 1,550mm
X axis travel 1,5500mm
Y axis travel 1,300mm
Z axis travel 1,400mm
B-axis  0 to 360 degrees (full 4th axis)
Spindle taper   # 50 NST (HSK-A100 Option)
Speed ​​  35-12000U/min, 8000U/min opt.
Spindle motor 40kw
Rapid traverse X, Y, Z 60m/min
Feed rate X, Y, Z  60m/min
Speed ​​of rotation (B-axis) 12 000degrees/min
Number of pallets  2
Changing times 30sec
Max Tool size    125mm/320mm
Max Tool length   650mm
Max Tool weight 35kg
Tool change time 2.3sec
Chip to chip 6.0sec
Mycenter-HX1000i

Mycenter-HX1000i

  • Solid box way design combined with the rigidity of high grade meehanite casting
  • Positioning accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
  • Linear scale feedback on X, Y, Z axes
  • 1ᴼ indexer is positively positioned within ±1 arc/sec by a powerfully rigid curvic coupling
  • Maximum workpiece size 80.71” dia x 61.02” height. Table load capacity of 6,600Lbs +
  • Patented twin ballscrew/twin servo motor driven axis drive system
  • Flexibility with the ability to add a 5th axis in the field

Specifications

Specifications

Table Size 1,000x1,000mm
Travel (X, Y, Z)  2,040x1,320x1,370mm
Spindle Taper  NST No. 50
Spindle Speed  20~8,000rpm, 35~12,000rpm opt.
Tool Storage Capacity 150Pcs, 250, 300 opt.
Tool Change Time (T-T/C-C)  3.0 sec/7.0 sec
Rapid Feed (X, Y, Z)  36m/min
Power Requirement  80KVA

Mycenter - HX300G

  • Field expandable 2-station APC with high-speed 4th Axis rotary table and rotary scale. DD Motor driven with rapids 54,000deg/min
  • Ultra-high- speed rapid/cutting feeds,60m/min
  • Ultra-high-speed tool change, T-T 1.3 seconds
  • High-performance THK double roller linear guideways system
  • Powerful 15,000min, 30HP Direct Drive Dual Contact Spindle 20,000min, HSK spindle is an available option
  • Ballscrew cooling and fine resolution linear scale feedback in X,Y,Z axes

Brochure

Brochure

PDF icon HX300iG MAY8.pdf

Specifications

Specifications

Table size 305x305mm
Travel (X,Y,Z) 460 x510 x560 mm
Spindle Taper #40 NST
Spindle Speed 40 to 15,000min
Tool Storage Capacity 50 Tools
Tool Change Time (T-T/C-C) 1.3 sec /2.5 sec
Rapid Feed (X, Y, and Z x B) 60 m/min x 54,000deg/min
Power Requirments  45KVA




5-Axis Machining Centers

Mycenter-4XT

Mycenter-4XT

  • Built-in 4th/5th Axis Trunnion Table
  • Rigid solid box guideways incorporate a unique 4-slideway base construction for optimum rigidity
  • High speed rapids of 1417ipm (X, Y & Z) boosts work throughput
  • High speed 15,000rpm, 35HP, Dual Contact Spindle
  • Standard base wash system, internal chip augers and scraper type chip conveyor
  • Plumbed for coolant thru the spindle (220psi/1000psi option)
  • Affordably priced and feature packed!

Specifications

Specifications

Rotary Table Size  400mm
w/Full Table Length  365x600mm
Travel (X, Y, Z) 800x610x510mm
Spindle Taper NST No. 40
Spindle Speed  15,000rpm
Tool Storage Capacity 30 Pcs
Tool Change Time (T-T/C-C) 2.5 Sec/7.0 Sec
Rapid Feed (X, Y, Z) 36m/min
Power Requirement  35KVA
Mytrunnion-4G

Mytrunnion-4G

  • Ideal for ultra-high precision simultaneous 5-axis machining
  • Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
  • Sliding overhead door allows for easy workpiece loading/unloading
  • Powerful #40, 15,000rpm, 15HP Direct Drive, Dual Contact Spindle. Optional HSK-A63 Spindle Configuration available
  • Linear Scale Feedback on all Axes
  • Expansive 21.7"Dia. x 15.7"H (550 x 400mm) work envelope beats the competition
  • Highest grade meehanite cast iron construction for superior vibration absorption and improved surface finishes

Specifications

Specifications

Table Size: 15   400mm round dia, 550mm round dia opt.
Travel (X, Y, Z) 610x610x500mm
Travel (A, C) -120~+30 deg/0~360 deg
Spindle Taper NST No. 40
Spindle Speed 40~20,000rpm
Tool Storage Capacity 50Pcs
Tool Change Time (T-T/C-C) 5.9 Sec/9.4 Sec
Rapid Feed (X, Y, Z) X&Y 50m/min Z- 25m/min
Rapid Feed (A, C) 18,000 deg/min (50rpm)
Power Requirement 45KVA

Mytrunnion 5

• Ideal for ultra-high precision simultaneous 5-axis machining
• Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
• Sliding overhead door allows for easy workpiece loading/unloading
• Powerful 4-step geared spindle delivers high torque and high speed for maximum machining flexibility
• Linear scale feedback on all axes, A & B axis rotary scales
• Highest grade meehanite cast iron construction with solid box ways

Specifications

Specifications

Table Size: 630mm dia.
Travel (X, Y, Z):                                               815 x 745 x 500mm
Travel (A, C): -30~+120 deg. /0~360 deg.
Spindle Taper: NST No. 40
Spindle Speed: 20~20,000rpm
Tool Storage Capacity: 50 Pcs. (100 Opt.)
Tool Change Time (T-T/C-C): 2.5 Sec. /5.0 Sec.
Rapid Feed (X, Y, Z): 50m/min X & 25m/min Z
Rapid Feed (A, C): 2,000 deg. /min, 6,000 deg. /min
Power Requirement: 45KVA

Mytrunnion-7G

• Vertical 5-Axis machining center, ideal for large capacity, high precision Aerospace applications
• Positioning Accuracy: ±0.000079” Full Stroke, Repeatability: ±0.000039”
• Full 5-axis simultaneous capabilities
• Best performance, high output #50, 12,000rpm, gear driven dual contact spindle
• Linear Scale Feedback on all Axes
• Highest grade meehanite cast iron construction for superior vibration absorption and improved surface finishes
• Zero backlash roller cam style 4th/5th axis rotary table
• High speed rapid feed rates 1,969ipm (X, Y), 1,181 (Z) Super-fast for a machine of this size

Specifications

Specifications

Table Size: 1,000mm round dia.
Travel (X, Y, Z): 1,190 x 1,335 x 765mm
Travel (A, C): -120~+30 deg. /0~360 deg.
Spindle Taper: NST No. 50
Spindle Speed: 35~12,000rpm (8,000rpm Opt.) – Gear Drive, 4-Step
Tool Storage Capacity: 100 Pcs.
Tool Change Time (T-T/C-C): 3.3 Sec. /9.7 Sec.
Rapid Feed (X, Y, Z): 50m/min X/Y x 1,181ipm 30m/min Z
Power Requirement: 65KVA

CNC Bridge Type

Bridgecenter -6G #40

  • Ideal for parts requiring heavier cutting loads, as well as parts that require a higher level of precision and accuracy
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with solid box ways
  • #40, High Speed 15,000rpm, Dual Contact, Direct Drive Spindle
  • Double column design provides expansive work envelope and superior rigidity
  • Linear scale feedback in X, Y, Z axes
  • Space saving footprint takes up only 166 total square feet
  • 6,600Lb table capacity for heavy duty cutting of molds to high accuracy cutting of precise parts

Specifications

Specifications

Table Size 900 x 1,800mm
Travel (X, Y, Z)  1,530x1,095x710mm
Spindle Taper NST No. 40
Spindle Speed 15,000rpm
Tool Storage Capacity 40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C) 2.8sec/9sec
Rapid Feed (X, Y, Z)  24m/min
Power Requirement  35KVA

Bridgecenter- 8F #40/#50

  • Ideal for high precision machining of very large parts and molds
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with solid box ways
  • Choice of #40 or #50 taper spindles for maximum machining flexibility
  • Double column design provides expansive work envelope and superior rigidity
  • Linear scale feedback in X, Y, Z axes
  • Powerful geared spindles delivery high torque and high speeds for maximum machining flexibility

Specifications

Specifications

Table Size 900x2,500mm
Travel (X, Y, Z)  2,032x1,085x710mm
Spindle Taper NST No. 40, NST No. 50
Spindle Speed 40 Taper 20~20,000rpm,
50 Taper  60~6,000rpm (20~10,000rpm Opt.)
Tool Storage Capacity 30 Pcs. (40, 60, 80 Opt.)
Tool Change Time (T-T/C-C) 40Taper 6.5sec/13.6sec,
50 Taper 6.5sec/13.6sec
Rapid Feed (X, Y, Z)  24m/min
Power Requirement  45KVA

Bridgecenter -10

  • Ideal for high precision machining of very large parts and molds
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with solid box ways
  • #50, High Speed 10,000rpm, Dual Contact, 2-Step Gear Driven Spindle
  • Double column design provides expansive work envelope and superior rigidity
  • Linear scale feedback in X, Y, Z axes
  • Powerful geared spindles deliver high torque and high speeds for maximum machining flexibility

Specifications

Specifications

Table Size 3,000x1370mm
Travel (X, Y, Z) 2,540x1750x800mm
Spindle Taper NST No. 50
Spindle Speed 20~10,000rpm
Tool Storage Capacity 40 Pcs. (80 Opt.)
Tool Change Time (T-T/C-C) 2.8sec/9sec
Rapid Feed (X, Y, Z) 24m/min
Power Requirement 45KVA

CNC Controls

Arumatic - Exclusive to Kitamura Machines

Arumatic - Exclusive to Kitamura Machines

The user interface is the Windows XP operating system, offering the user the ability to simultaneously execute programs while engaging any compatible Windows based software, to include any CAD/CAM systems. A 3-year control components warranty comes standard with purchase.

The Arumatik-Mi control offers the user more practical communication and visible use. Operation processes are divided into three steps, ‘Monitor’, ‘Set-Up’ and ‘Edit’, and necessary information is aggregated into the three screens. These screens can be displayed by just a single touch of a button on the keyboard or touch screen. Customizable tabs allow the user to select necessary operation from the operation menu, and pop-up screens allow the user to access desired information while the original screen remains displayed.

Standard with a 19” LCD and dual keyboard layout (Kitamura conventional style control coupled with standard keyboard design) the Arumatik-Mi control offers comfortable and advanced operation for a variety of machining applications along with the ability to transfer existing Fanuc programs. The operation panel swings out 90º and comes equipped with a standard fixed remote pulse generator, making set-up for the operator easier.

About Company

Our clients range from FTSE companies, to large organisations and some small local businesses who are striving to expand.

To see a detailed list of our works and the progress please see our project page.

Cape Town Office

25 Mail Street, Western Province Park, Epping, Cape Town, 7460
+27 21 534 5351
FAX: +27 21 534 3374

Johannesburg Office

Corner of Atlas and Templehof South Road, Bonaero Park, Johannesburg
+27 11 970 7005
FAX: +27 86 678 9360
