LK Metrology

CMM

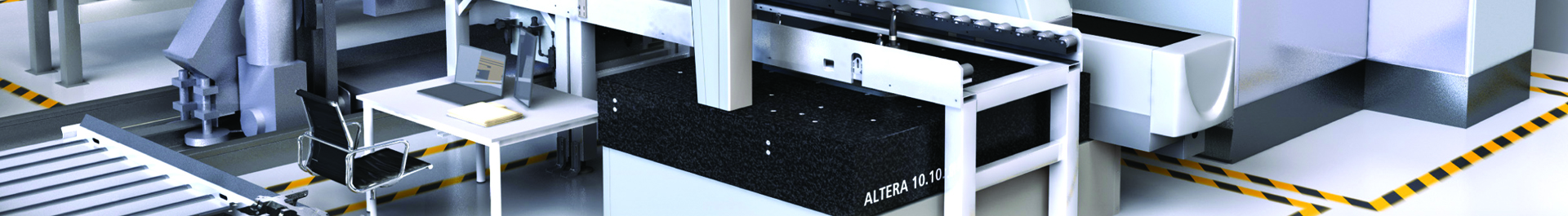

Altera S-Series

ALTERA is a versatile CMM platform with a wide range of standard sizes and choice of probing technology to suit every application and  budget.  The proven bridge design combines more than 50 years metrology experience with the latest advances in CMM technology to define a new generation of CMM for quality and production use.

ALTERA S is a multipurpose CMM with the most advanced capabilities in the compact CMM class. Innovative multi-sensor ready technology allows you to expand the capability of your CMM as your requirements change, and without expensive controller upgrades.

Specifications

Specifications

S,M,SL and SLHA Series

                                                ALTERA S               ALTERA M                      ALTERA SL                ALTERA SLHA
Volumetric accuracy from       1.8 µm + L/400         from 1.5 µm + L/375       from 1.1 µm+L/400    from 0.7 µm+L/600
Repeatability                           from 1.7 µm             from 1.5 µm                     from 0.7 µm               from 0.5 µm
Velocity                                   from 762 mm/s         from 833 mm/s                up to 850 mm/s         up to 317 mm/s
Acceleration                            from 2,306 mm/s2   from 2,514 mm/s2           up to 1,407 mm/s2     up to 566 mm/s2

Measuring Volumes

7.5.5    8.7.6     10.10.8
            10.7.6   12.10.8
            15.7.6   15.10.8
            20.7.6   20.10.8
            25.7.6   25.10.8

Altera M-Series

The ALTERA M range of performance CMMs deliver exception throughput and enhanced precision to the heart of your production. Exclusively designed for high speed tactile probe scanning and laser scanner applications, ALTERA M is the preferred choice for automotive and aerospace OEMs and other manufacturers of performance critical components.

Specifications

Specifications

S,M,SL and SLHA Series

                                                ALTERA S               ALTERA M                      ALTERA SL                ALTERA SLHA
Volumetric accuracy from       1.8 µm + L/400         from 1.5 µm + L/375       from 1.1 µm+L/400    from 0.7 µm+L/600
Repeatability                           from 1.7 µm             from 1.5 µm                     from 0.7 µm               from 0.5 µm
Velocity                                   from 762 mm/s         from 833 mm/s                up to 850 mm/s         up to 317 mm/s
Acceleration                            from 2,306 mm/s2   from 2,514 mm/s2           up to 1,407 mm/s2     up to 566 mm/s2

Measuring Volumes

8.7.6       10.10.8      10.12.10      15.15.10      20.15.12      20.15.15      25.20.15
10.7.6     15.10.8      15.12.10      20.15.10      25.15.12      25.15.15      30.20.15
15.7.6     20.10.8      20.12.10      25.15.10      30.15.12      30.15.15      35.20.15
               25.10.8      25.12.10      30.15.10      35.15.12      35.15.15      40.20.15
               30.10.8      30.12.10      35.15.10      40.15.12      40.15.15      45.20.15
               35.10.8      35.12.10      40.15.10      45.15.12      45.15.15      50.20.15
               40.10.8      40.12.10      45.15.10      50.15.12      50.15.15      60.20.15
               45.10.8      50.12.10      50.15.10      60.15.12      60.15.15      65.20.15
                                 60.12.10      60.15.10      70.15.12      70.15.15      70.20.15
                                 70.12.10      70.15.10

Altera SL-Series

The ALTERA SL series of ultra-high accuracy CMMs achieve sub-micron* accuracy. Drawing on over 50 years of LK CMM experience, the ALTERA SL has been optimized for the most challenging tasks and highest precision. The innovative short-leg bridge design increases accuracy to the highest level for metrology laboratory equivalent measurement uncertainty.

Specifications

Specifications

S,M,SL and SLHA Series

                                                ALTERA S               ALTERA M                      ALTERA SL                ALTERA SLHA
Volumetric accuracy from       1.8 µm + L/400         from 1.5 µm + L/375       from 1.1 µm+L/400    from 0.7 µm+L/600
Repeatability                           from 1.7 µm             from 1.5 µm                     from 0.7 µm               from 0.5 µm
Velocity                                   from 762 mm/s         from 833 mm/s                up to 850 mm/s         up to 317 mm/s
Acceleration                            from 2,306 mm/s2   from 2,514 mm/s2           up to 1,407 mm/s2     up to 566 mm/s2

Measuring Volumes

8.7.6        10.10.8      15.12.10      25.15.10      20.15.15      25.20.15
10.7.6      15.10.8      20.12.10                          25.15.15
15.7.6      20.10.8      25.12.10
                25.10.8
