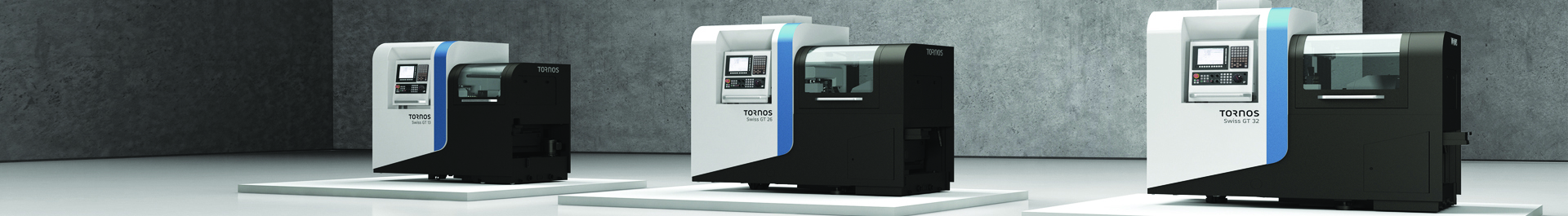

Tornos

Swiss Type Turning Center

CT 20 – with C Axis

Powerful, robust bar turning machine.

​Main advantages:

  • Highly rigid and stable cast iron frame
  • Modular tooling system
  • Powerful spindles and drives
  • Quick, easy configuration
  • Intuitive
  • ISO programming

Specifications

Specifications

Main spindle
Max bar diameter 20mm
Spindle speed 8000rpm
Spindle drive power 2,2kw
Max number of turning tools 6
Turning tool section 12x12
Max drilling diameter Ø 10mm (ER 16)
Max tapping diameter M8 (ER16)
Max radial drilling diameter Ø7
Max. number of front tools 5
Cross-rotating tools 4 max.
Cross-rotating tool speed 8000rpm
Cross drive power 1kw
Counterspindle
Max bar diameter 20mm
Max parts length 80mm
Ejector stroke 80mm
Spindle speed 8000rpm
Spindle drive power 1,5kw
C-axis yes


Swiss ST 26

The high-performance swiss type lathe.

Main advantages

  • The most powerful motors in its category
  • Option to work with or without guide bush
  • Modular tool systems ensure excellent flexibility

Specifications

Specifications

Main Spindle (headstock) (Z1 / S1 / C1)
Maximum bar capacity 23mm
Standard part length with a rotating guide bushing 220mm
Max. rpm of the spindle 10000rpm
Spindle output  9,5kw
Max constant torque Nm 17
Drilling capacitity in free machining steel  10mm
Tapping capacity in free machining steel M10
Tool platen (X1 /Y1 / S2) (X2 /Y2)
Number of tool positions in main operations 18
Number of positions for rotating tools 8
Max rpm of the rotating tools 6000rpm
Output of the rotating tools 0.75kw
Drilling capacitity in free machining steel 8mm
Tapping capacity in free machining steel M6
Counter spindle (X4 / Z4 / S4 / C4)
Maximum bar capacity 23mm
Max. rpm of the spindle 0 - 10 000 t/min

Swiss Nano

  • The highest precision on the market
  • Unique kinematics enabling turning, drilling, cutting/deburring and roughing/finishing operations
  • Excellent accessibility for easy setting operations
  • Horological standard precision
  • Fixed/rotating guide bush or operation without guide bush
  • Minimal footprint: 1.1m in front of the machine with bar feeder and width 0.65m

Specifications

Specifications

Maximum diameter 4mm
Number of linear axes 6
Number of C axes 2
Number of independent tool systems 2
Total number of tool positions 12
Position for rotating tools 2

Swiss GT series

  • Ergonomic and modular
  • Operation with or without guide bush
  • B axis (option)
  • Modular tooling system on rear platten
  • Attractive price
  • Simple to set/adjust
  • Quality and precision

Specifications

Specifications

Maximum diameter 25.4mm
Number of linear axes 6
Number of C axes 2
Number of independant tool systems 2
Total number of tool positions 40
Position for rotating tools 14
