5-Axis Machining Centers

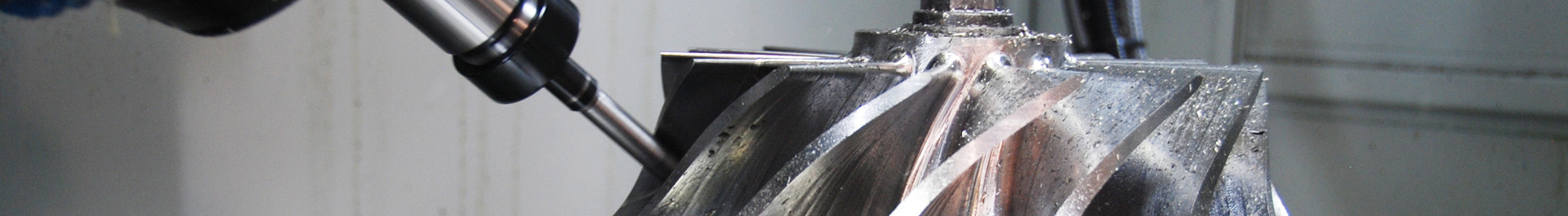

The term ‘5-axis’ refers to the number of directions in which the cutting tool can move. On a 5-axis Machining Center, the cutting tool moves across the X, Y and Z linear axes as well as rotating on the A and B axes to approach the workpiece from any direction. This allows you to process five sides of a part in a single setup. 5-axis machining provides infinite possibilities as to the part sizes and shapes you can effectively process.

V-20iT

  • Available as 4+1 or 5-axis simultaneous configurations
  • High Torque 17/22kw spindle motor (Siemens)
  • Fully enclosure guarding
  • Auger Type Chip conveyor (Chain Type Opt.)
  • LED Lighting
  • Coolant Gun
  • Coolant Through Spindle 25BAR (Grundfos)
  • Remote MPG with emergency stop
  • Base Flushing System
  • Lubrication system
  • Leveling screws and pads
  • Maintenance tool box
  • 10000rpm spindle (Ceramic Bearing)
  • Options of 8000rpm Steel Bearing , 12000rpm Ceramic Bearing Spindes
  • Available with Siemens 828D, Siemens 840Dsl and Fanuc

Specifications

Specifications

X axis travel 510mm
Y axis travel  350mm
Z axis travel 410+110mm
Table size 600x350mm
Spindle speeds 8000rpm
Spindle motor 11kw

Video

Video

V-30iT

This versatile V-30iT features an 8.07 diameter integrated trunnion rotary table that holds a load of up to 35 kgs from 0-45 degrees and 25 kgs in the 60-90 degree range. The rotary tabletop surface is precision ground with 10mm T-slots. The included standard flat worktable measures 300 x 450mm and can be removed for any custom fixture required by the application.

Specifications

Specifications

• Rigid cross roller linear ways in XYZ-axis

• X-axis travel 800mm

• Y-axis travel 460mm

• Z-axis 390mm

• 48m/m rapids in X- and Y-axis

• 36m/m rapids in the Z-axis

Video

Video

V-30iF

Specifications

Specifications

• X-axis travel 800mm
• Y-axis travel 460mm
• Z-axis travel 510mm
• Distance from table(pallet) top to spindle 100-610mm
• Distance from column front to spindle center 510mm
• Table size 860x450mm
• Permissible mass of workpiece 300kg
• Table working surface configuration 18Tx125x3
• Height from floor to table top 832mm
• Spindle speeds 10000min-1

Video

Video

V-40iT

  • Available as 4+1 or 5-axis simultaneous configurations
  • Built-in Trunion Type
  • High Torque 17/22kw spindle motor (Siemens)
  • Fully enclosure guarding
  • Auger Type Chip conveyor (Chain Type Opt.)
  • LED Lighting
  • Coolant Gun
  • Coolant Through Spindle 25BAR (Grundfos)
  • Remote MPG with emergency stop
  • Base Flushing System
  • Lubrication system
  • Leveling screws and pads
  • Maintenance tool box
  • 10000rpm spindle (Ceramic Bearing)
  • Options of 8000rpm Steel Bearing , 12000rpm Ceramic Bearing Spindes
  • Available with Siemens 828D, Siemens 840Dsl and Fanuc

Specifications

Specifications

X Axis Travel 846mm
Y Axis Travel 635mm
Z Axis Travel 438mm
Pallet Size (LXW) 350mm dia
Spindle Speed 10 000rpm
Rapid Traverse 36m/min
Spindle Motor 17/22kw
Automatic Tool Changer Arm
Tool Shank BT-40
Tool Storage Capacity 24

Video

Video

V-60iT

  • Available as 4+1 or 5-axis simultaneous configurations
  • Built-in Trunion Type
  • High Torque 17/22kw spindle motor (Siemens)
  • Fully enclosure guarding
  • Auger Type Chip conveyor (Chain Type Opt.)
  • LED Lighting
  • Coolant Gun
  • Coolant Through Spindle 25BAR (Grundfos)
  • Remote MPG with emergency stop
  • Base Flushing System
  • Lubrication system
  • Leveling screws and pads
  • Maintenance tool box
  • 10000rpm spindle (Ceramic Bearing)
  • Options of 8000rpm Steel Bearing , 12000rpm Ceramic Bearing Spindes
  • Available with Siemens 828D, Siemens 840Dsl and Fanuc

Specifications

Specifications

X axis travel 1270mm
Y axis travel 760mm
Z axis travel 680mm
Table size 630mm
Spindle speed 10000rpm
Spindle motor 26kw
Tool storage capacity 24

Video

Video

BC-600

New to the Leadwell range, this machine is equipped with all the necessary options to deliver precision, high speed 5-axis machining. The machine comes as standard with linear scales and offers a full B axis and an integrated C axis table, providing complete flexibility.

The Leadwell BC-600 represents the latest and greatest in technology now available in 5-axis machining, this 5-axis machining centre not only offers a B axis rotary head but also an in-built rotary table for complete flexability to machine any work piece. The leadwell BC-600 uses a Heidenhain controller that is reknowned for being one of the preferable controllers for 5-axis machining. The advantage of this type of machine is that you can also use it as a normal 3-axis machining centre by not using the rotary table.

The features of the Leadwell BC-600 include a table size of 1280 x 610mm, direct drive design provides backlash free movement, 5-axis simultaneous machining, X axis travel of 1100mm, Y axis travel of 610mm, Z axis vertical travel of 610mm, Z axis horizontal travel of 790mm and an embedded removable rotary table of 600mm diameter.

The Leadwell BC-600 has rapid feed rates of 36/36/30 m/min, a spindle speed of 15,000 rpm, a spindle motor of 18.5 kW, programme storage up to 21 GB, a low backlash swivel head, B-axis with standard optical scale and tool storage of 40 tools.

Specifications

Specifications

• X-Axis Travel: 1100mm
• Y-Axis Travel: 610mm
• Z-Axis Vertical Travel: 610mm
• Z-Axis Horizontal Travel: 790mm
• No counterweight design and cone column provides smooth movement and reduces headstock weight enhancing performance.
• Embedded removable rotary table: 600mm diameter
• Rapid feed rate: 36/36/30
• Spindle Speed: 15,000 rpm
• Spindle Motor: 18.5 Kw

Video

Video

BC-700

High Rigidity:
• FEA Analysis
• Rigid structure design
• Dual nuts ball screw design in X/Y axis
• Rotary table use DD motor
• Roller type guide way (X/Y/Z axis)
• Embedded rotary table design
High Reliability:
• Roller type motion system
• Ball screw bearing lubrication system design
• Dual chip auger
• Three axis optical scale
• Rotary table compensaion adjustment system
• Dynamic collision monitoring system
• Moveable ATC design
High Efficiency:
• Rapid feed rate 36/36/30 mm
• Spindle speed 15,000 rpm
• 5-axis machining simultaneously



Specifications

Specifications

• X axis travel: 1300mm
• Y axis travel: 610mm
• Z axis travel(Vertical/Horizontal): 610/750mm
• Table size (LxW): 1,480x610mm
• Spindle speeds: 15,000rpm
• Spindle motor: 18.5kw
• Tool storage capacity: 30Pcs



Video

Video

BC-800

High Rigidity:
• FEA Analysis
• Rigid structure design
• Dual nuts ball screw design in X/Y axis
• Rotary table use DD motor
• Roller type guide way (X/Y/Z axis)
• Embedded rotary table design
High Reliability:
• Roller type motion system
• Ball screw bearing lubrication system design
• Dual chip auger
• Three axis optical scale
• Rotary table compensaion adjustment system
• Dynamic collision monitoring system
• Moveable ATC design
High Efficiency:
• Rapid feed rate 36/36/30 mm
• Spindle speed 15,000 rpm
• 5-axis machining simultaneously



Specifications

Specifications

• X axis travel: 1520mm
• Y axis travel: 760mm
• Z axis travel(Vertical/Horizontal): 720/800mm
• Table size (LxW): 1700x650mm
• Spindle speeds: 15,000rpm
• Spindle motor: 18.5kw
• Tool storage capacity: 30Pcs

Video

Video

MU-450

Vertical Spindle 5 axis machining center with X, Y, Z moving column design over B and C axis rotary table.

Optimized floor space with the added benefit of lower table loading.

Control configurations: Cost effective 4+1 and simultaneous 5 axis

Specifications

Specifications





Video

Video

MU-650

Vertical Spindle 5 axis machining center with X, Y, Z moving column design over B and C axis rotary table.

Optimized floor space with the added benefit of lower table loading.

Control configurations: Cost effective 4+1 and simultaneous 5 axis

Specifications

Specifications

• X/Y/Z Axis Travel: 620/520/460
• Table Size(LxW): 650 Dia.
• Spindle Speeds: 12krpm Direct Drive
• Spindle Motor: 11kw
• Spindle Motor: 15HP
• Tool Shank: BT-40/BBT40
• Tool Storage Capacity: 30/40

Video

Video

Mycenter-4XT

Mycenter-4XT

  • Built-in 4th/5th Axis Trunnion Table
  • Rigid solid box guideways incorporate a unique 4-slideway base construction for optimum rigidity
  • High speed rapids of 1417ipm (X, Y & Z) boosts work throughput
  • High speed 15,000rpm, 35HP, Dual Contact Spindle
  • Standard base wash system, internal chip augers and scraper type chip conveyor
  • Plumbed for coolant thru the spindle (220psi/1000psi option)
  • Affordably priced and feature packed!

Specifications

Specifications

Rotary Table Size  400mm
w/Full Table Length  365x600mm
Travel (X, Y, Z) 800x610x510mm
Spindle Taper NST No. 40
Spindle Speed  15,000rpm
Tool Storage Capacity 30 Pcs
Tool Change Time (T-T/C-C) 2.5 Sec/7.0 Sec
Rapid Feed (X, Y, Z) 36m/min
Power Requirement  35KVA

Video

Video

Mytrunnion-4G

Mytrunnion-4G

  • Ideal for ultra-high precision simultaneous 5-axis machining
  • Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
  • Sliding overhead door allows for easy workpiece loading/unloading
  • Powerful #40, 15,000rpm, 15HP Direct Drive, Dual Contact Spindle. Optional HSK-A63 Spindle Configuration available
  • Linear Scale Feedback on all Axes
  • Expansive 21.7"Dia. x 15.7"H (550 x 400mm) work envelope beats the competition
  • Highest grade meehanite cast iron construction for superior vibration absorption and improved surface finishes

Specifications

Specifications

Table Size: 15   400mm round dia, 550mm round dia opt.
Travel (X, Y, Z) 610x610x500mm
Travel (A, C) -120~+30 deg/0~360 deg
Spindle Taper NST No. 40
Spindle Speed 40~20,000rpm
Tool Storage Capacity 50Pcs
Tool Change Time (T-T/C-C) 5.9 Sec/9.4 Sec
Rapid Feed (X, Y, Z) X&Y 50m/min Z- 25m/min
Rapid Feed (A, C) 18,000 deg/min (50rpm)
Power Requirement 45KVA

Video

Video

Mytrunnion 5

• Ideal for ultra-high precision simultaneous 5-axis machining
• Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
• Sliding overhead door allows for easy workpiece loading/unloading
• Powerful 4-step geared spindle delivers high torque and high speed for maximum machining flexibility
• Linear scale feedback on all axes, A & B axis rotary scales
• Highest grade meehanite cast iron construction with solid box ways

Specifications

Specifications

Table Size: 630mm dia.
Travel (X, Y, Z):                                               815 x 745 x 500mm
Travel (A, C): -30~+120 deg. /0~360 deg.
Spindle Taper: NST No. 40
Spindle Speed: 20~20,000rpm
Tool Storage Capacity: 50 Pcs. (100 Opt.)
Tool Change Time (T-T/C-C): 2.5 Sec. /5.0 Sec.
Rapid Feed (X, Y, Z): 50m/min X & 25m/min Z
Rapid Feed (A, C): 2,000 deg. /min, 6,000 deg. /min
Power Requirement: 45KVA

Video

Video

Mytrunnion-7G

• Vertical 5-Axis machining center, ideal for large capacity, high precision Aerospace applications
• Positioning Accuracy: ±0.000079” Full Stroke, Repeatability: ±0.000039”
• Full 5-axis simultaneous capabilities
• Best performance, high output #50, 12,000rpm, gear driven dual contact spindle
• Linear Scale Feedback on all Axes
• Highest grade meehanite cast iron construction for superior vibration absorption and improved surface finishes
• Zero backlash roller cam style 4th/5th axis rotary table
• High speed rapid feed rates 1,969ipm (X, Y), 1,181 (Z) Super-fast for a machine of this size

Specifications

Specifications

Table Size: 1,000mm round dia.
Travel (X, Y, Z): 1,190 x 1,335 x 765mm
Travel (A, C): -120~+30 deg. /0~360 deg.
Spindle Taper: NST No. 50
Spindle Speed: 35~12,000rpm (8,000rpm Opt.) – Gear Drive, 4-Step
Tool Storage Capacity: 100 Pcs.
Tool Change Time (T-T/C-C): 3.3 Sec. /9.7 Sec.
Rapid Feed (X, Y, Z): 50m/min X/Y x 1,181ipm 30m/min Z
Power Requirement: 65KVA
