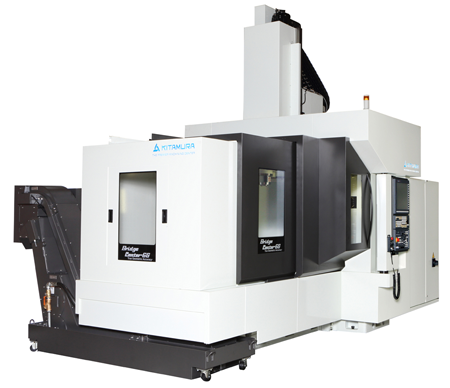

Bridgecenter -6G #40

CNC Bridge Type

Bridgecenter -6G #40

Table Size 900 x 1,800mm
Travel (X, Y, Z)  1,530x1,095x710mm
Spindle Taper NST No. 40
Spindle Speed 15,000rpm
Tool Storage Capacity 40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C) 2.8sec/9sec
Rapid Feed (X, Y, Z)  24m/min
Power Requirement  35KVA
  • Ideal for parts requiring heavier cutting loads, as well as parts that require a higher level of precision and accuracy
  • Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
  • Rigid Meehanite cast iron construction with solid box ways
  • #40, High Speed 15,000rpm, Dual Contact, Direct Drive Spindle
  • Double column design provides expansive work envelope and superior rigidity
  • Linear scale feedback in X, Y, Z axes
  • Space saving footprint takes up only 166 total square feet
  • 6,600Lb table capacity for heavy duty cutting of molds to high accuracy cutting of precise parts
