A Coordinate Measuring Machine (CMM) is a device used for measuring the geometric characteristics of an object. CMM's are either controlled manually by an operator or via computer. Measurements are defined by a probe attached to the third moving axis of this machine. Probes may be mechanical, optical, laser, or white light, amongst others. A machine which takes readings in six degrees of freedom and displays these readings in mathematical form is known as a CMM.

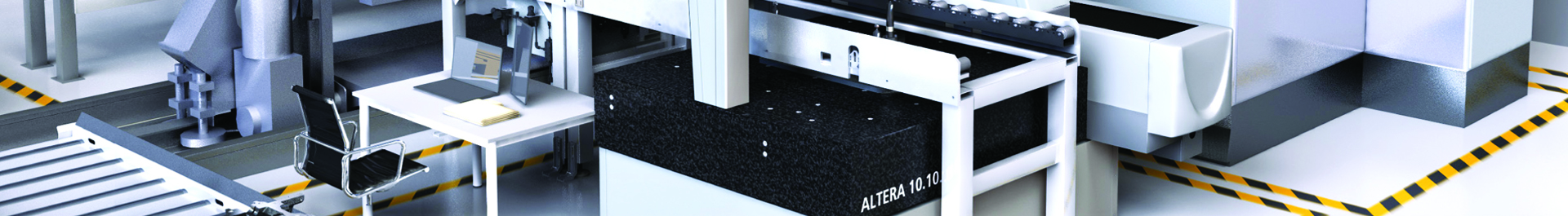

Altera CMM

Nikon Metrology’s range of premium quality ALTERA CMM’s have been refined to meet the varying needs of manufacturers, both now and in the future.

Advanced multi-sensor ready technology optimizes CMM throughput and provides the opportunity to broaden the application scope to new materials and components as customer needs change, without additional wiring or controllers.

Innovative work-flows and intuitive software features make light work of complex inspection tasks, while boosting CMM productivity and providing manufacturers with a clear and efficient understanding of product conformance.

The superior ceramic design, with near perfect stiffness-to-weight ratio and greater resistance to temperature shifts, provides exceptional and enduring performance across all manufacturing environments. As a result, Nikon Metrology is the only CMM manufacture to guarantee the original accuracy specification of its CMMs for a period of 10 years†.

Benefits

  • Best-in-class performance
  • Future proof multi-sensor capability
  • Suitable for any production environment
  • Unique 10 year original accuracy guarantee



Brochure

Brochure

PDF icon Altera_ENG.pdf

Specifications

Specifications

Altera 7.5.5
Overall
L 1573mm
W 1257mm
H 2505mm

Travel
X 711mm
Y 508mm
Z 508mm

Clearance
CY 709mm
CZ 624mm

Table
TT 150

Inserts
HX 95mm
HY 232mm

Max.Load  256Kg
Max Weight  637Kg





Altera 10.7.6
Overall
L 1876mm
W 1460mm
H 2705mm

Travel
X 1016mm
Y 711mm
Z 610mm

Clearance
CY 910
CZ 724

Table
TT 175

Inserts
HX 121.5
HY 185

Max.Load  514 Kg
Machine Weight 1029 Kg





Altera 15.10.8
Overall
L 2384mm
W 1765mm
H 2985mm

Axis Stroke
X 1524mm
Y 1016mm
Z 813mm


Workpiece Max. Weight 1380Kg
CMM Weight 2289Kg




Altera 40.15.15
Overall
L 5452mm
W 2595mm
H 4575mm

Travels
X 4064mm
Y 1524mm
Z 1524mm

Granite Table
TX 4380mm
TT 550mm
TH 760mm
HX 190mm
HY 285mm

Floor
F 205mm

Table Loading
Std. 4194mm
Max.  4600mm

CMM Weight 14913 Kg





Video

Video

ALTO

Features

  • Easy-to-learn user interface and workflow
  • Efficient Click-&-Measure inspection routines
  • Walk-in metrology for quick dimensional checks
  • Virtual simulation and real-time path verification
  • DMIS part program support

Specifications

Specifications

 Alto 5.4.4
Measuring Stroke
X 500mm
Y 400mm
Z 440mm

Overall Dimension
Width  929 mm
Length  888 mm
Height 2411mm

Weight
Max.part 300Kg
Machine 300Kg





 Alto 6.5.4
Measuring Stroke
X 600mm
Y 500mm
Z 440mm

Overall Dimension
Width  1044mm
Length  1018mm
Height  2411mm

Weigth
Max.part  300Kg
Machine  390Kg
