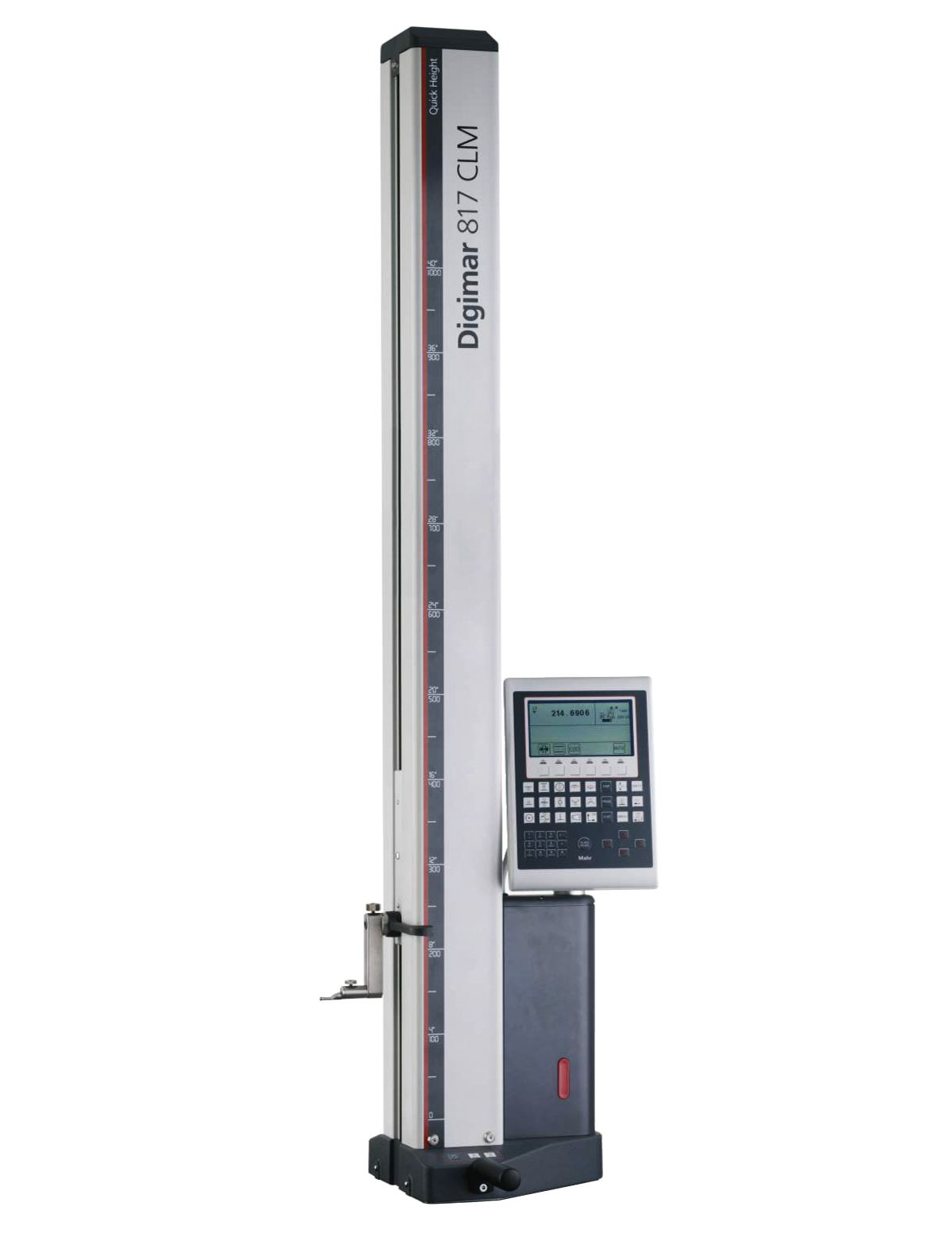

Digimar 817 CLM Height Measuring Instrument
| Order no. | Measuring range mm | Measuring range inch | Resolution | Resolution | Error limit | Repeatability bores | Repeatability plane | Perpendicularity error in µm | Measuring force (N) | Product weight | Standard | Data interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4429010 |
0 - 350
|
0 - 14"
|
0.01 mm / 0.005 mm / 0.001 mm / 0.001 mm / 0 mm
|
0.001 inch / 0.001 inch / 0 inch / 0 inch / 0 inch
|
(1,8+L/600) L in mm
|
1 µm
|
0.5 µm
|
5 µm
|
1.0 +/- 0.2 N
|
25 kg
|
Factory standard
|
USB / RS232C / Wireless
|
| 4429011 |
0 - 600
|
0 - 24"
|
0.01 mm / 0.005 mm / 0.001 mm / 0.001 mm / 0 mm
|
0.001 inch / 0.001 inch / 0 inch / 0 inch / 0 inch
|
(1,8+L/600) L in mm
|
1 µm
|
0.5 µm
|
6 µm
|
1.0 +/- 0.2 N
|
30 kg
|
Factory standard
|
USB / RS232C / Wireless
|
| 4429012 |
0 - 1000
|
0 - 40"
|
0.01 mm / 0.005 mm / 0.001 mm / 0.001 mm / 0 mm
|
0.001 inch / 0.001 inch / 0 inch / 0 inch / 0 inch
|
(1,8+L/600) L in mm
|
1 µm
|
0.5 µm
|
10 µm
|
1.0 +/- 0.2 N
|
35 kg
|
Factory standard
|
USB / RS232C / Wireless
|
- Excellent accuracy and reliabilty due to the optical incremental measurement system with the double reader head
- Dynamic probing system enabling high repeatability
- Air bearings system for light and smooth movement
- Precise measuring head on stainless steel guideways
- Motorized measuring carriage simplifies measurement runs
- Probe constant remains after the instrument is switched off
- Integrated rechargeable battery with a long operating time span for power source independent measurement
- Temperature compensation with an integrated temperature sensor
- Large and clearly defined function keys
- Easy to read background lit graphic LCD-Display
- Operator guidance with self-explanatory icons / pictograms
- Operator prompts and menus are available in several languages
- Possible to set additional zero points on a work piece
- Additional measurement instruments with Opto RS232-interface can be connected
- Secure the future due to software update potential
- Automatic Stand-by switch mode
- Selectable Auto-off function, without loss of measured values
