EASY 200F

Laser Marking

EASY 200F

Average Output Power 6/10/20/40W
Wave Length (nm) 1064/1064/1070/1070
LASER TECHNOLOGY Nd:YAG     or Yb
Repetition Rate Range 20/1-100/2-200/1-1000KHz
Pulse Width 30/35/200/10-240ns
Max Pulse Energy 0,3/0,7/0,8/1,25mj
M2 ≤ 1,8/1,8/1,5/3
Beam spot diameter f160 20/20/20/30μm
Guide Laser Class 2M Red Laser Diode; λ=650 nm; 2mW
Temperature Range Operative 10°C to 35°C
Cooling System Forced-aired cooling
Z axis stroke 290mm
4th axes Optional
Power supply 0,8 KW - 230V 50/60Hz 1ph
Weight and dimensions 85kg, 560x760x850

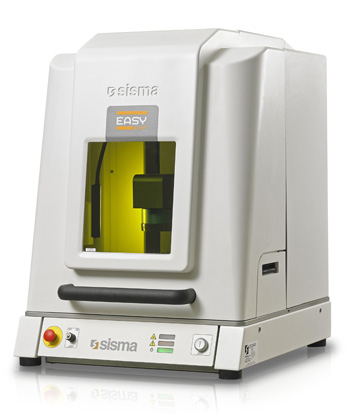

Innovative ‘all in one’ laser marking system characterized by a great flexibility of use and equipped with a Z motorized axis at high precision and speed. Machine with a large sight glass and LED internal lighting. Available in 1st class closed version and 4th class open version with six ranges of power: 6W, 10W, 20W, 30W, 40W and 50W.
