MarTest 800 SGL Test Indicator - Standard Version

MarTest Test Indicators

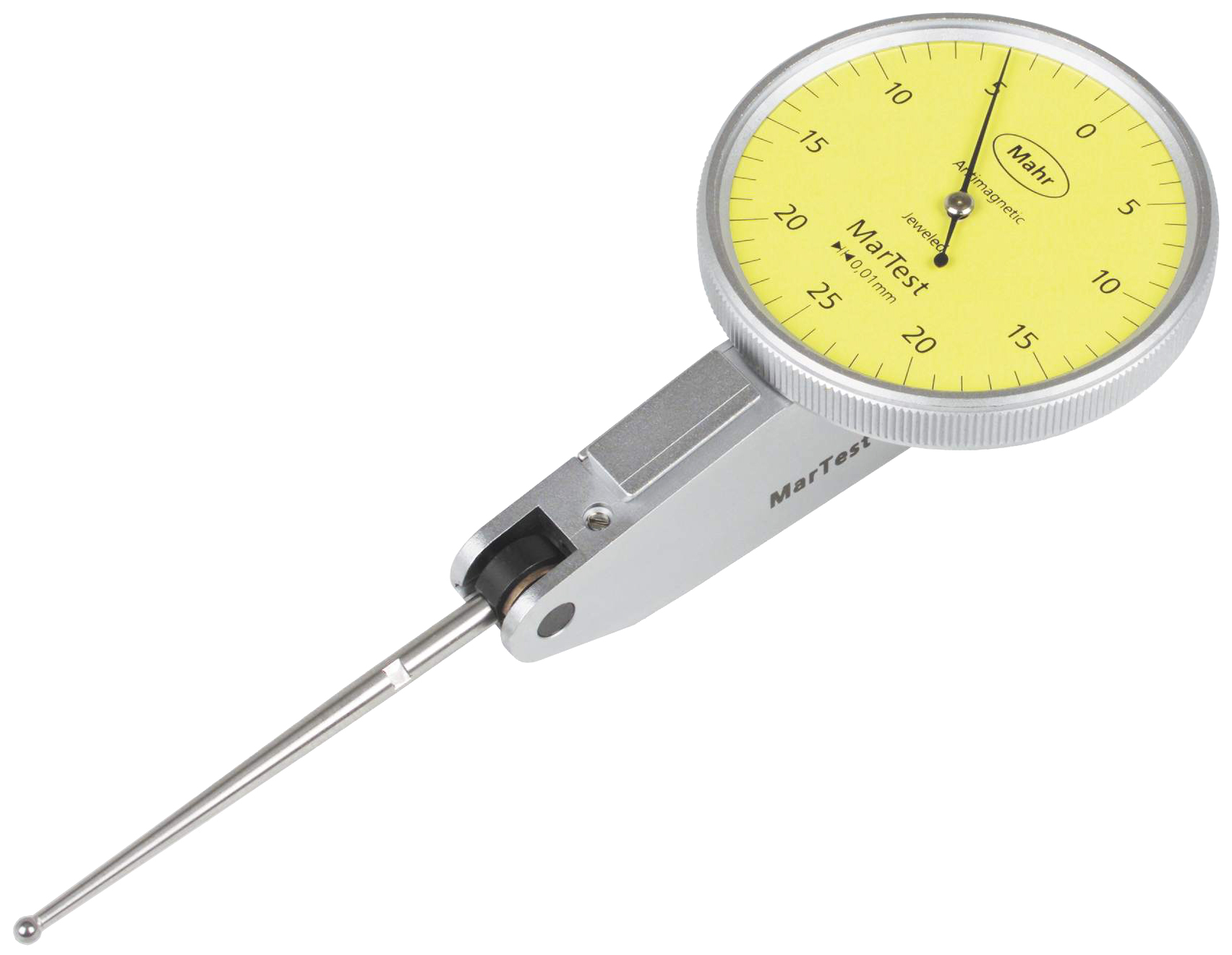

MarTest 800 SGL Test Indicator - Standard Version

Order no. Product type Measuring range mm Graduation value mm Type of dial face Range per rev. in mm Span of error fe (µm) Total span of error fges (µm) Hysteresis fu (µm) Partial measuring range ft (µm) Repeatability fw (µm) Standard Measuring force Scale diameter Dial color
4301300
800 SGB
± 0.5
0.01 mm
50-0-50
1 mm
10 µm
13 µm
4 µm
5 µm
3 µm
Factory standard
0.07 N
38 mm
Yellow
4306200
800 SL
± 0.25
0.01 mm
25-0-25
0.5 mm
10 µm
13 µm
5 µm
5 µm
3 µm
Factory standard
0.07 N
27.5 mm
Yellow
4306250
800 SGL
± 0.25
0.01 mm
25-0-25
0.5 mm
10 µm
13 µm
5 µm
5 µm
3 µm
Factory standard
0.07 N
38 mm
Yellow




  • - High-contrast dial face, sealed with O-ring
  • - Mineral glass viewing panel for best protection: Against cracking, scratching or damage caused by hot shavings. Optimum resistance to solvents
  • - Matt chrome-plated protective casing with three integrated dovetail guide rail
  • - Shockproof measuring mechanism
  • - Anti-magnetic model
  • - Automatic adjustment to the contacting direction ensuring infallible readings
  • - Ball bearing mounted double lever
  • - Friction clutch overload protection
