MarTest Test Indicators

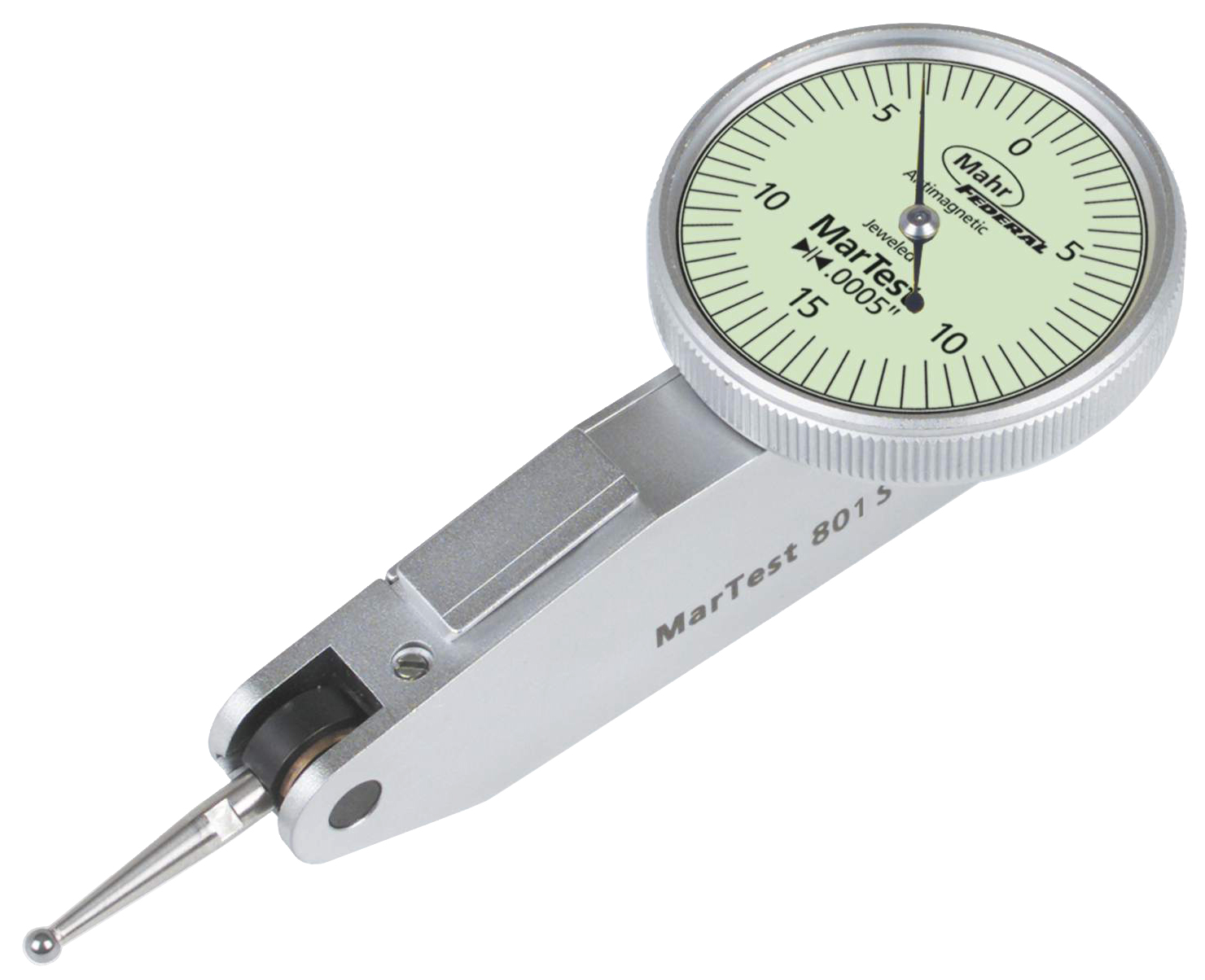

MarTest 801 S Test Indicator
| Order no. | Product type | Measuring range mm | Measuring range inch | Graduation value inch | Graduation value mm | Type of dial face | Range per rev. in mm | Pointer rotation (inches) | Deviation range fe (inches) | Total deviation range fges (inches) | Measuring value hysteresis fu (inches) | Partial measuring range ft (inches) | Repeatability fw (inches) | Standard | Measuring force | Scale diameter (inches) | Dial color | Set included |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4305950 |
801 S
|
|
± .015"
|
.0005"
|
|
15-0-15
|
|
.03"
|
.0004"
|
.0005"
|
.00012"
|
.0002"
|
.0001"
|
Factory standard
|
0.15 N
|
1.1"
|
Green
|
|
| 4305960 |
801 S1
|
|
± .015"
|
.0005"
|
|
15-0-15
|
|
.03"
|
.0004"
|
.0005"
|
.00012"
|
.0002"
|
.0001"
|
Factory standard
|
0.15 N
|
1.5"
|
Green
|
|
| 4307950 |
801 SG
|
|
± .015"
|
.0005"
|
|
15-0-15
|
|
.03"
|
.0004"
|
.0005"
|
.00012"
|
.0002"
|
.0001"
|
Factory standard
|
0.15 N
|
1.1"
|
Green
|
|
| 4307960 |
801 SR
|
|
± .030"
|
.0005"
|
|
15-0-15
|
|
.03"
|
.0004"
|
.0005"
|
.0002"
|
.0002"
|
.0001"
|
Factory standard
|
0.15 N
|
1.5"
|
Green
|
|
| 4307970 |
801 SGI
|
± 0.3
|
± .015"
|
.0005"
|
0.01 mm
|
15-0-15
|
0.6 mm
|
.03"
|
.0004"
|
.0005"
|
.00012"
|
.0002"
|
.0001"
|
Factory standard
|
0.15 N
|
1.5"
|
Green
|
|
| 2015311 |
801 SGI
|
± 0.3
|
± .015"
|
.0005"
|
0.01 mm
|
15-0-15
|
0.6 mm
|
.03"
|
.0004"
|
.0005"
|
.00012"
|
.0002"
|
.0001"
|
Factory standard
|
0.15 N
|
1.5"
|
Green
|
holding bar HB-2157 / clamp CP-2199
|
| 2015316 |
801 S
|
|
± .015"
|
.0005"
|
|
15-0-15
|
|
.03"
|
.0004"
|
.0005"
|
.00012"
|
.0002"
|
.0001"
|
Factory standard
|
0.15 N
|
1.1"
|
Green
|
holding bar HB-2157 / clamp CP-2199
|
| 2015317 |
801 S1
|
|
± .015"
|
.001"
|
|
15-0-15
|
|
.03"
|
.0004"
|
.0005"
|
.00012"
|
.0002"
|
.0001"
|
Factory standard
|
0.15 N
|
1.5"
|
Green
|
holding bar HB-2157 / clamp CP-2199
|
| 2015318 |
801 SG
|
|
± .015"
|
.0005"
|
|
15-0-15
|
|
.03"
|
.0004"
|
.0005"
|
.00012"
|
.0002"
|
.0001"
|
Factory standard
|
0.15 N
|
1.5"
|
Green
|
holding bar HB-2157 / clamp CP-2199
|
| 2015350 |
801 SR
|
|
± .030"
|
.0005"
|
|
15-0-15
|
|
.03"
|
.0004"
|
.0005"
|
.00016"
|
.0002"
|
.0001"
|
Factory standard
|
0.15 N
|
1.5"
|
Green
|
holding bar HB-2157 / clamp CP-2199
|
- - High-contrast dial face, sealed with O-ring
- - Mineral glass viewing panel for best protection: Against cracking, scratching or damage caused by hot shavings. Optimum resistance to solvents
- - Matt chrome-plated protective casing with three integrated dovetail guide rails
- - Shockproof measuring mechanism
- - Anti-magnetic model
- - Automatic adjustment to the contacting direction ensuring infallible readings
- - Ball bearing mounted double lever
- - Friction clutch overload protection
