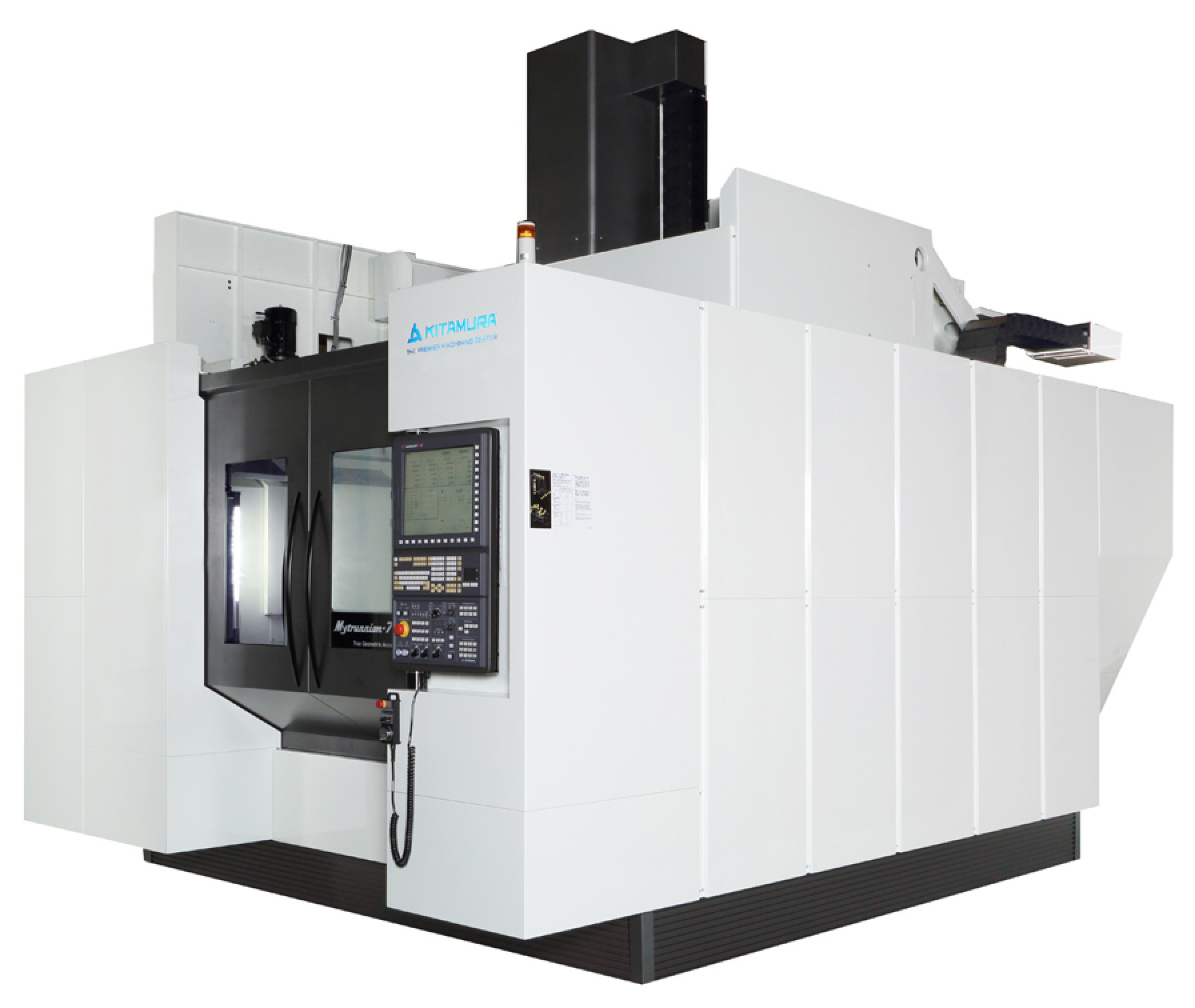

Mytrunnion-7G

5-Axis Machining Centers

Mytrunnion-7G

Table Size: 1,000mm round dia.
Travel (X, Y, Z): 1,190 x 1,335 x 765mm
Travel (A, C): -120~+30 deg. /0~360 deg.
Spindle Taper: NST No. 50
Spindle Speed: 35~12,000rpm (8,000rpm Opt.) – Gear Drive, 4-Step
Tool Storage Capacity: 100 Pcs.
Tool Change Time (T-T/C-C): 3.3 Sec. /9.7 Sec.
Rapid Feed (X, Y, Z): 50m/min X/Y x 1,181ipm 30m/min Z
Power Requirement: 65KVA

• Vertical 5-Axis machining center, ideal for large capacity, high precision Aerospace applications
• Positioning Accuracy: ±0.000079” Full Stroke, Repeatability: ±0.000039”
• Full 5-axis simultaneous capabilities
• Best performance, high output #50, 12,000rpm, gear driven dual contact spindle
• Linear Scale Feedback on all Axes
• Highest grade meehanite cast iron construction for superior vibration absorption and improved surface finishes
• Zero backlash roller cam style 4th/5th axis rotary table
• High speed rapid feed rates 1,969ipm (X, Y), 1,181 (Z) Super-fast for a machine of this size
