Renishaw Machine Tool Probing (Tool Setting )

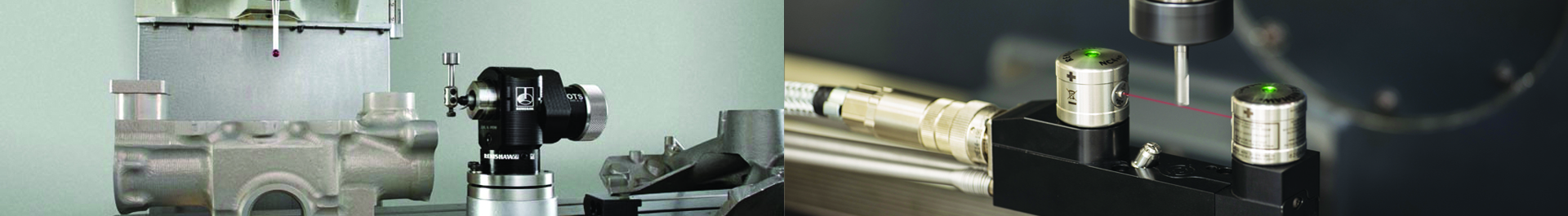

Tool Setting Probes can measure the size of tools before cutting starts, and check for tool damage or breakage during the machining operation. WD Hearn carries and range of Tool Setting Probes from Renishaw.

TS-27R Contact Tool Setter (Wired)

For tool measuring and broken tool detection on all sizes of vertical and horizontal machining centres and all gantry machining centres.

Broken tool detection
Compact 3D touch-trigger tool setter with hard-wired signal transmission used for broken tool detection and rapid measurement of tool length and tool diameter on a wide range of tools.

  • Cost-effective tool setting for all types of machining centres.
  • Proven kinematic design.
  • Interference resistant hard-wired communication.
  • 1.00 μm 2σ repeatability.



Video

Video

OTS Tool Setter (Wireless)

For tool measuring and broken tool detection on small to medium machining centres.
Compact 3D touch-trigger tool setter with optical signal transmission used for broken tool detection and rapid measurement of tool length and diameter on a wide range of tools.
Compatible with Renishaw optical modulated receivers.

  • Proven kinematic design.
  • Exceptional resistance to light interference with modulated transmission.
  • Direction-adjustable infrared optical module.
  • Cable-free for unrestricted machine movement and ease of installation.
  • 1.00 μm 2σ repeatability.



Video

Video

NC-4 ( Non-contact Laser Tool Setter )

High-precision, high-speed, non-contact tool measuring and broken tool detection on all sizes of vertical and horizontal machining centres, multi-tasking machines and all gantry machining centres. Designed for the ultimate in process tool measurement for fast accurate checking of tool wear and tool breakage detection

Precision optics:
Allows fast, non-contact tool setting and tool breakage detection on a variety of machining centres.

Available as fixed system and separate system variants, the NC4 incorporates the unique MicroHole™ protection system and the innovative fail‑safe PassiveSeal™, maintaining IPX8 environmental protection.

Precision optics are supplied as standard. These enable the compact series to achieve unsurpassed performance in a unit particularly suited to small machines and machines where space is at a premium, while separate systems allow simple installation on large machine tools with a range of up to 5 metres.

For applications using small diameter tools, the NC4+ is available, providing excellent performance with small tools and superb tool-to-tool accuracy.

  • Precise tool length and tool diameter measurement.
  • High-speed broken tool detection mode.
  • Measures and detects tools of Ø0.03 mm or larger (dependent on separation and mounting).
  • Compact design is ideal for machines where large non-contact systems are unsuitable.
  • Reliable in the harshest of environments.
  • ±0.10 μm 2s repeatability.



Video

Video
