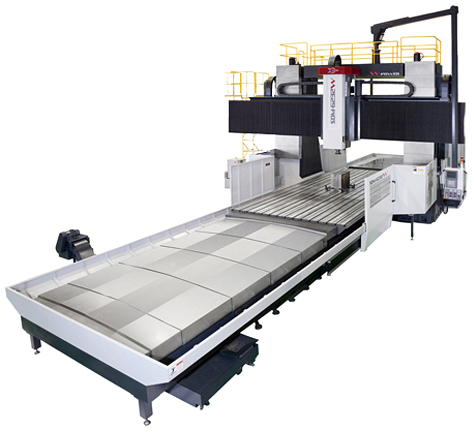

CNC Bridge Type
SDM7235W
| Table size | 6000*3000mm |
| T Slots | 22*200mm |
| Maximun Load | 24000kg |
| X Axis travel | 7200mm |
| Y Axis | 4400mm |
| Z Axis | 750mm |
| W Axis | 1100mm(1600) |
| Distance between two columns | 3500mm |
| Spindle speed | 4000rpm(6000) |
| Rapid feedrate X/Y/Z/W | 10/10/10/6m/min |
| Minimum Setting | 0.001m/min |
| Cutting Feedrate | 1-5000mm/min |
| Spindle Motor | 22kw(26) |
| Four-Axes Servo Motors (X/Y/Z/W) | 9/9/4/7x2kw |
| No. of Tools | 32 (40, 60) |
| Tool Change Time | 5.5sec |
| Max. Tool Length | 350mm |
| Max. Tool Weight | 20kg |
Sanco manufacture a full range of ruggedly constructed SDM series double column CNC machining centres designed for large mould and mould base machining. They are constructed with extra heavy duty linear guideways on X & Y axis and are available on Z axis as an option. The Z axis is hydraulically counter balanced for exceptional stability and smoothness.
Spindle & Head Options
- Spindle speed options: 4000, 6000, 8000, 10,000, 12,000, 15,000, 20,000rpm -
- dependant on spindle drive & taper configuration
- Spindle drive options: Direct drive, Direct ZF gearbox, belt driven ZF gearbox (std), inbuilt spindle motor
- Spindle taper options: BT50 (std) BT40 or HSK63A (opt)
Optional
- Automatic tool changer options (ATC)
- Milling heads (several styles available)
- Long nose spindle
- 4th Axis rotary table
- Thermal distortion compensation module
- Linear scale feedback
- Coolant through spindle (CTS)
- Work and tool measuring
- Control options: Fanuc/Siemens/Heidenhain
