ECG 1808NC Centerles Grinder

Centerless Grinding

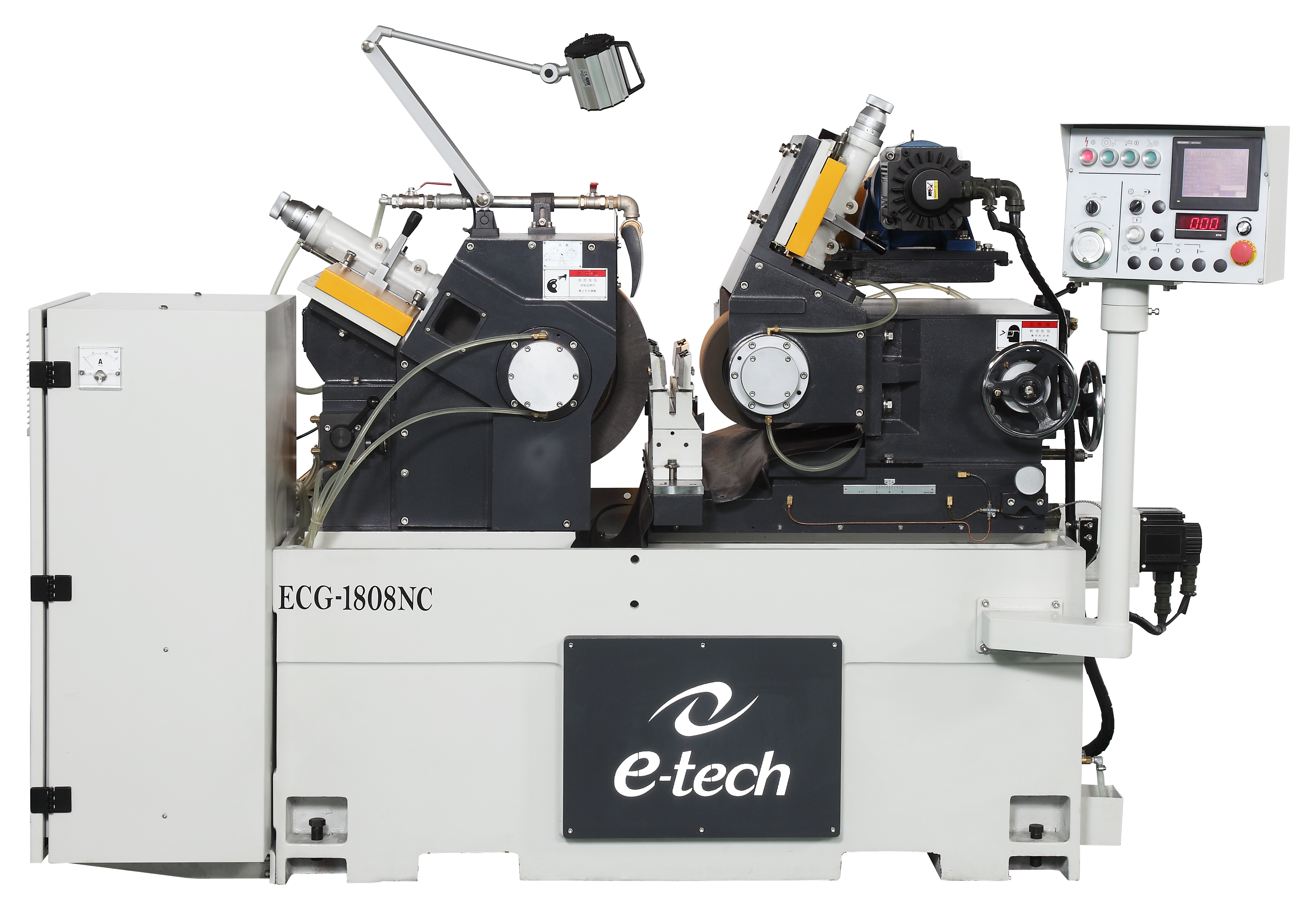

ECG 1808NC Centerles Grinder

Work diameter (w/standard workrest) 1-60mm
Work diameter (w/special workrest)  60-100mm
Auto infeed min. increment 0.001mm
Motor rated power 11(Opt.15)kw
Spindle circumferential speed  2000m/min
Dressing infeed servo motor  (X, opt) 0.75kw
Dressing traverse servo motor (Y, opt) 0.75kw
Regulating wheel motor  3kw
Spindle speed (infinite variable)  10-300rpm
Dressing infeed servo motor (X1, opt) 0.75kw
Dressing traverse servo motor  (Y1, opt) 0.75kw
Lower slide infeed servo motor (Z) 3kw
Regulating wheel infeed servo motor  (Z1, opt) 2kw
Swivelling angle (L/R)  ±5˚
Min. infeed unit 0.001mm
Inclining angle (F/R) +5˚ ~ -3˚deg
Hydraulic motor 0.75kw

e-tech’s ECG series high precision centerless grinder is different from other competitors. We use spectrum analyzer to precisely analyze the machine base inner ribs and casting thickness for greater rigidity. We offer hydrodynamic alloy bearing spindle with best rotation accuracy which is suitable for heavy duty task and drastically increase the spindle’s life.
