CNC Oil Mist Collectors
AOF AF40P Oil Mist Filter
| Model | Power (Kw) | Airflow (m3/h) | Noise (DBA) |
Weight (Kg) |
Inlet Dia (Mm) | Machine Volume (M3) |
| AF10P | 0.2 | 660 | 60 | 39 | 150 | <4 |
| AF20P | 0.4 | 1140 | 66 | 42 | 150 | <12 |
| AF30P | 0.75 | 1860 | 68 | 66 | 200 | <18 |
| AF40P | 1.15 | 2340 | 70 | 78 | 250 | <24 |

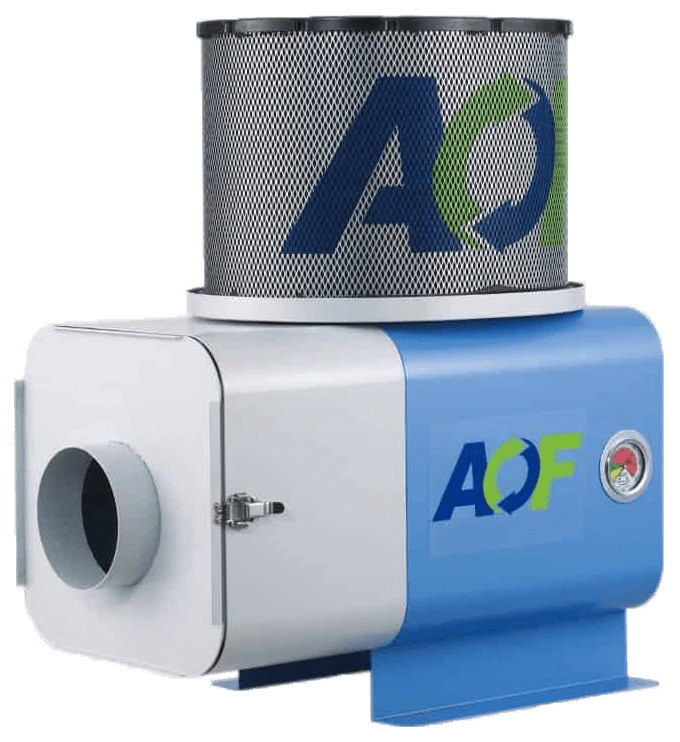

The AOF System is a machine-mounted oil mist filter, designed for attachment to most machine tools.
Within the AOF range, we offer units ranging in airflow from 660 to 2340m3/h, allowing the units to handle up to mid-range machine tools with ease.
AOF systems are supplied complete with everything needed for installation; including flexible ducting, pre- and after-filter, anti vibration mounts, and fixings.
- Compact, machine mount unit - small footprint
- Easy access for filter changes
- Up to 2400m3/h nominal airflow
- Designed for machine tools with open areas up to 24m2.
- 415 or 230v 3 phase supply
- 100-250mm clipped duct outlet
- Independent power supply or wired to your machine tool
