Video Measuring

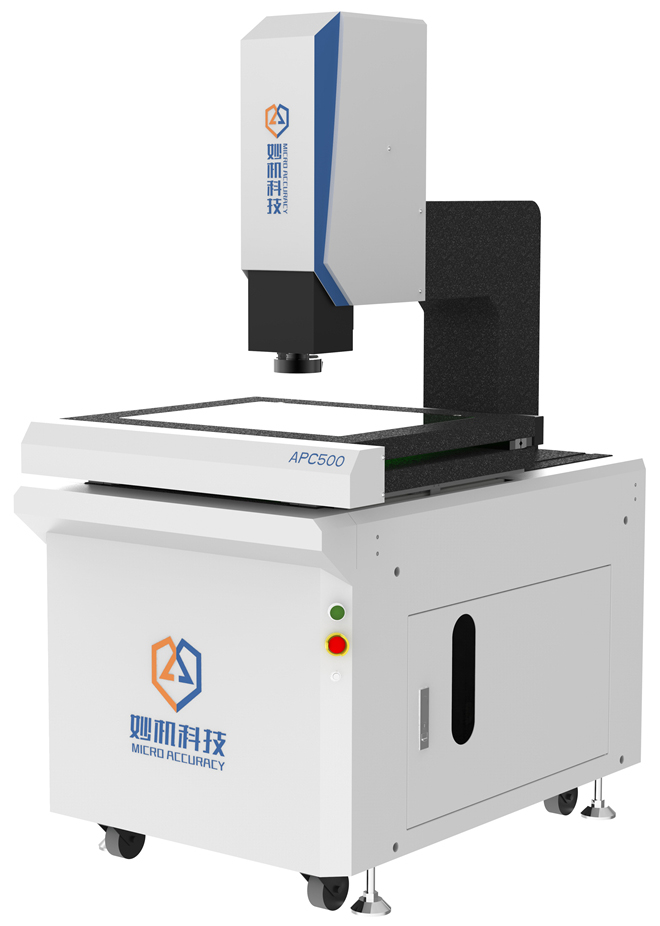

APC Series Video Measuring System
| Models | APC500 | APC600 |
| X,Y Axis Travels |
500x400mm |
600x500mm |
Stage glass sizes |
557x457mm |
657x557mm |
Z Axis Travel |
200/400mm |
200/400mm |
X,Y,Z Axis Resolution |
1μm |
1μm |
Accuracy |
1.5+L/150 |
1.5+L/150 |
Video magnification |
23X~190X |
23X~190X |
Field of view |
10.6mm~1.6mm |
10.6mm~1.6mm |
Working distance |
90mm |
90mm |
- High-precision marble base, table and column ensures high stability and rigidity.
- Panasonic full-closed-loop servo motor, speed can be adjusted.
- 5-ring 8-zone annular surface light to meet different angle lighting requirements.
- Optional RSF or RENISHAW high-precision non-touch grating.
- Optional fully automatic zoom lens.
- Optional Renishaw contact probe 3D measurement.
- Optional laser displacement sensor for surface roughness measurement.
