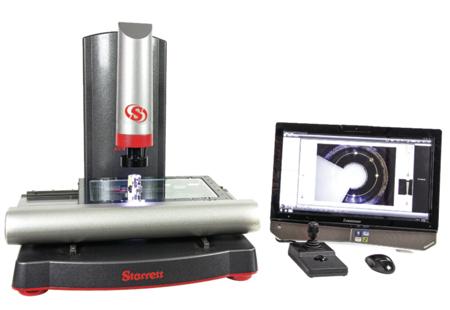

AVR300
X-Y-Z Travel: 300 x 200 x 200mm
Z-Axis Measuring: Standard
CNC: Standard
X-Y Accuracy (µm): E2 = 1.9 µm + 5L/1000
Z Accuracy (µm): E1 = 2.5 µm + 5L/1000
Scale Resolution: 0.1 µm
Base: Granite
Control System / Software: M3
Display: 21" Touchscreen PC
Zoom Optics - Standard: 6.5:1
Zoom Optics - Optional: 12:1
Digital Video Camera: 1 MP Color Std. 2MP with Telecentric
Surface Ring Illumination: LED
Transmitted Illumination: LED
Coaxial Illumination: Optional LED
Darkfiled Quadrant Illumination (Optional LED only): Optional LED
Brightfield Quadrant Illumination (Optional LED only): Optional LED
Auxiliary Lenses (Optional): 0.5X, 1.5X, 2.0X
Telecentric Lenses (Required on FOV & HDV): .3X, .5X, .8X, 1.0X, 2.0X, 4.0X
Rotary Fixture: Optional
Workstation Base, Extension and Swing Arm: Optional
Part Fixturing: Optional
Video Pixel Calibration Standard: Optional
Calibration Standards: Optional
The Starrett AVR Series CNC automatic vision metrology systems are ideal for repetitive measurements and automatic comparison to CAD files. They are available with dedicated 6.5:1 or 12:1 zoom optics or a quick-change bayonet lens mount which accepts a choice of six interchangeable telecentric lenses for micron-level resolution and optical distortion down to 0.001% for accurate field-of-view (FOV) measurements. The FOV can encompass an entire small part up to 2.00 x 1.50" or a feature of a larger part and be seamlessly integrated with stage motion to measure parts with a length up to 8" (AVR200) or 12" (AVR300). Systems are also touch probe compatible. AVR Series hardware features include a granite base for maximum stability, recirculating ball linear guides for smooth and precise stage motion, and full CNC control for high throughput. All electronics other than the PC are housed in the Z-column, ensuring an integrated system with minimal external wiring.
