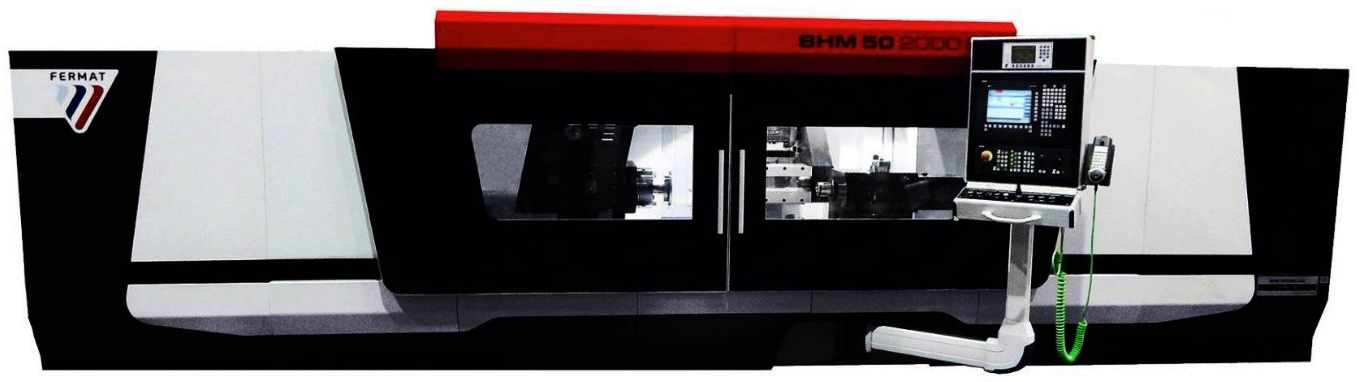

BHM 50 2000 CNC Grinding Machine
| Swing diameter | 500(600)mm |
| Distance between centers | 1000/1500/2000/3000mm |
| Max. weight of workpiece | 1000kg |
| Wheel head swivel | +15/°-180° (manual) |
| Max. number of used tools | 1+1 |
| Grinding wheel dimensions | 500x80x203mm |
| Wheel head motor power | 11kW |
The BHM Grinder is designed for controlled grinding of cylindrical and conical external surfaces of medium-weight workpieces by use of longitudinal or plunge-cut grinding methods. Form grinding and grinding of various transitions among different diameters can be performed. The BHM also allows grinding of face surfaces and cylindrical and conical internal holes by using the internal grinding attachments. The workpieces may be clamped between centers or by using flying-mode into the chuck. The drive headstock as well as grinding wheel head may be inclined for grinding cones. It is possible to grind either at the centers or in flying-mode with the workpiece clamped in the chuck or on the magnetic plate.
The grinding wheel head and table are moved in the line by ball screws and servomotors. The BHM CNC is designated for workpieces weighing up to 1000kg.
