Belt Drive

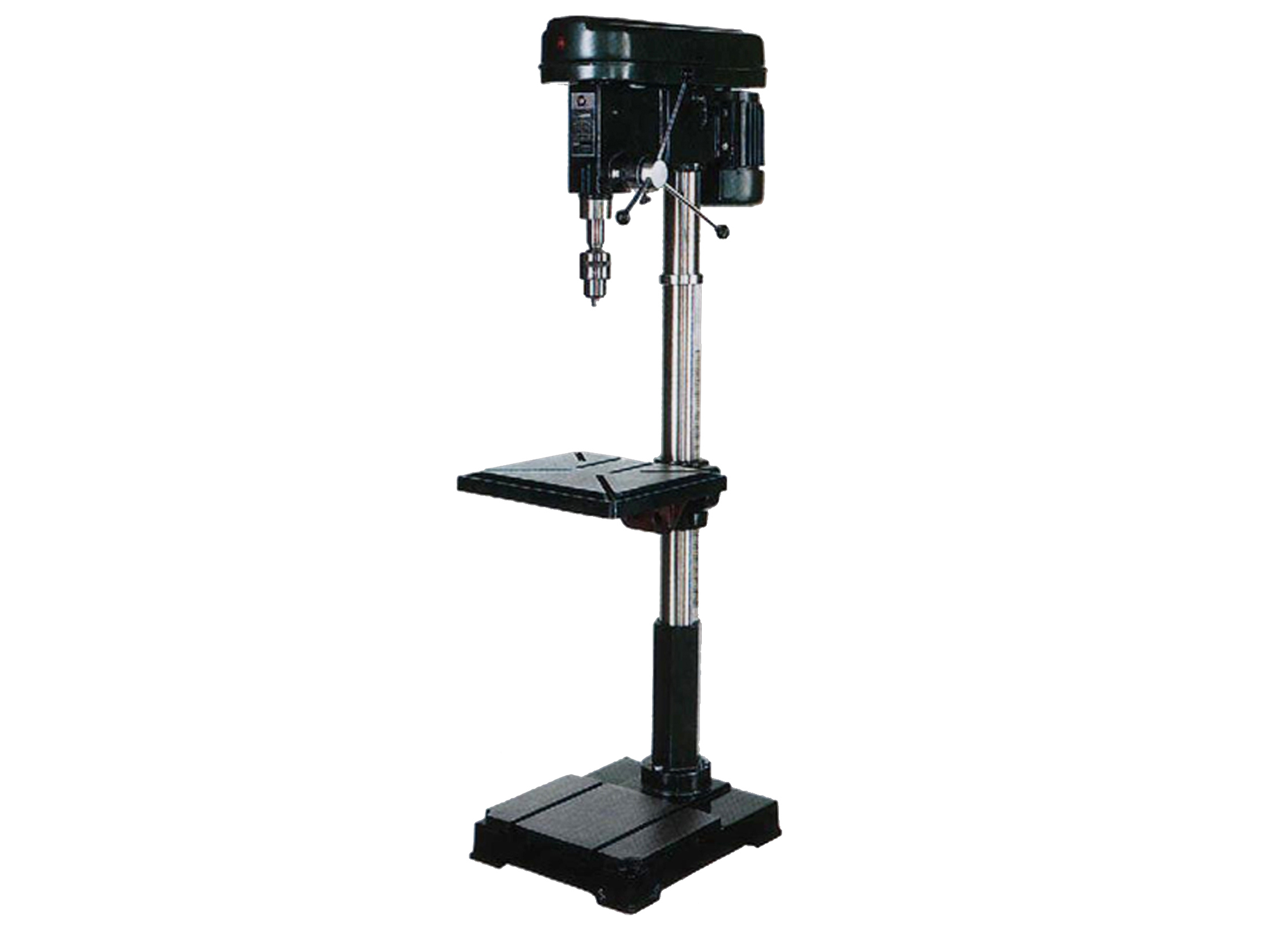

CH25
| Max. Drilling Capacity | 25mm(32mm) |
| Spindle Taper | MT3(MT4) |
| Chuck | 16mm(16mm) |
| Max. Spindle Stroke | 122mm(122mm) |
| Swing | 535mm(535mm) |
| Number of Speeds | 12(12) |
| Speed Range | 150-3490rpm (150-3490) |
| Max. Distance Sp. - Table | 720mm(720) |
| Max. Distance Sp. – Base | 1230mm(1230) |
| Diameter of Column | 92mm(92mm) |
| Size of Table | 473x410mm(473x410) |
| Size of Base | 572x495mm(572x495) |
| Overall Height | 1778mm(1780mm) |
| Motor | 1hp 220v (1hp 380v) |
| Net Weight | 157kg(168kg) |
