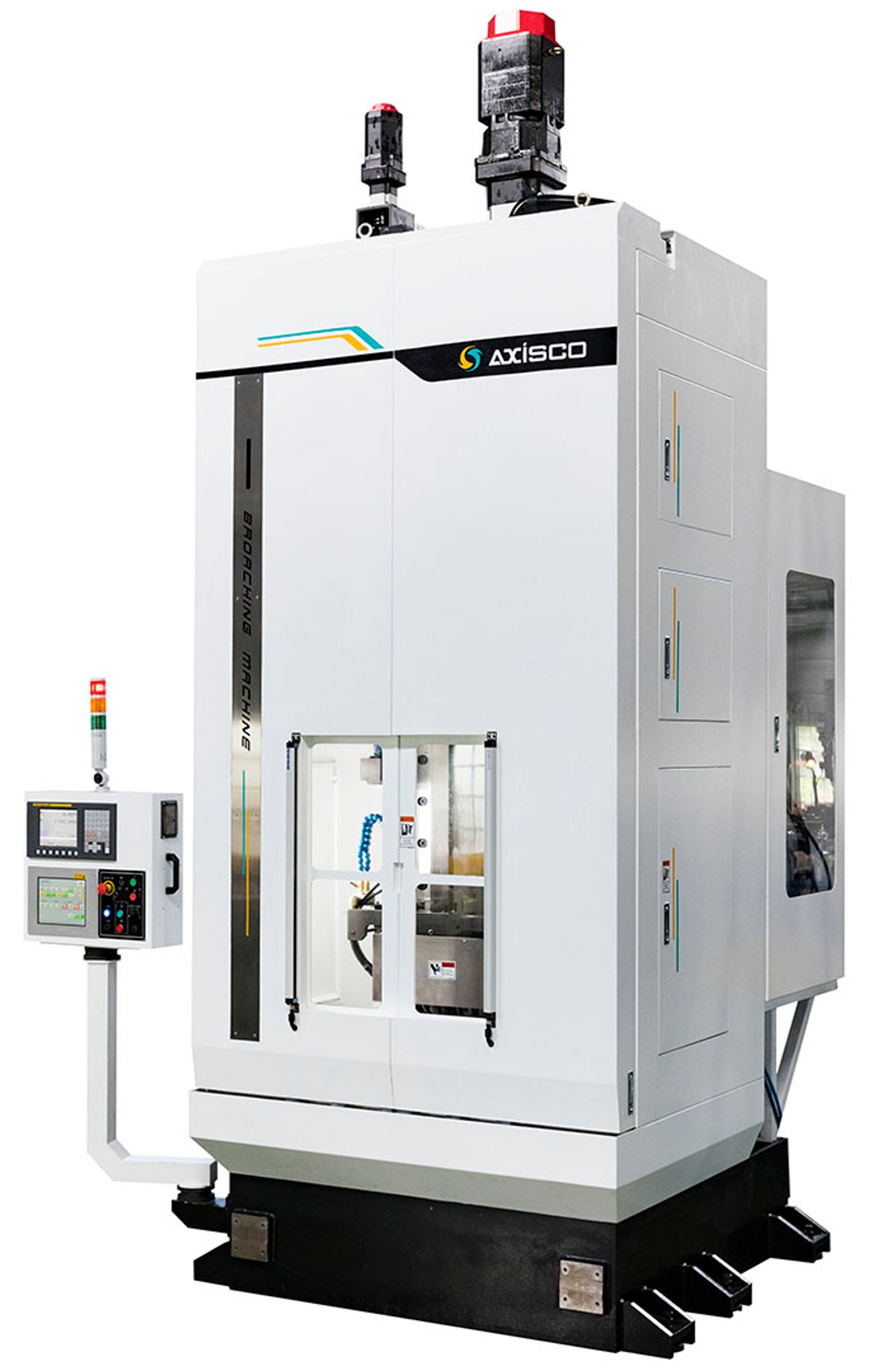

CHU Servo Drive Table Up Broaching Machine
| MODEL | CHU-0510 | CHU-0813 | CHU-1015 | CHU-1516 | CHU-2020 | CHU-3020 | CHU-4020 | |
|---|---|---|---|---|---|---|---|---|
| Pulling force | Tom | 5 | 8 | 10 | 15 | 20 | 30 | 40 |
| Max. stroke | mm | 1000 | 1300 | 1300 | 1600 | 2000 | 2000 | 2000 |
| Cutting speed | m/min,60Hz | 8 | 8 | 8 | 8 | 10 | 10 | 10 |
| Return speed | m/min,60Hz | 12 | 8 | 12 | 12 | 12 | 12 | 12 |
| Working table height | mm | 960 | 1072 | 1072 | 1255 | 1280 | 1280 | 1280 |
| Max. workpiece Size | mm | 180 | 225 | 225 | 225 | 225 | 225 | 225 |
| Main motor | kw | 5 | 7 | 11 | 15 | 11KW*2 | 15KW*2 | 22KW*2 |
| Machine weight | kg | 3500 | 5500 | 6000 | 8000 | 10000 | 12500 | 12500 |
| Machine height H | mm | 3230 | 3700 | 4000 | 4500 | 5300 | 5500 | 5800 |
| Floor space (WxL) | mm | 1500*2600 | 2030*2900 | 2030*2900 | 2500*3000 | 4700*1900 | 5000*2000 | 5200*2000 |
Highlights
- The machine is equipped with a servo motor and ball screw, consistent broaching speed, and low vibration, and increases the tool life by up to 20%.
- Compare with the traditional hydraulic machine, the electrical mechanical design saves up to 40% on electricity.
- The HMI makes it easy to operate and diagnose the machine.
- Adjust the broaching speed and stroke through HMI.
- No pit is needed for the electrical mechanical broaching machine, easy to automate.
- The broach retriever holds the broach to reduce vibration during broaching.
- CE-certified safety design with easy maintenance.
- TControl: MITSUBISHI - FANUC AB - SIEMENS
Media
- Servo drive table-up broaching machines apply the cutting-edge broaching technology for advanced precision, longer tool life, and better power efficiency. The working height is the same as most devices such as lathes, milling machines, etc., making it is very easy to integrate automation.
