CNC Flat Bed Turning Center

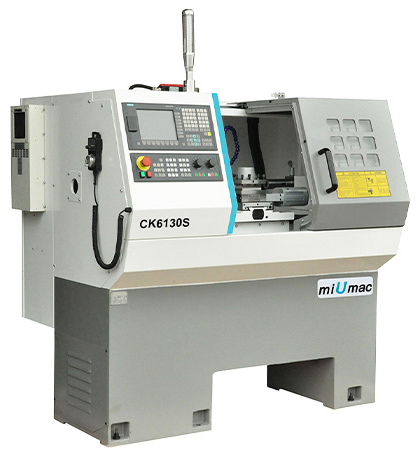

CK6130S/6136S/6140S Flat Bed Lathe
| Item | Unit | CK6130S | CK6136S | CK6140S |
| Processing | ||||
| Max.cutting Dia. for disc parts | mm | Ø300 | Ø360 | Ø400 |
| Max. cutting Dia. for axle parts | mm | Ø135/Ø100(Gang tools) | Ø180/Ø100(Gang tools) | Ø225/Ø195(Gang tools) |
| Max.workpiece length | mm | 500 | 500/750/1000 | 500/750/1000 |
| Max. turning length | mm | 390 | 450/700/950 | 450/700/950 |
| 6-way turret Max. turning length | mm | 280 | 340/590/840 | 340/590/840 |
| 6-way turret Max. turning diameter | mm | Ø185 | Ø255 | Ø300 |
| Spindle | ||||
| Spindle nose | D4 or A₂-5 | C5 | C6 | |
| Spindle bore | Ø | Ø38 or Ø43 | Ø40 | Ø52 |
| Taper of spindle hole | MT.No.5 or40° Taper | MT.No.5 | MT.No.6 | |
| Steps of spindle speed | Stepless | Stepless | Stepless | |
| Range of spindle speed | rpm | 200~3500 | 200~2800 | 200~2800 |
| Feed | ||||
| Rapid feed for axis Z | m/min | 10 | 10 | 10 |
| Rapid feed for axis X | m/min | 8 | 8 | 8 |
| Travel | ||||
| Max. travel of axis Z | mm | 460(18”) | 490/740/990 | 490/740/990 |
| Max. travel of axis X | mm | 165/260(Gang tools) | 215/295(Gang tools) | 235/295(Gang tools) |
| Turret | ||||
| Tool post stations | Gang tool post or power tool post | 4-Stations or6-stations or Gang tools | 4-Stations or6-stations or Gang tools | |
| Tool cross section | mm | 16×16 | 20×20 | 20×20 |
| Tailstock | ||||
| External diameter of tailstock sleeve | mm | Ø50 | Ø60 | Ø60 |
| Taper of tailstock sleeve | MT.No.3 | MT.No.4 | MT.No.4 | |
| Max. travel of tailstock sleeve | mm | 130 | 120 | 120 |
| Others | ||||
| Min.input | 0.001 | 0.001 | 0.001 | |
| Power of main motor | kW | 3 | 3.7 | 3.7(Optional5.5) |
| Power of cooling pump | W | 120 | 120 | 120 |
| Overall dimensions (L×W×H) | mm | 1500×945×1380 | (1870/2120/2370)×1200×1415 | (1870/2120/2370)×1200×1415 |
| Net weight | kg | 1100 | 1500/1700/1900 | 1600/1800/2000 |
Either vertical or horizontal 4-stataion or 6-stataion tool post as well as gang tool can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
