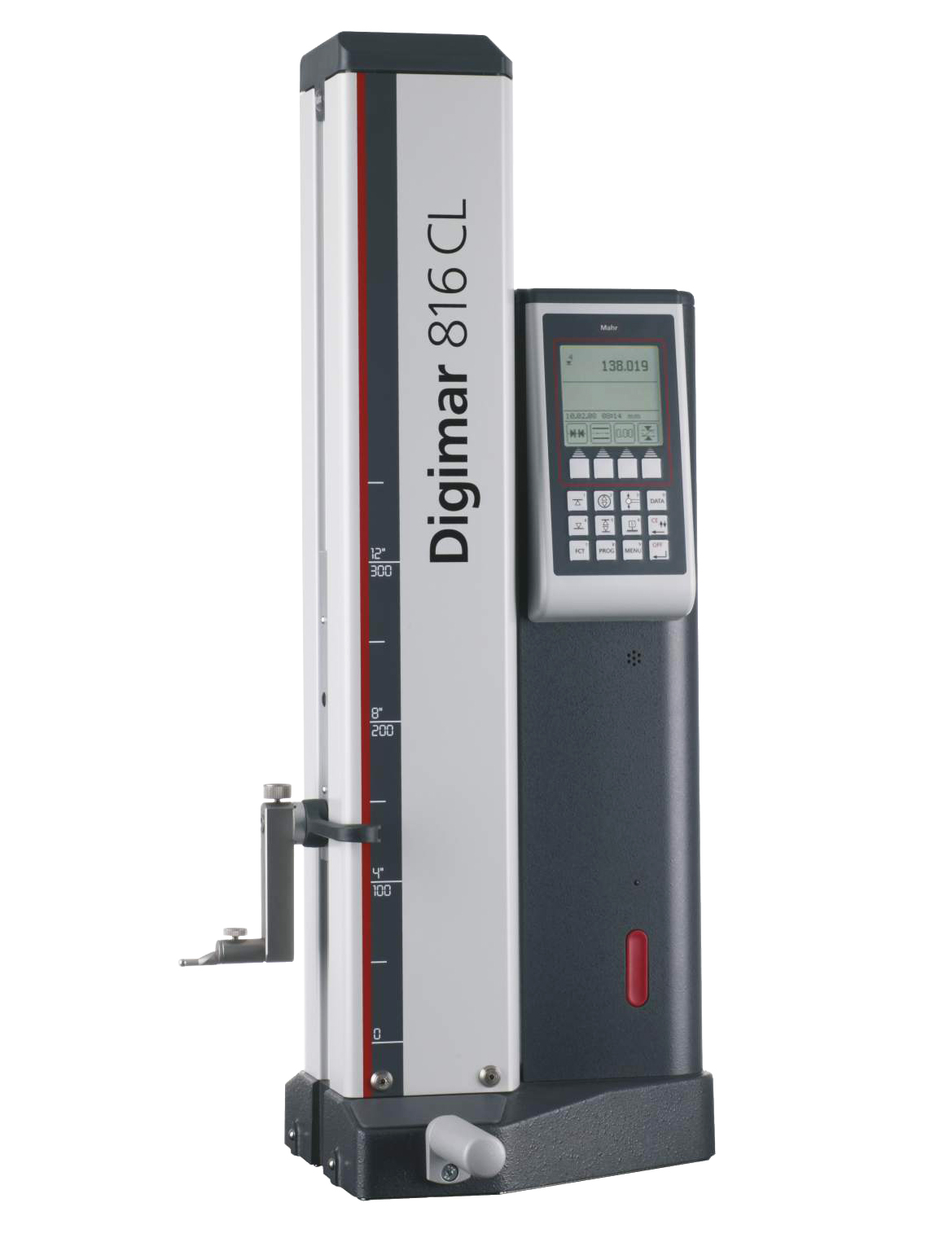

Digimar 816 CL Height Measuring Instrument

Digimar Height Gauges

Digimar 816 CL Height Measuring Instrument

Order no. Measuring range mm Measuring range inch Resolution Resolution Error limit Repeatability bores Repeatability plane Perpendicularity error in µm Measuring force (N) Product weight Standard Data interface
4429030
0 - 350
0 - 14"
0.01 mm / 0.001 mm
0 inch / 0 inch
(2.8+L/300) L in mm
3 µm
2 µm
15 µm
1.0 +/- 0.2 N
25 kg
Factory standard
Opto RS232C / USB / Wireless
4429031
0 - 600
0 - 24"
0.01 mm / 0.001 mm
0 inch / 0 inch
(2.8+L/300) L in mm
3 µm
2 µm
20 µm
1.0 +/- 0.2 N
30 kg
Factory standard
Opto RS232C / USB / Wireless




  • - Excellent accuracy and reliabilty due to the optical incremental measurement system with the double reader head
    - Dynamic probing system enabling high repeatability
    - Air bearings system for light and smooth movement
    - Precise measuring head on stainlees steel guideways
    - Motorized measuring carriage simplifies measurement runs
    - Temperature compensation with an integrated temperature sensor
    - Probe constant remains after the instrument is switched off
    - Integrated rechargeable battery with a long operating time span for power source independent measurement

    Operating and display unit

    - Easy to read backlit graphic LCD
    - Clear function keys
    - Language-neutral operator guidance with self-explanatory symbols
    - Possible to set additional zero points
    - Memory can store up to 99 measured values
