Surface Grinding
Easy Series 2040
| Table Size | 500x1000mm |
| Max. grinding length | 1050mm |
| Max. grinding width | 500mm |
| Distance from table surface to spindle center | 700mm |
| Standard magnetic chuck size | 500x1500mm |
| Grinding Wheel Diameter x Width x Bore | 405x50x127mm |
| Spindle speed | 1800rpm |
| X axis Table speed | 3-25mm |
| Y axis Rapid travel | 285mm |
| Automatic downfeed | 0.001-0.03mm |
| Handwheel per graduation | 0.01/0.1/1mm |
| Handwheel per revolution | 0.1/1/10mm |
| Z axis Manual travel | 560mm |
| Rapid travel, approx | 0.5-1mm |

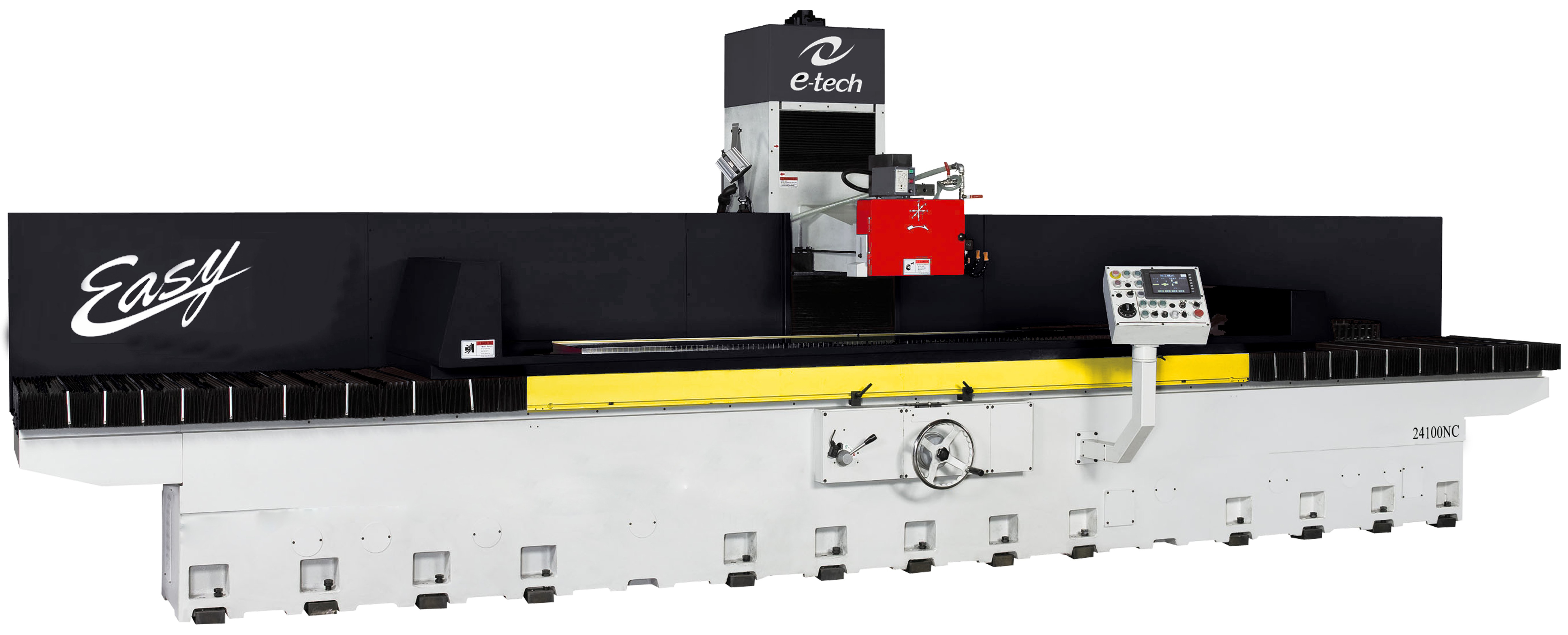

e-tech’s Easy series surface grinder present unique grinding accuracy and surface finish, and we offer both saddle and column type structure for different task. The structure design provides high precision and high rigidity results,
Standard accessories
Standard grinding wheel with flange
Working light
Leveling screws with blocks
Balancing stand with arbor
Wheel extractor
Operation manual with part list
Tools and tool box
Diamond kit with holder
Splash guard
Standard coolant tank
