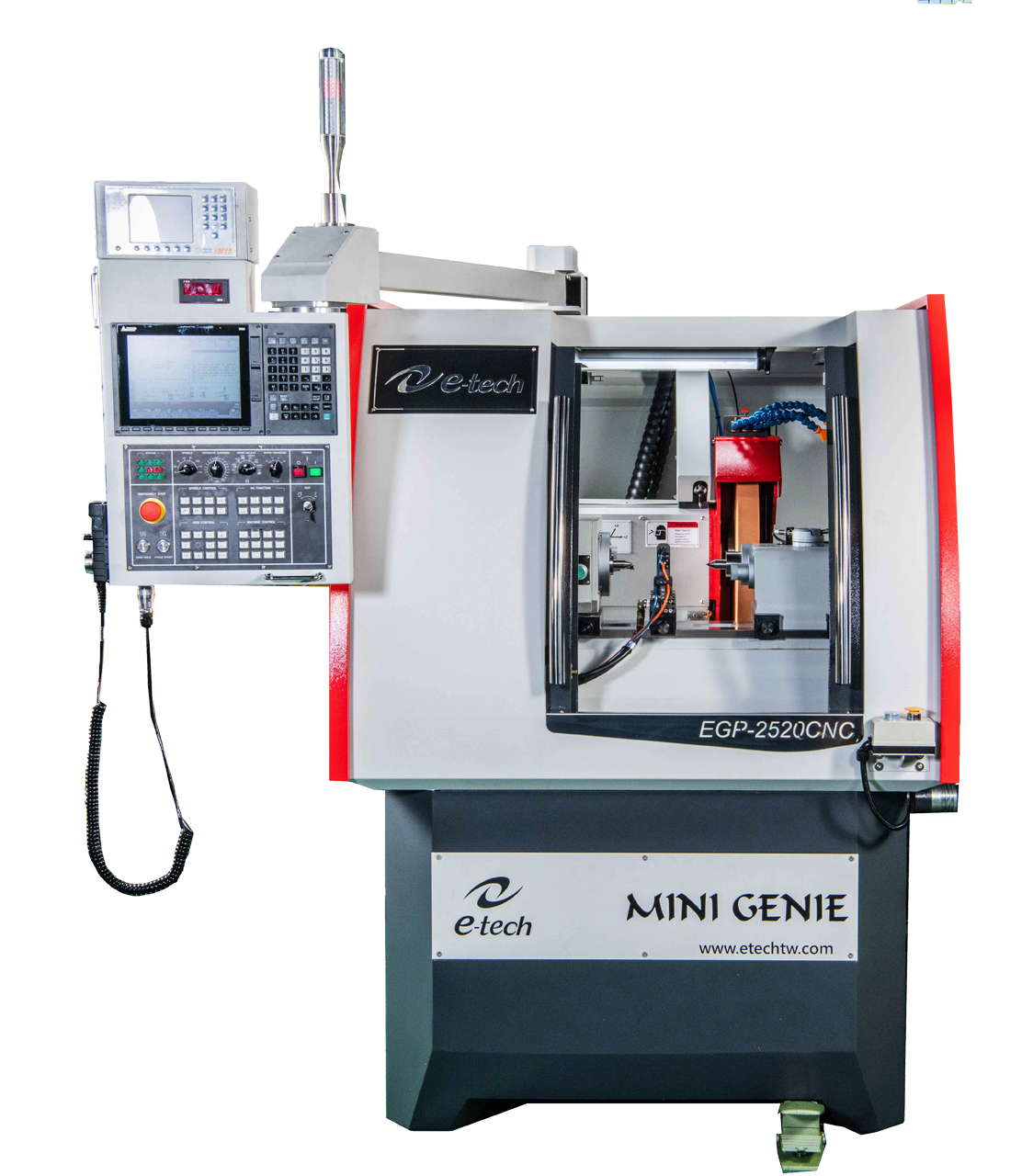

EGP-2520 CNC 'Mini Genie"
| Grinding Capacity | Swing over table | mm | Ø250 | |
|---|---|---|---|---|
| Distance between centers | mm | 200 | ||
| Max. grinding daimeter | mm | Ø230 | ||
| Center distance between spindle & slide table | mm | 130 | ||
| Max. load held between center | kg | 20 | ||
| Grinding Wheel | Diameter x Width x Bore | mm | Ø510×50×Ø152.4 | |
| Motor rated power / max. torque | Kw/Nm | 5.5/27.6 | ||
| Wheel speed | rpm | 1250 (Opt. 1650) | ||
| Spindle type | bearing spindle | |||
| Wheel head angle | deg | 0 or 20 | ||
| Workhead | Max. manual swiveling angle | deg | 90 | |
| Spindle speed (infinite variable) | rpm | 10 ~ 600 | ||
| Motor rated power / max. torque | kw | 0.75 | ||
| Center working | Fixed or Rotary | |||
| Diameter of bore | mm | Ø20 | ||
| Center taper | MT3 (Opt. MT4) | |||
| Tailstock | Tailstock quill travel | mm | 25 | |
| Cente taper | MT3 (Opt. MT4) | |||
| Micro-taper adjustment | mm | ±0.04 | ||
| X axis | Travel | mm | 200 | |
| Max. rapid feedrate | m/min | 6 | ||
| Heidenhain linear scale resolution | um | 0.05 | ||
| Min. increment | mm | 0.0001 | ||
| Servo motor rated power | Kw | 1.2(F) / 1.5(M) | ||
| Guide way | linear way | |||
| Z axis | Travel | mm | 270 | |
| Swiveling angle | deg | 0 | ||
| Max. rapid feedrate | m/min | 8 | ||
| Min. increment | mm | 0.0001 | ||
| Servo motor rated power | kw | 1.2(F) / 1.5(M) | ||
| Guide way | linear way | |||
| Motor | Hydraulic motor | Kw | 0.38 | |
| Coolant pump | Kw | 0.2 | ||
| Machine | Net weight | kg | 2500 | |
| Measurement | mm | |||
e-tech’s EGP series CNC cylindrical grinders are designed for high precision, high efficiency, and ease of operation. They are suitable for various applications including but not limited to automatic, aerospace, medical instrument, tooling, job shop and mold industries.
Standard accessories
Infinite variable workhead w/servo motor
Fanuc CNC Controller (0i TF) / (Opt. Mitsubishi M80)
Carbide center tip (MT3/C10)
Diamond Dresser and Stand
Automatic wheel speed change (15 steps)
X Axis Heidenhain linear scale (resolution 0.05 um)
Levelling bolts and blocks
Operation manual and part lists
Grinding Wheel + Wheel Flange
Full-enclosed splash guard
Standard coolant tank 140L
MPG handwheel 2 Axes control
Auto lubrication system
Roller type balancing stand/arbor
LED working light
Tools and Tool Box
Electricity cabinet w/ heat exchanger
Wheel extractor
4-color indication signal light
Electrical wiring diagram
