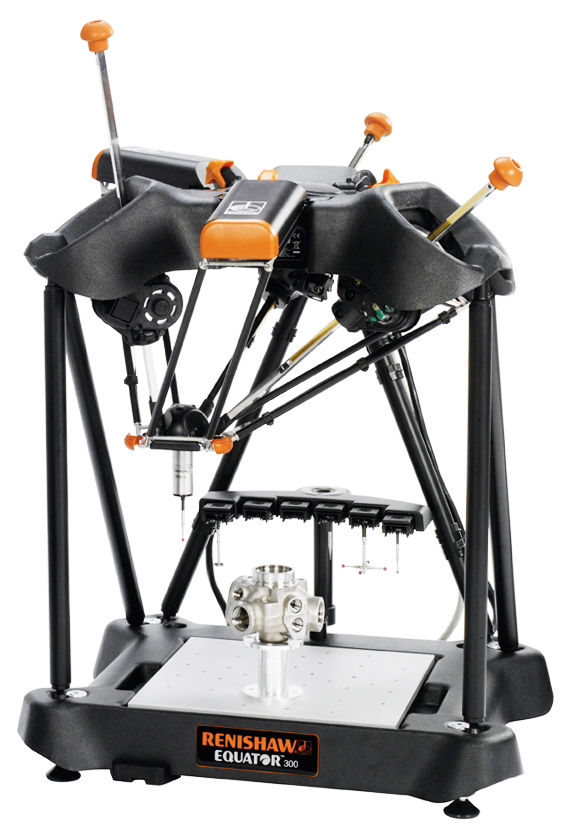

Equator™ 300 gauging system
Working volume XY: 300mm Z: 150mm
Comparison uncertainty ± 0.002mm
Scale resolution 0.0002mm
Storage temperature -25 °C to +70°C
Operating temperature +10 °C to +40°C
Operating humidity Maximum 80 %RH at 40°C, non-condensing
Machine electrical supply requirements 24 V DC supplied direct from Equator controller
Repeatability of piece part in fixture 1mm
Fixture plate 305 mm × 305mm
Maximum workpiece weight (including fixture plate) 25kg
Machine dimensions (W × D × H) 570mm × 500mm × 700mm
Machine weight 2 kg
With the patented low-cost design, unique construction and method of operation, Equator systems are a high speed comparative gauge for inspection of medium to high volume manufactured parts.
The Equator gauge is unique in its design and method of operation, and has already changed the thinking of thousands of production engineers, making it their new gauge of choice.
Equator systems can be configured according to the needs of the application and manufacturing process with hardware, software and accessory options for both manual and automated operations.
Renishaw's Equator gauging systems are an innovative and highly repeatable gauging technology, based on the traditional comparison of production parts to a reference master part. Re-mastering is as swift as measuring a production part and immediately compensates for any change in the thermal conditions of a shop-floor environment. Equator systems can be used in factories with wide temperature variation – simply re-master and the system is ‘re-zeroed', ready for repeatable comparison to the master.
A master part is measured to generate a master data set. The same measurement routine is used to measure each production part. Each production data set is then compared to the master data set to determine the actual size of the part and whether it is within user defined tolerances.
