Explorer
6 Axes
| Model | Measuring field | Volumetric Accuracy (mm)* | Repeatability (mm)* |
|---|---|---|---|
| EXPLORER 5000 | 5000 mm | 0,065 | 0,038 |
| EXPLORER 7000 | 7000 mm | 0,102 | 0,056 |
| EXPLORER 9000 | 9000 mm | 0,150 | 0,075 |
7 Axes
| Model | Measuring field | Volumetric Accuracy (mm)* | Repeatability (mm)* |
|---|---|---|---|
| EXPLORER 5000 | 5000 mm | 0,075 | 0,050 |
| EXPLORER 7000 | 7000 mm | 0,117 | 0,070 |
| EXPLORER 9000 | 9000 mm | 0,170 | 0,090 |

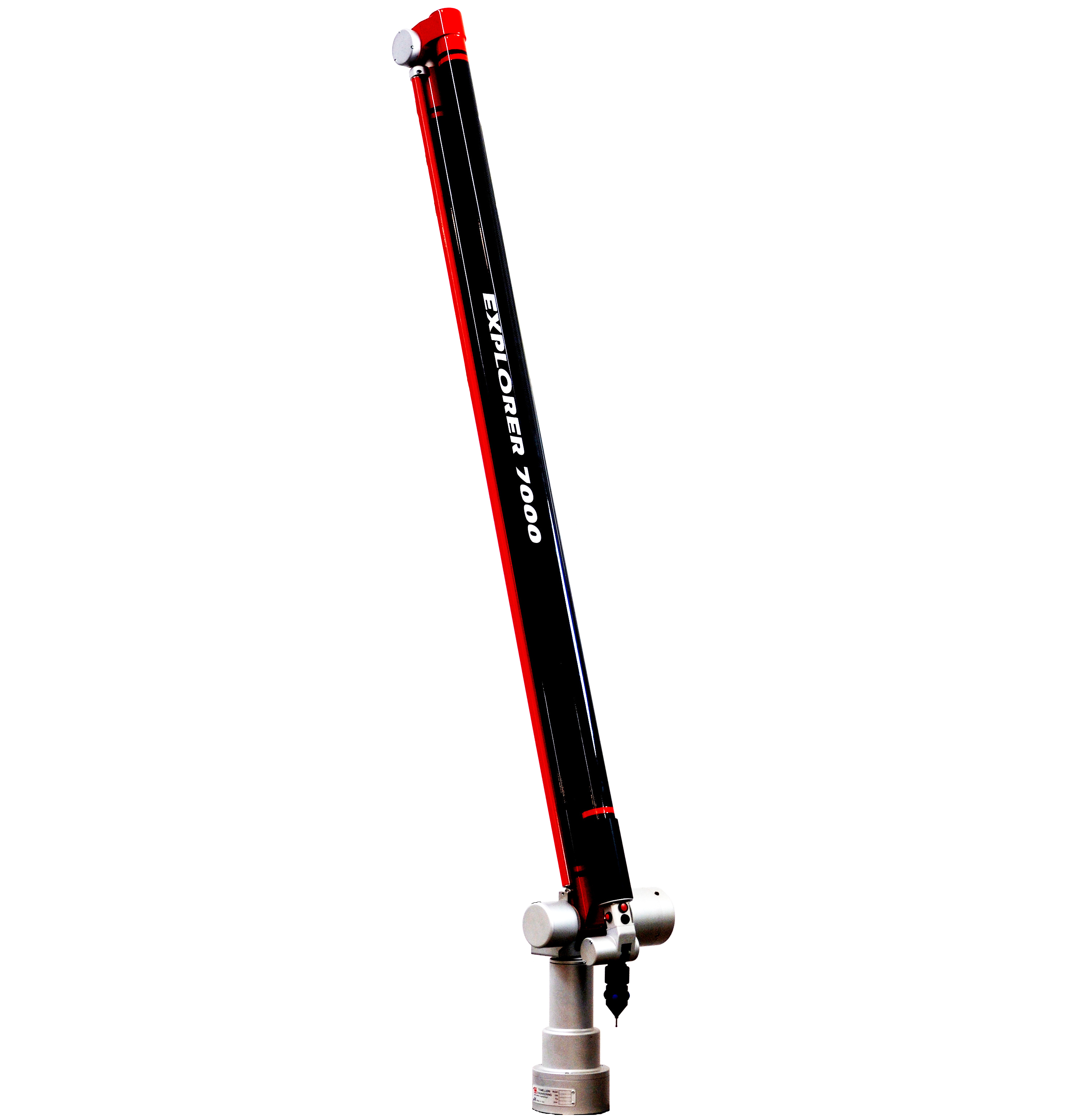

THE LARGEST MEASURING RANGE FOR A PORTABLE ARM
The EXPLORER line is the maximum epxression of our capability, combining the largest dimension for a portable arm to the highest precision possible. With measuring ranges from 5 up to 9 m diameters and with 6 and 7 axes configuration every measure is now possible.
WHEN THE NEED IS TO.. EXPLORE
The EXPLORER is available with 5, 7 and 9 m diameter. It is the perfect equipment when you need to "explore" large parts with great flexibility, representing our solution to face the toughest challanges. Every situtation that was previosly impossible now is made possible.
PERFECTLY BALANCED
When the dimensions are important, every aspect becomes critical in obtaining the best results. For the EXPLORER line the balance plays a fundamental role, allowing to the reduce the loads carried by the user during the measurement session. This not only allows a comfortable handling despite the incredible size, it also makes the arm surprisignly accurate.
SAFE AND COMFORTABLE
The EXPLORER line is equipped with a re-dimensioned electromagnetic brake system that allows the operator to lock the arm at the required hight, and to use it safely and comfortably.
