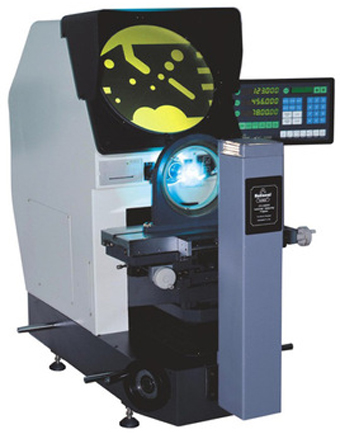

HOC400 Horizontal Profile Projector

Shadow Graph

HOC400 Horizontal Profile Projector

Screen size  400mm with 4 film clips

Travel-X.Z axis

250mm*150mm

Travel-Y

100mm

Table size

450mm*200mm

Table load capacity

30kg

Net weight  240kg

Object lens

5x,10x (Std), 20x, 50x, 100x

Magnification accuracy

0.08% contour, 0.12% surface

Power supply

AC110-120v, 200-240v, single phase 50/60Hz

Linear scale-X. Y axis

0.5µm resolution

Angle measuring

0.01°or 1′ resolution

Accuracy

2.5+L/150µm

Repeatability

0.003mm
