HPMA
Application CNC lathe tool setting and tool breakage detection.
Sense directions: Probe ±X, ±Y, +Z Machine ±X, ±Z, +Y
Typical positional repeatability (at gauging speed of 36 mm/min):
6 in - 15 in chuck arms 5 µm 2σ X/Z 18 in - 24 in chuck arms 8 µm 2σ X/Z
Environmental protection IPX8 (static)
Operating temperature 5°C to 60°C (41°F to 140°F)
Storage temperature -10 °C to 70 °C (14 °F to 158 °F)
Arm sweep angle 91° / 90° (If Renishaw probe enclosure is not used, note maximum arm sweep angle of 91°)
HPMA kits comprise of:
Tool setting arm
RP3 probe
Rear exit hub and base
TSI 3 interface
Installation and User guide

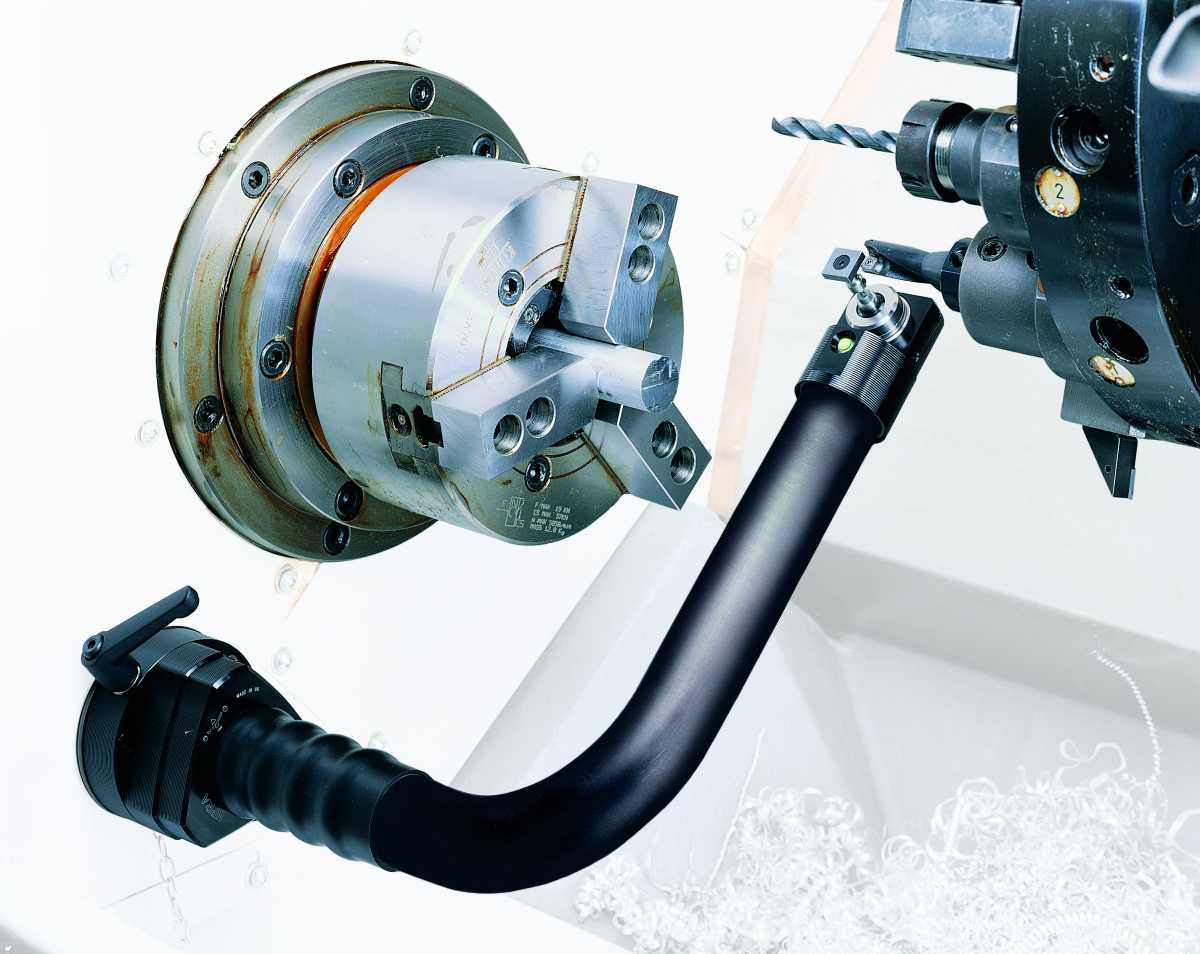

The HPMA is a motorised swingdown tool setting arm, featuring the RP3 three axis probe. For tool measuring and broken tool detection on 2-axis and 3-axis CNC lathes and grinding machines.
The patented rotary kinematic design ensures highly repeatable stylus positioning each time the HPMA is swung down into its ‘ARM READY’ position. The design also provides a positive engagement into position at both the ‘ARM READY’ and ‘MACHINE READY’ positions. A bicolour LED indicates probe status and also informs the operator that the system is ready for use.
System components
Arm/hub assembly with probe I Probe enclosure I TSI3 interface
Benefits
----------------------------------------------------------------------------
HP Arms app
The HP arms app provides engineers with an interactive support app for the range of Renishaw high precision tool setting arms. The app makes configuration, maintenance and troubleshooting tasks simple with easy-to-follow animations and step-by-step instructions.
- Supports HPMA, HPPA and HPRA high precision tool setting arms
- Easy-to-follow animation and step-by-step instructions
- Includes arm and RP3 configuration, maintenance and troubleshooting tasks
