MarCal Calipers

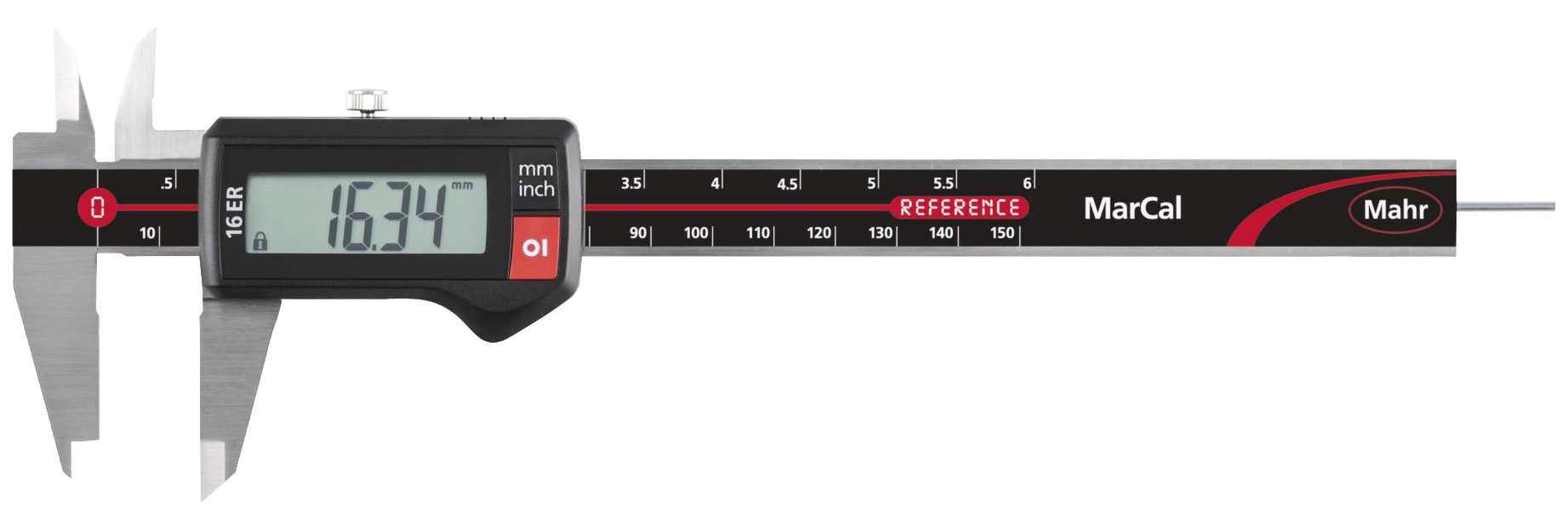

MarCal 16 ER
| Order no. | Measuring range mm | Measuring range inch | Resolution mm/inch | Error limit (mm) | Error limit inches | Standard | Friction wheel | Depth Rod |
|---|---|---|---|---|---|---|---|---|
| 4103010 |
0 - 150
|
0 - 6"
|
0.01 / .0005"
|
0.03 mm
|
.001"
|
DIN 862
|
no
|
round
|
| 4103011 |
0 - 150
|
0 - 6"
|
0.01 / .0005"
|
0.03 mm
|
.001"
|
DIN 862
|
yes
|
round
|
| 4103012 |
0 - 150
|
0 - 6"
|
0.01 / .0005"
|
0.03 mm
|
.001"
|
DIN 862
|
no
|
rectangular
|
| 4103013 |
0 - 150
|
0 - 6"
|
0.01 / .0005"
|
0.03 mm
|
.001"
|
DIN 862
|
yes
|
rectangular
|
| 4103205 |
0 - 200
|
0 - 8"
|
0.01 / .0005"
|
0.03 mm
|
.001"
|
DIN 862
|
no
|
rectangular
|
| 4103206 |
0 - 200
|
0 - 8"
|
0.01 / .0005"
|
0.03 mm
|
.001"
|
DIN 862
|
yes
|
rectangular
|
| 4103207 |
0 - 300
|
0 - 12"
|
0.01 / .0005"
|
0.04 mm
|
.0015"
|
Factory standard
|
no
|
|
| 4103208 |
0 - 300
|
0 - 12"
|
0.01 / .0005"
|
0.04 mm
|
.0015"
|
Factory standard
|
yes
|
Functions
- ON/OFF
- AUTO-ON / OFF
- RESET (set display to zero)
-mm/inch
- LOCK function (key lock)
- - High contrast analog display
- - Locking screw above
- - Lapped guideway
- - Measuring blade for inside measurements
- - Slide and beam made of hardened stainless steel
- - Step measuring function
- - Immediate measurements due to the Reference System
- - Raised guideway for the protection of the scale
- - Dirt wipers are integrated in the slide
- - None
- - Instruction manual
- - Battery
- - Case
- - Battery life approx. 3 years
Height of digits
- - 11 mm
