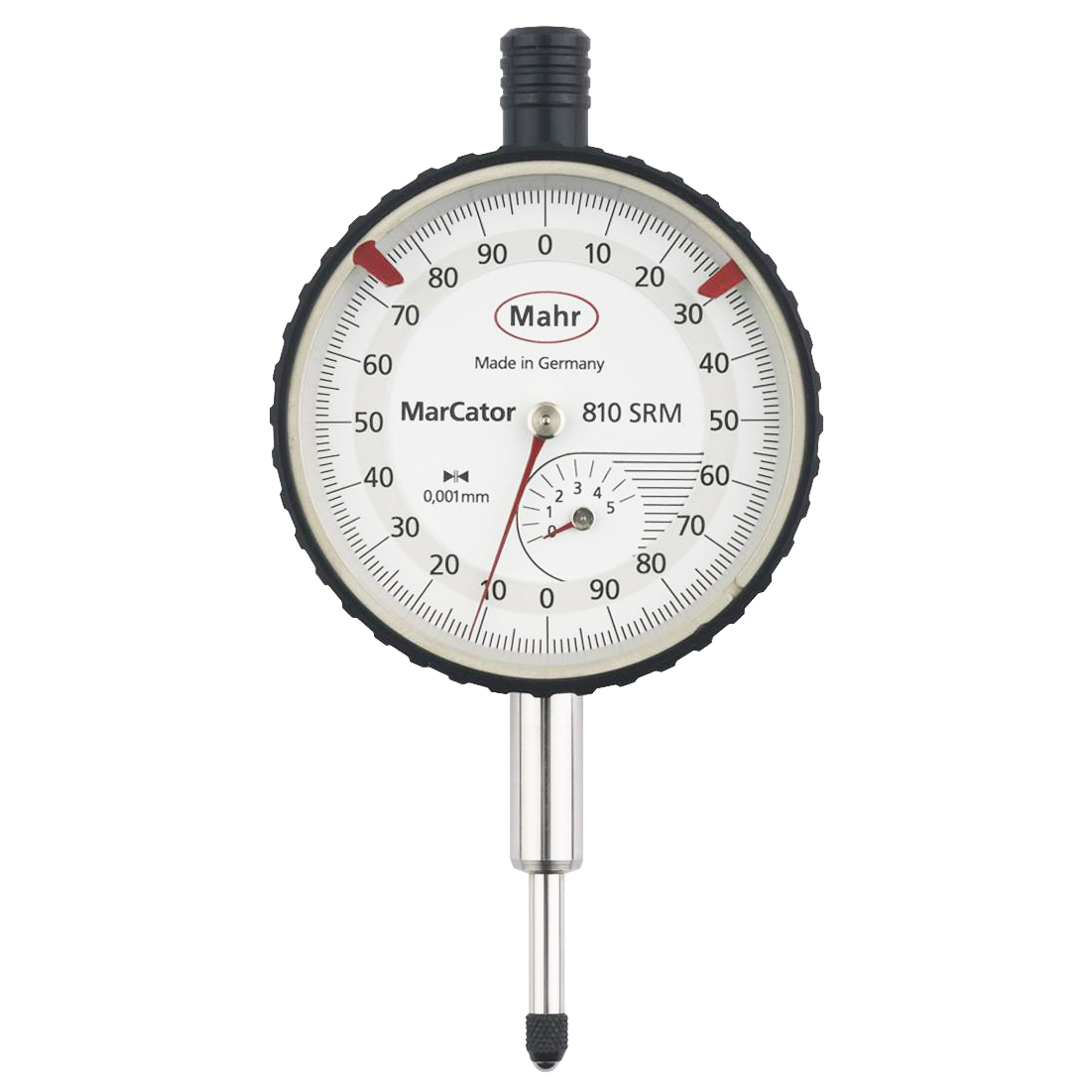

Marcator 810 SRM Dial Indicator

MarCator Indicators

Order no.	Product type	Measuring span in mm	Graduation value mm	Type of dial face	Range per rev. in mm	Error limit measuring range µm	Error limit 1 revolution µm	Error limit 1/2 revolution µm	Error limit 1/10 revolution µm	Hysteresis fu (µm)	Repeatability fw (µm)	Standard	Overtravel mm	Scale diameter
4311070	810 SM	1 mm	0.001 mm	0-100	0.1 mm	4 µm	3 µm	2 µm	1 µm	1.5 µm	1.5 µm	Factory standard	4 mm	50 mm
4311080	810 SRM	5 mm	0.001 mm	0-100-0	0.2 mm	10 µm	5 µm	3 µm	2 µm	3 µm	3 µm	Factory standard	0.1 mm	50 mm
