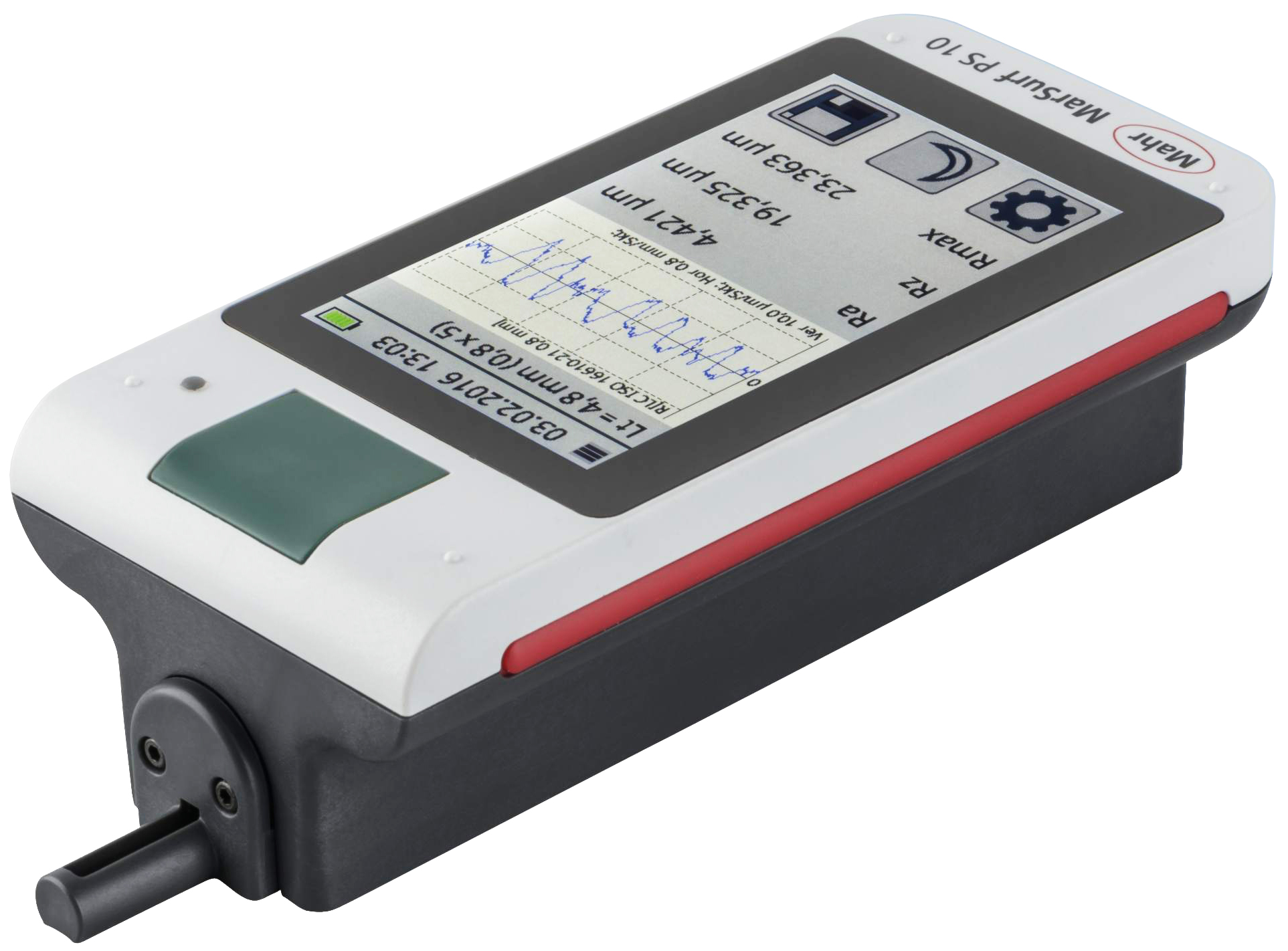

MarSurf PS10
|
6910230 - PS 10 MarSurf set 2 µm
|
6910232 - PS 10 MarSurf set 5 µm
|
6910235 - MARSURF PS10 C2, TRANSVERSE DRIVE, 2UM PROBE
|
|
|
Measuring principle
|
Stylus method
|
Stylus method
|
Stylus method
|
|---|---|---|---|
|
Probe
|
Inductive skidded probe
|
Inductive skidded probe
|
inductive skidded probe
|
|
Measuring units
|
metric/inches
|
metric/inches
|
metric/inches
|
|
Measuring range mm
|
0,350
|
0,350
|
0.350
|
|
Profile resolution
|
8 nm
|
8 nm
|
8 nm
|
|
Filter according to ISO/JIS
|
Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)
|
Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)
|
Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off)
|
|
Short stroke under ISO/JIS
|
Selectable
|
Selectable
|
selectable
|
|
Traversing length according ISO 12085 (MOTIF)
|
1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm
|
1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm
|
1 mm, 2 mm, 4 mm
|
|
Evaluation lenth In according to ISO/JIS
|
1.25 mm, 4.0 mm, 12.5 mm
|
1.25 mm, 4.0 mm, 12.5 mm
|
1.25 mm, 4.0 mm
|
|
Number n of sampling length according to ISO/JIS
|
Selectable: 1 to 16
|
Selectable: 1 to 16
|
selectable: 1 to 16
|
|
Stylus
|
2 µm
|
5 µm
|
2 µm
|
|
Measuring force (N)
|
0,00075
|
0,00075
|
0.00075
|
|
Calibration function
|
Dynamic; Ra, Rz, Rsm
|
Dynamic; Ra, Rz, Rsm
|
dynamic; Ra, Rz, Rsm
|
|
Storage capacity
|
Min. 1350 profiles, min. 500,000 results, min. 250 PDF records, expandable to 32 GB with Micro SD card
|
Min. 1350 profiles, min. 500,000 results, min. 250 PDF records, expandable to 32 GB with Micro SD card
|
min. 3900 profiles, min. 500,000 results, min. 1500 PDF records, expandable with microSD card up to 32 GB
|
|
Other
|
Lock/password protected, date/time
|
Lock/password protected, date/time
|
Lock/password protected, date/time
|
|
System of protection
|
IP 40
|
IP 40
|
IP 40
|
|
Rechargeable batteries
|
Lithium-ion battery, min. 1200 measurements
|
Lithium-ion battery, min. 1200 measurements
|
Lithium-ion battery, min. 1200 measurements
|
|
Wide range power supply
|
100 to 264 V
|
100 to 264 V
|
100 to 264 V
|
|
Dimensions in mm
|
160 mm x 77 mm x 50 mm
|
160 mm x 77 mm x 50 mm
|
160 mm x 77 mm x 50 mm
|
"SMAHRT Surf" - simple, smart and mobile
- Compact roughness measuring instrument for mobile use
- Simple and intuitive to use: as easy as using a smart phone
- Large, illuminated 4.3" TFT touch display
- Adjustable display
- Data backup as TXT, X3P, CSV or PDF file
- Create complete PDF measuring records directly in the measuring instrument
- Customized comments for the PDF measuring record can be entered directly into the MarSurf PS 10
- Mains-independent operation: Over 1200 measurements without having to recharge the instrument
- An all-in-one solution. Small and lightweight (approx. 500 g)
- Instrument flexibility: removable drive unit
- 31 surface parameters: offer the same range of functions as a laboratory instrument
- Roughness standard stored within housing aids in reducing errors
- Quick access to your frequently used functions via the Favorites list in the display
- Automatic cutoff selection, so even non-specialists can be sure of getting the correct measuring results
NEW: Additional version with transverse drive unit available as MarSurf PS 10 C2 (item number 6910235)
