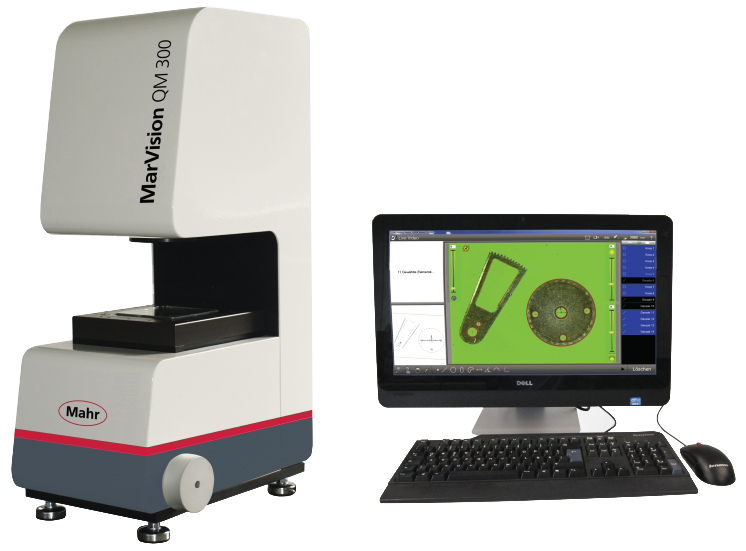

MarVision QM 300
| Order no. | Z travel path in mm | Measuring system - E2 XY in µm | Illumination | Measuring range X/Y in mm |
|---|---|---|---|---|
| 4247800 |
30
|
4 + L/50 (L in mm)
|
Front illumination: LED ring light
Back illumination: LED, telecentric |
32 x 24
|
| 4247801 |
30
|
4,5 + L/50 (L in mm)
|
Front illumination: LED ring light
Back illumination: LED, telecentric |
57 x 42
|
| 4247802 |
30
|
7,5 + L/50 (L in mm)
|
Front illumination: LED ring light
Back illumination: LED, telecentric |
96 x 72
|
Measuring microscope
- Fixed telecentric lens
- Integrated USB color camera
- LED ring light: switchable and dimmable
- LED transmitted light: switchable and dimmable
- Measuring table with height adjustment
Control and display unit with M3 software and touchscreen PC
- Large, high contrast color LCD display with backlight
- 4 display modes: video live image, digital display, element display and tolerance display
- Automatic part detection
- Automatic measurement of all features of a part within the image field
- Comparison of measurement with the CAD drawing via DXF function
- Measuring and evaluation functions for point, straight line, circle, angle, distance, intersection point
- 'Magic' function for automatic geometry recognition from the measured measuring points
- Teach-in methods for easy measuring program creation
- Trouble-free program sequence with graphical route guidance
- Lighting control
- Multilingual user guidance
- RS232 interface for measuring data processing
- USB printer port
- USB stick connection
- Updateable via USB stick for a future-proof system
