Metronor Solo Twin System

APPLICATION SPECIFICATION COMMENT
Range 1.5 – 25 m (5 – 80’) Distance from sensors
Measurement Volume 2000m3 70.000ft3
Profile measurements

±0.16 mm (5 m from camera)

±0.21 mm (10 m from camera)

±0.43 mm (20 m from camera)

600 mm wide profile orthogonal to camera optical axis

2 Sigma (U95)

Parallelism ±0.0033deg

Parallelism between 2 planes, 1000mm size

2 Sigma (U95)

Planarity ±0.06mm

Planarity of single plane, size 2x2m2

2 Sigma (U95)

Small volume - 3D ±0.12mm

Volume up to 1.5 x 1.5 x 1.5 m3

Accuracy of 3D length

2 Sigma (U95)

Casting volume - 3D ±0.20mm

Volume up to 3.0 x 3.0 x 3.0m3

Accuracy of 3D length (typical)

Environment No warm-up

Operating Temperature: 10 to 45˚C (50 to 113˚F)

Storage Temperature: -25 to 65˚C (-13 to 150˚F)

Operating Humidity: < 95% relative humidity, non-condensing

Pressure, Humidity, Temperature: No effect on measurement accuracy

Vibration Stability Control (option): 0 – 100 Hz, < 3 mm amplitude

Electrical Power Auto switching (Battery operation optional) 100-240V AC, 50-60Hz


Metronor SOLO Twin uses two separate cameras to generate each image. By effectively doubling the field-of-view, the camera can be placed closer to the measurement object, increasing accuracy and enabling measurement in one-set-up where several set-ups would otherwise be required.

During normal operation, the two cameras are mounted together on a special carbon fiber bracket ensuring optimal overlap and excellent stability.  Using a fast and simple procedure, the alignment between the two cameras can be re-determined anytime and anywhere, keeping system performance consistent over time – and after any rough handling or transportation.

Metronor SOLO Twin also enables special applications where it is critical to have two separate camera axes that are precisely known relative to each other. Such applications include alignment or inspection of parallel objects such as planes or bores – e.g. in gearboxes, thrusters, turbines, or other machinery.

Benefits

- High accuracy on large objects
- No setup – just measure
- Operator friendly: Probing without beams, cables or arms
- Tool certification within minutes
- Flexible and versatile
- Affordable capability
- Exceptional 70o field of view
- Unique solution for shaft alignment
- Ideal for narrow and crowded environments

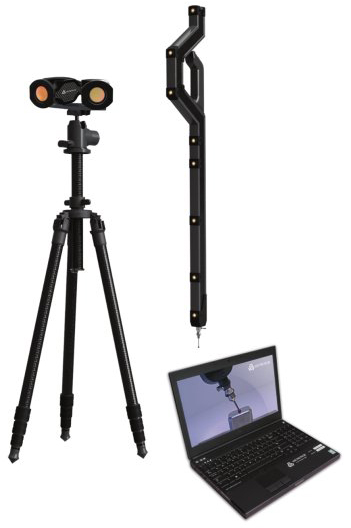

Contents

- Pair of Metronor camera CAM38 (110000) with 10m signal & power/sync cables
- SOLO Twin Mounting Plate for CAM38 (711204)
- SOLO/DUO tripod (711100) with Pan/tilt head (711000)
- LP89 Lightpen (116152) with WiFi communication and re-chargeable Li-Ion battery
- LP89 comes with spare Li-Ion battery and battery charger
- Standard Probe Kit (116200) and Calibration Tool (716400)
- Laptop computer for SOLO/DUO (714005)
- Interface Unit IU2 (714864)
- Metronor Metrolog EVO (331500), Metronor System SW (MSS) (330000) and SOLO technology license
- Required system and power cables
