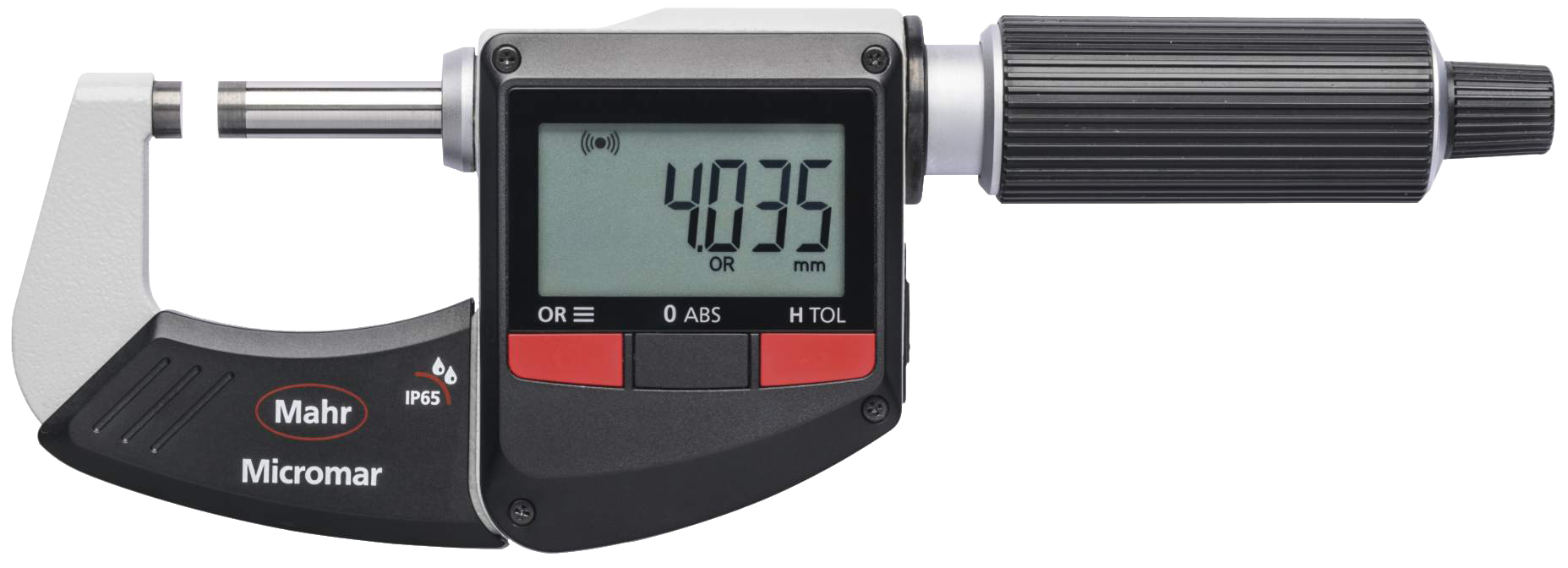

Micromar 40 EWR Digital Micrometer
| Order no. | Measuring range mm | Measuring range inch | Resolution mm/inch | Error limit µm | Spindle diameter | Spindle thread pitch_mm | Measuring force (N) |
|---|---|---|---|---|---|---|---|
| 4157011 |
0 - 25
|
0 - 1"
|
0.001 / .00005"
|
2 µm
|
6.5 mm
|
0.5 mm
|
5 - 10
|
| 4157012 |
25 - 50
|
1 - 2"
|
0.001 / .00005"
|
2 µm
|
6.5 mm
|
0.5 mm
|
5 - 10
|
| 4157013 |
50 - 75
|
2 - 3"
|
0.001 / .00005"
|
3 µm
|
6.5 mm
|
0.5 mm
|
5 - 10
|
| 4157014 |
75 - 100
|
3 - 4"
|
0.001 / .00005"
|
3 µm
|
6.5 mm
|
0.5 mm
|
5 - 10
|
Functions
- - RESET (set display to zero)
- - ABS (display can be set to zero without losing reference to preset)
- - mm/inch
- - PRESET (for entering a numerical value)
- - LOCK function (key lock)
- - HOLD (storage of measured values)
- High contrast analog display
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide tipped
- Rapid drive
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
- Battery life approx. 2 years
- IP 65
- Instruction manual
- Battery
- Setting standard (measuring range of 25-50 mm)
- Case
- 10mm
