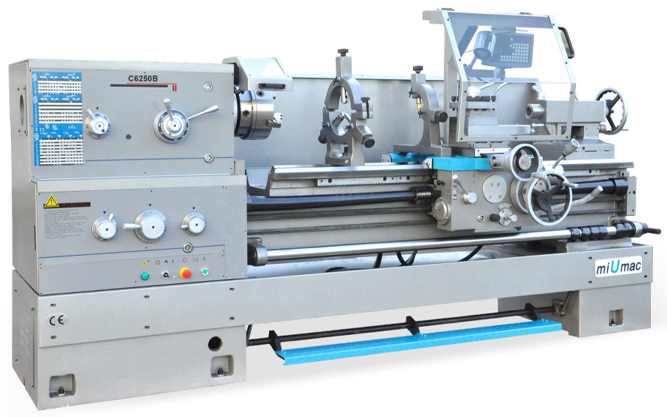

Miumac C6250B / 1500

Lathes

Miumac C6250B / 1500




Item Unit C6140W C6250B C6256B C6266B
Processing
Max. swing Dia. over bed mm Ф420 Ф500 Ф560 Ф660
Max. swing Dia. over slide mm Ф220 Ф310 Ф330 Ф420
Max. swing Dia. in gap mm - Ф720 Ф750 Ф870
Max. length of workpiece mm 1000/1500/2000 1000/1500/2000/3000 1000/1500/2000/3000 1000/1500/2000/3000
Maximum turned length mm 890/1390/1890 850/1350/1850/2850 850/1350/1850/2850 850/1350/1850/2850
Length of gap mm 200 200 200 200
Width of bed mm 405 405 405 405
Spindle
Spindle nose   C6 D8 D8 D8
Spindle bore mm Ф56 Ф80 Ф80 Ф80
Spindle bore taper   M.T.No.6 M.T.NO.7 M.T.NO.7 M.T.NO.7
Steps of spindle speed
  24 24 24 24
Range of spindle speed
rpm 9~1600 9~1600 10-1800 9~1600
Thread
Metric thread   0.5~224mm/48 1~224mm/46 1~224mm/46 1~224mm/46
Inch thread   72~1/8T.P.I/48 28~1/8T.P.I/46 28~1/8T.P.I/46 28~1/8T.P.I/46
D.P. thread   56~1/4D.P/45 56~1/4D.P/45 56~1/4D.P/45 56~1/4D.P/45
Module thread   0.5~112M.P/42 0.5~112M.P/42 0.5~112M.P/42 0.5~112M.P/42
Feed
Range of longitudinal feed
mm 0.028~6.43 0.063~6.43 0.063~6.43 0.063~6.43
Range of cross feed
mm 0.012~2.73 0.027~2.73 0.027~2.73 0.027~2.73
Max. size of tool shank(W×H) mm 25×25 25×25 25×25 25×25
Travel of compound rest mm 145 145 145 145
Max. cross slide travel mm 320 340   360
Z rapid movement speed
m/min 4.5 4.5 4.5 4.5
X rapid movement speed
m/min 1.9 1.9 1.9 1.9
Tailstock
bore taper   M.T.No.5 M.T.No.5 M.T.No.5 M.T.No.5
Max. travel mm 150 150 150 150
External Dia. mm Ф75 Ф75 Ф75 Ф75
Others
Power of main motor kW 7.5 7.5 7.5 7.5
Overall dimensions(L×W×H) mm 2500/3000/3500×1000×1285 2500/3000/3500/4500×

1280/1070x1290
2500/3000/3500/4500×

1280/1070×1350
2500/3000/3500/4500×

1280/1070×1450
Net weight kg 2550/2750/2950 2750/3000/3250/3600 2400/2650/2900/3250 3000/3200/3400/3900

Hardened and ground bed way and gears in head-stock are with long life and low noise .
Spindle system is of high rigidity and precision.
Rapid feed structure is available on Apron.
Headstock adopts clutch structure.
