Laser Radar ( Large Volume Inspection)
MV331
| Measurement Subsystem Performance | |
| Distance Measurement Performance | |
| Sample Rate | 4000pts/sec |
| Resolution | 0.01μm |
| Uncertainty (U=2) | 10μm+2.5μm/m |
| Dimensions and weights | |

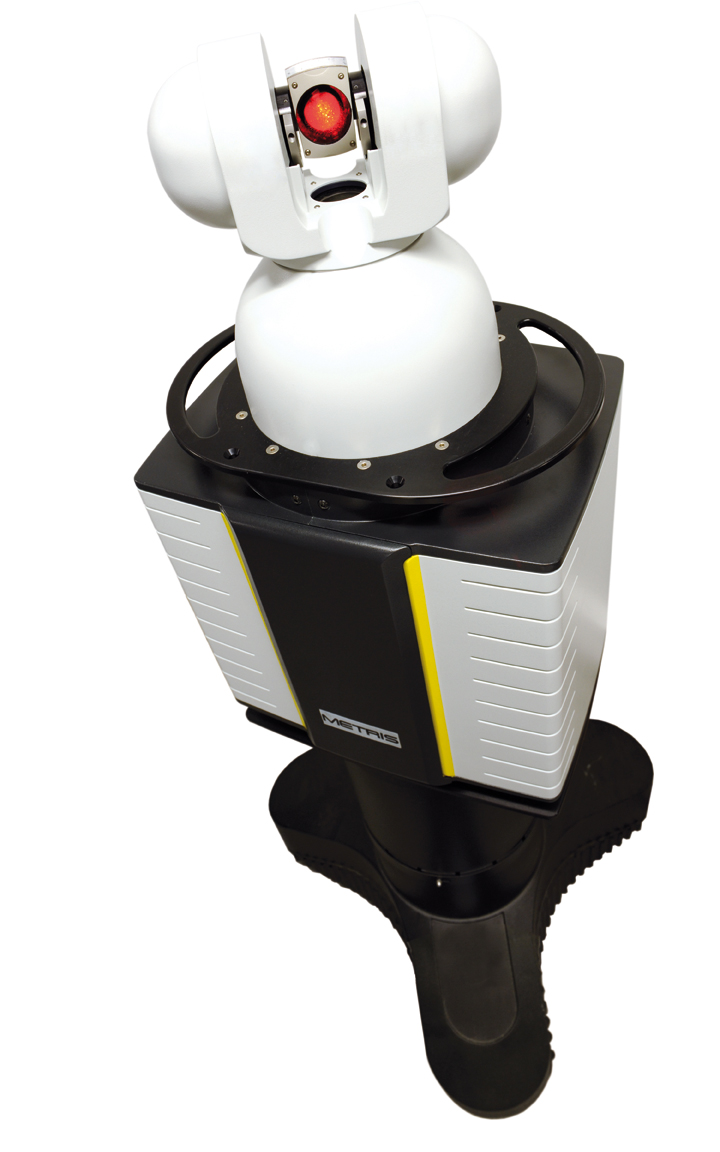

| MV330 Instrument | |
| Footprint mm (in) | 454 (18) x 381 (15) |
| Weight | 40 (88) kg (lbs) |
| Stand Assembly | |
| Footprint | Ø 933.5 (36.75) mm (in) |
| Weight | 29 (65) kg (lbs) |
| PowerRack | |
| Footprint | 571 (22.5) x 787 (31) mm (in) |
| Weight | 45 (100) kg (lbs) |
Features
- True long range, non-contact, targetless measurement
- Completely automatable
- Highly efficient measurement
- Lower resource costs
- High accuracy measurements on most any material
- Focused & aimed system, measures at precise locations
- High accuracy measurements on most any material
- Portable system enables measurements on the shop floor
- Minimal setup time
- Flexibility beyond direct line of sight with optional mirror kit
- Compatible with common metrology software
- Open SDK for assembly guidance, automated inspection
station, and machine tool integration
