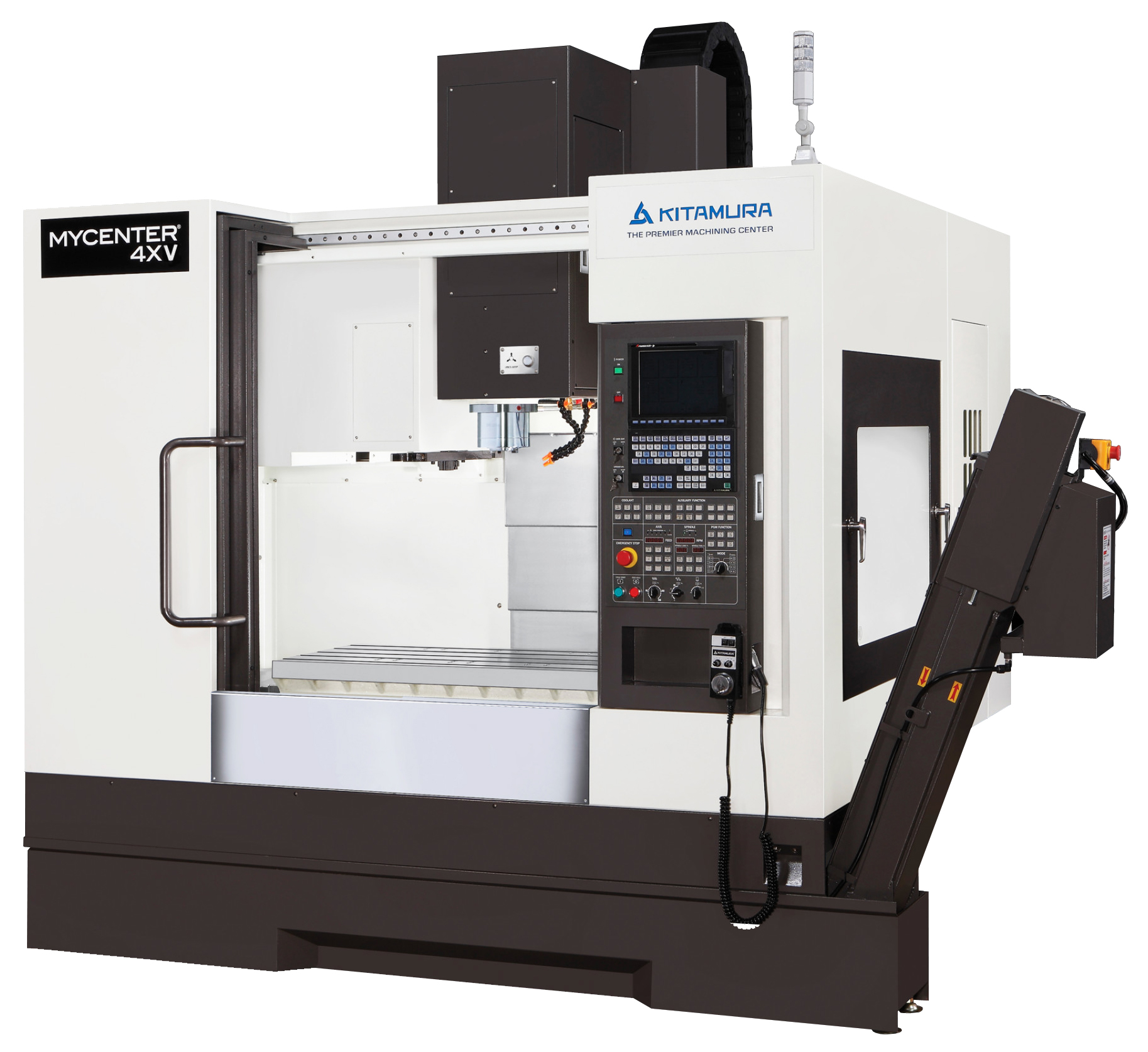

Mycenter-4XV Vertical Machining Center
Table Size 19.7” x 44.1” (500 x 1,120mm)
Travel (X, Y, Z) 1,020 x 510 x 510mm
Spindle Taper NST No. 40
Spindle Speed 50~15,000rpm, Built-in
Tool Storage Capacity 40 Pcs.
Tool Change Time (T-T/C-C) 2.2 Sec. /4.2 Sec.
Rapid Feed (X, Y x Z) 2,047ipm (52m/min) X/Y x 1,890ipm (48m/min) Z
Power Requirement 30KVA
• 40 Tool Standard ATC
• Large work envelope within a uniquely compact design
• Heavily ribbed stiff cast Meehanite C-Frame construction
• #40, 41HP, high speed 15,000rpm built-in spindle offers high speeds and heavy duty cutting capabilities
• Standard scraper type chip conveyor can be installed on either the right or left-hand side of the machine
• Operator friendly Kitamura Arumatik-Jr. CNC controller offers up to 16x faster processing speeds!
