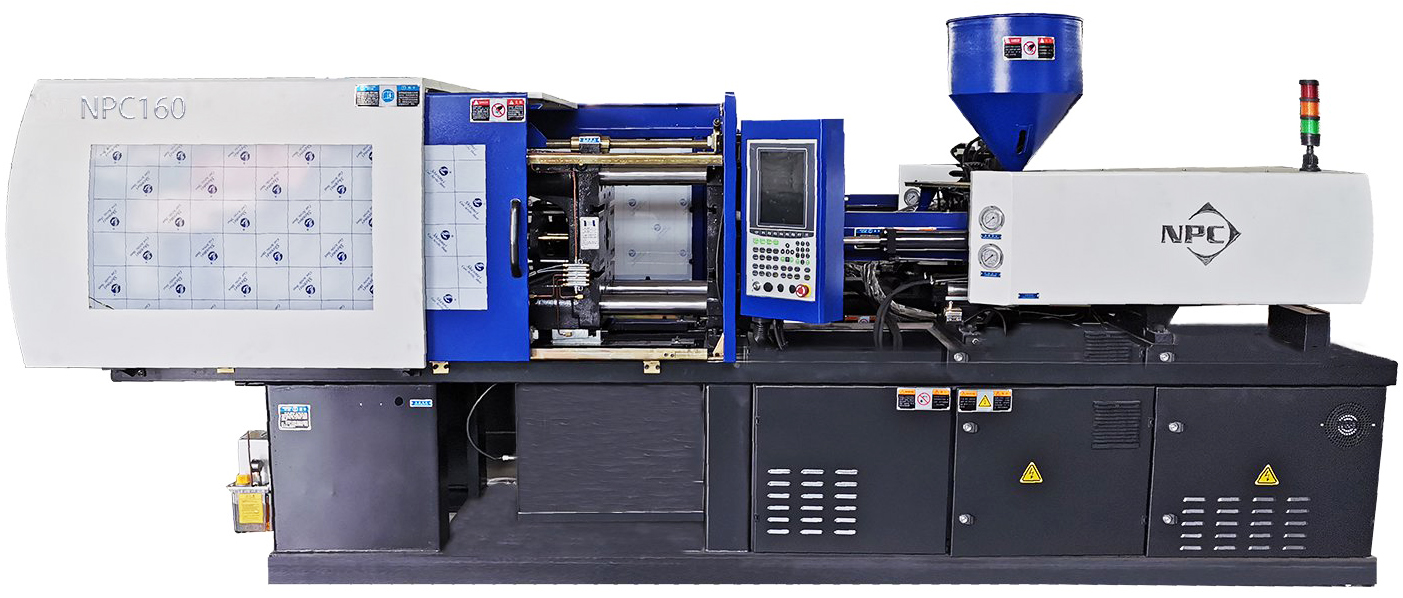

NPC160 Servo 160 Ton Injection Molding Machine

Specification



NPC 160





A

B

C

INJECTION UNIT









Screw diameter

mm

42



45

50

Screw L/D ratio

L/D

23.6

22

19.8

Shot volume(theoretical)(ps)

cm³

305

350

432

Injection weight(ps)

g

277

319

393

Injection rate

g/s

130

150

185

Injection pressure

Mpa

213

185

150

Screw speed

rpm

180

CLAMPING UNIT









Clamping force

KN

1600

Open stroke

mm

435

Space between tie bars(W*H)

mm

470*470

Max.Mould height

mm

520

Min.Mould height

mm

180

Ejector stroke

mm

135

Ejector force

KN

50

General









Max.pump pressure

Mpa

17.5

Motor power/servo power

KW

23

Heating power

KW

12.5

Machine dimension(L*W*H)

m

5.28*1.34*2.06

Oiltank cubage

L

205

Machine weight

t

5

- 1 step bigger motor and pump, make sure machine preforms, make sure the production with less cycle time; avoid over-load alarm in tropical area or hot weather
- Standard with Bi-metallic screw, machine works durable
- 1 set Air blow device & Core-pull device
- 4/4 in/out water distribution
- Close loop injection
- Digital proportional back pressure system
- 10 inches LCD display with multi-language as optional
- Return line filtration system
- Automatic safety door device
- Oil temperature control system
- The joint connecting part of the oil cooler adopted tougher design
- Continental rigid design of oil tubes
- *under NPC280 (including NPC280), it fits in 20GP container
