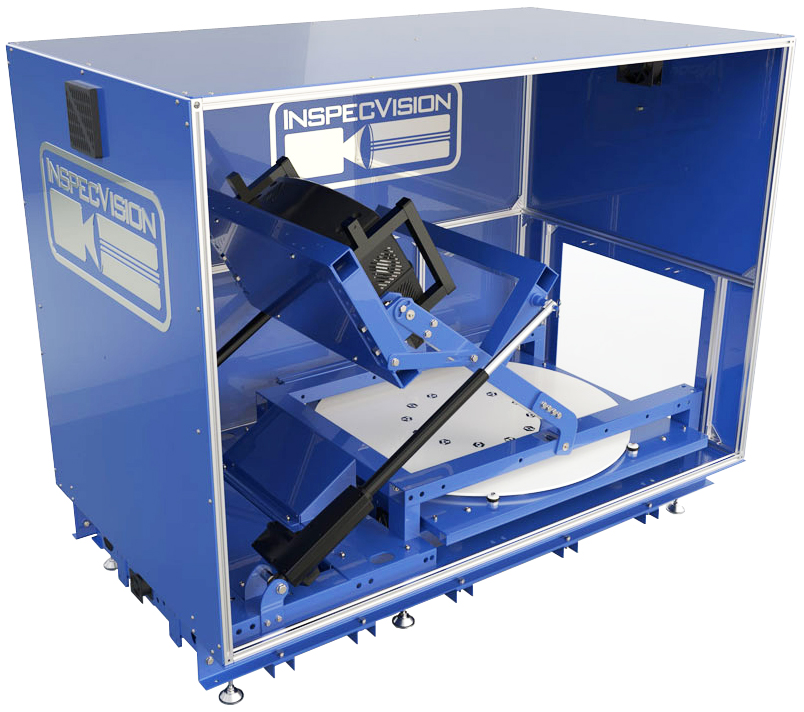

Optiscan 3D

White Light Scanning (3D Inspection)

Model I FOV (1) Field of view (Millimeters) I Accuracy (microns) Repeatability I Accuracy (micron) Volumetric I Camera w/ring light

OS1000.35 I 1000 I 35 I 75 I >18MP

OS1000.35LA I 1000 I 35 I 75 I >18MP

OS1000.35LM I 1000 I 35 I 75 I >18MP

OS350.10 I 350 I 10 I 15 I >18MP

OS350.10LEA I 350 I 10 I 15 I >18MP

OS350.10LEAA I 350 I 10 I 15 I >18MP

OS350.10LEM I 350 I 10 I 15 I >18MP

OS800.35 I 800 I 35 I 70 I >18MP

OS800.35LA I 800 I 35 I 70 I >18MP

OS800.35LM I 800 I 35 I 70 I >18MP

Opti-Scan 3D uses a high speed, high-resolution industrial camera, and an LED DLP projector to scan the surfaces of an object.

Patterns of light are beamed from the projector onto the part, these patterns are recorded by the camera and used to create surface measurements.
