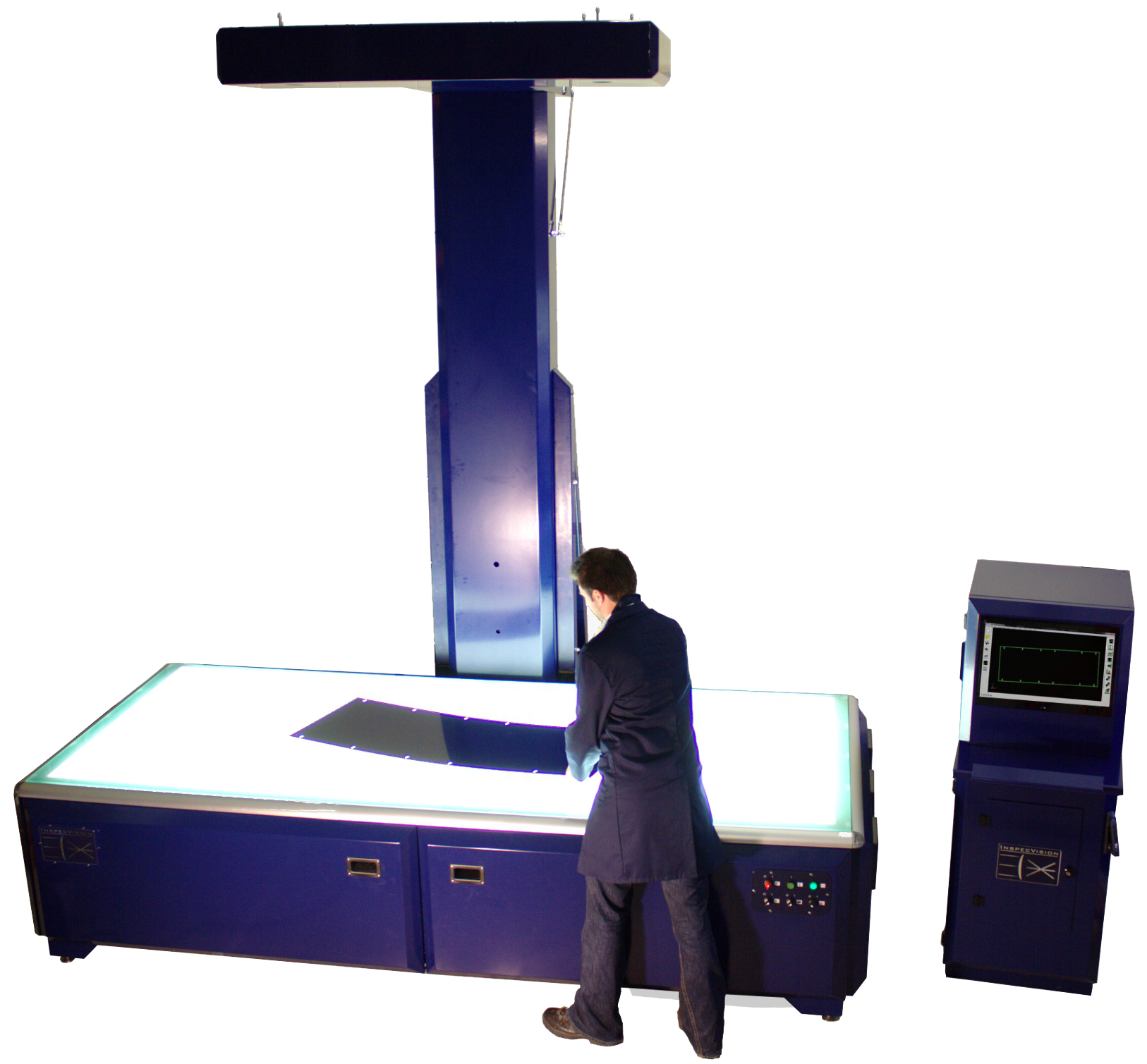

P370.50 Planar

2D Inspection ( Sheet Metal Parts )

P370.50 Planar

Description Specification/Scope of Supply
Max component length 2355mm
Max component width 1570mm
Max component thickness 350mm
Max component weight 500kg UDL (Uniformly Distributed Load)
Measuring accuracy, length & width** +/- 50/100 μm*
Measuring accuracy, height** (optional) +/- 300 μm*
Point Spacing 0.43mm
Measuring speed** <0.25sec
Camera Industrialised ultra high resolution professionally mounted in sealed enclosure
Computer processor Intel Quad Core
Processor speed >3GHz
Hard disk >125Gb
Screen 20 inch flat screen or better
Peripheral equipment Keyboard and optical mouse
Operating software Windows 10 - 64 Bit
Proprietary InspecVision software Inspection, SPC, Reporting, Reverse engineering
Data cable USB 2 or USB3
KVM Keyboard, Video Display & Mouse stand (PC integrated into light table assembly)
Light table construction Frame with removable sheet metal cladding
Light table measuring surface Laminate glass, toughened with integral diffusion layer
Light source High efficiency LEDs
Mast construction Heavy folded sheet metal construction
Power supply 230 Volt, single phase, 50Hz or 110 Volt, single phase, 60Hz on request
Power consumption 20 Amp maximum at 230 Volt, 30 Amp max at 110 Volt
Protective devices Circuit breakers, mounted at rear of light table
Control panel Control switches for power, camera and lights. Main power indicator
EC directives Compliant with Machinery, Low voltage and EMC Directives
Paint colour (powder paint) RAL 5013 (cobalt blue)
Ambient operating conditions 10-30 degree C
Approx Footprint/installed width/ depth/ height/ weight of installed Light table and Mast 2860mm (W) x 2560mm (D) x 5680mm (H) <1450kgs
Approx Footprint/installed width/ depth/ height/weight of installed Computer Cabinet (inc keyboard tray) Optional 710mm (W) x 472mm (D) x 1739 (H) <95kgs
Standard packing Export crates suitable for sea shipping (2 nos)
Warranty One year limited warranty on hardware and software
Optional extended warranty Two or three year extended warranty (requires software upgrade option)
Software support option Annual support contract provides free software upgrades


2D INSPECTION
InspecVision’s Planar system has been designed specifically for speed, accuracy and ease of use. The 2D process can measure every feature completely. Planar can produce multiple report types automatically with minimal input from the operator. To inspect, the operator places the part on the measurement surface and with a single click or scan of a barcode, Planar will:
• Import the CAD file for the part
• Extract the relevant profile data
• Extract all dimensions and tolerance data from the layers
• Use this information to generate reports automatically
• Measure the part
• Fill in reports with measured data, nominal data, tolerance information and will indicate all PASS/FAIL items
• Display and optionally print a colour deviation diagram comparing CAD information to measurement data
• Output SPC data for analysis

2D REVERSE ENGINEERING
One special feature of the Planar system is it’s unique ability to very rapidly reverse engineer flat parts. A profile can be placed onto the machine and reverse engineered in seconds. The machine will output dxf or dwg CAD files which can them be used on a cutting system to make duplicates of the part, or simply to document a part for which no drawing exists. Familiar CAD functionality allows the user to edit and clean the data to ensure standardisation of hole sizes etc, and clean edges for example, before saving out the file.
Physical parts or even paper, acetate or electronic image files can be reverse engineered to create CAD files. There is no comparable system on the market today which can offer this capability with this ease and speed. Again using the optional 3D modules, similar reverse engineering processes can be carried out in 3D.
