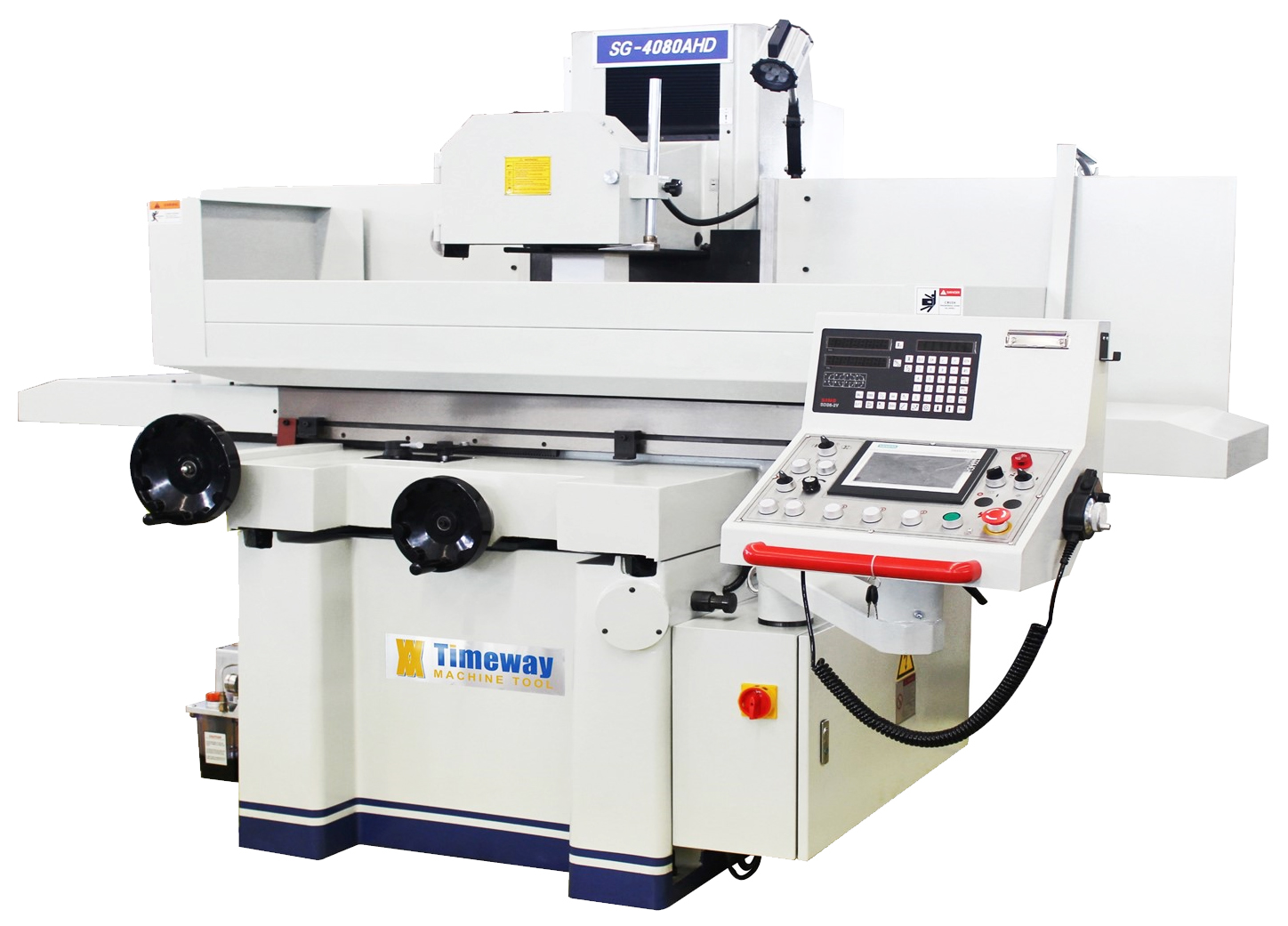

SG3063 AHD
| X-axis travel | 765mm |
| Y-axis travel | 340mm |
| Table size | 305x635mm |
| Wheel size | 350x40x127mm |
|
Specification |
Unit |
SG-3063AHD |
SG-3063AHD |
SG-3063AHD |
|
Table size |
mm |
305x635 |
305x635 |
305x635 |
|
Electro magnetic chuck size |
mm |
300x600 |
300x600 |
300x600 |
|
Distance from spindle to table |
mm |
580 |
580 |
580 |
|
Table cross travel |
mm |
340 |
340 |
340 |
|
Table longitudinal travel |
mm |
765 |
765 |
765 |
|
Loading capacity (include chuck) |
kg |
270 |
270 |
270 |
|
Longitudinal feed speed |
m/min |
5-25 |
5-25 |
5-25 |
|
Table cross intermittent feed rate |
mm/str |
0.1-8 |
0.1-8 |
0.1-8 |
|
Table cross rapid feed speed |
mm/min |
990 |
990 |
990 |
|
Table cross feed of handwheel |
mm/gra |
0.02 |
0.02 |
0.02 |
|
Wheelhead vertical intermittent feed rate |
mm/str |
- |
- |
0.005-0.5 |
|
Wheelhead vertical rapid feed speed |
mm/min |
- |
650 |
480 |
|
Wheelhead vertical feed of handwheel |
mm/gra |
0.005 |
0.005 |
0.005 |
|
Spindle speed (50/60HZ) |
rpm |
1450/1750 |
1450/1750 |
1450/1750 |
|
Grinding wheel size |
mm |
350x40x127 |
350x40x127 |
350x40x127 |
|
Main motor power |
kw |
4 |
4 |
4 |
|
Machine dimensions (LxWxH) |
cm |
290x220x190 |
290x220x190 |
290x220x190 |
|
Package dimensions (LxWxH) |
cm |
235x222x221 |
235x222x221 |
235x222x221 |
|
Machine weight |
kg |
2800 |
2800 |
2800 |
Siemens PLC Control
-
High rigidity one-piece stand adopts high quality casting iron for ensuring stability and performance of whole machine.
-
Well designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiency.
-
Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.
-
Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.
-
Double walled column construction, provide high rigid support to the grinding spindle. Closed steel guard is equipped for protecting spindle motor and guideway, which make the column safe and beautiful.
-
The worktable is driven by imported hydraulic valve unit, realize smoothly motion without shocking.
-
The guideway is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy long life.
-
The AHD series grinder is standard equipped with auto down feed servo motor, and controlled by PLC and HMI with built-in program. It is so easy to realize auto grinding.
