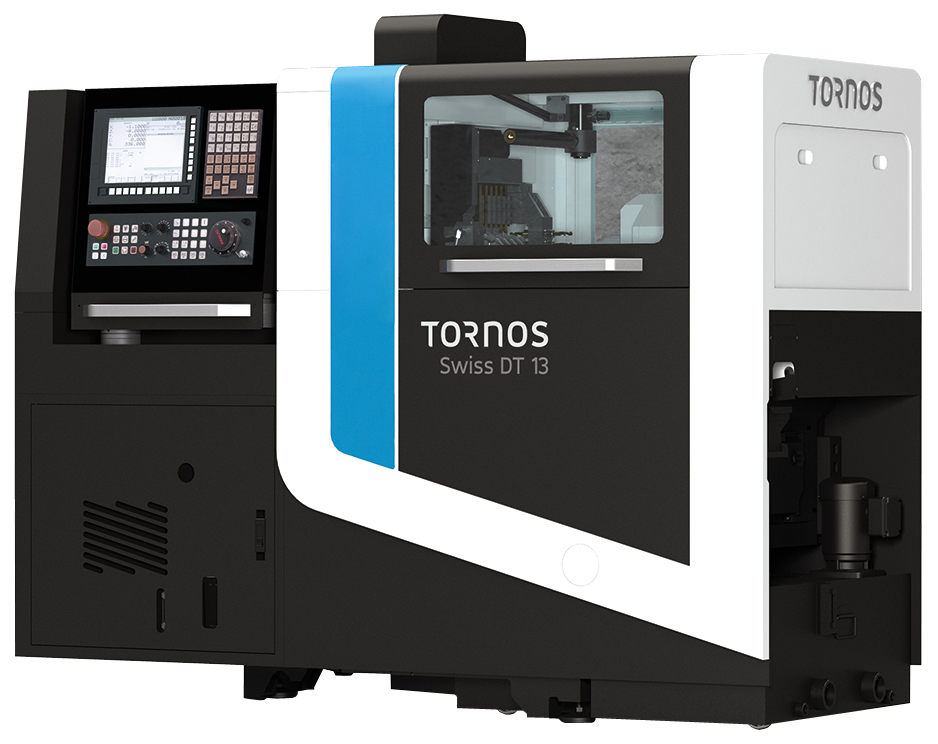

Swiss DT 13 HP
| Diameter | 13mm |
| Standard workpiece length with guide bush | 210mm |
| Maximum number of tools | 28 |
| Maximum number of rotating tools | 14 |
| Spindle speed | 15000rpm |
| Spindle power (S1/S6) | 4.0 (5.0)kW |
| Counter spindle power | 4.0 (5.0)kW |
| Direct-drive guide bush | No |
Meet your new partner: the latest-generation Swiss DT range. Exceed your own expectations, extend your competitive edge, and profit from a solution that evolves according to your business strategy. The range consists of 6 S and HP machine configurations accommodating 13, 26, 32, and 38mm diameter bars.
Customized for your productivity
Maximize your productivity: The machine’s base was designed for just that purpose. This fully modular machining area can accommodate any type of tool holder; drilling, milling, thread whirling or even gear
hobbing are just a few examples of the Swiss DT’s incredible flexibility.
Power your profitability
Gain precious seconds to outperform your competitors and tackle any material, due to the Swiss DT’s extremely powerful spindles. Equipped with ceramic bearings, the 2 spindles benefit from the same 10.5 kW power*. Able to accelerate to 10,000 rpm in 0.3 seconds*, our spindle lets you benefit from 26Nm (19.177 ft./lb.)* of torque. Both spindles are liquid-cooled.
Tailored for you
Confidently conquer any machining challenge with Tornos’ Swiss DT range, built for you and adapted to your needs. Get the agility to master any challenge, with the plug-andplay B axis (option).
Enjoy the benefits of the most rigid machine in its class
Achieve better surface finishes and longer tool life, and get a quick return on your investment, thanks to this machine’s sturdy, cast-iron base optimized by finite element analysis. The Swiss DT range can also accommodate water-based coolant.
Improve and ensure self-sufficiency with Tornos’ Active Chip Breaker Plus (ACB Plus) software
Improve and secure the autonomy of your process (option).
Options
Active Chip Breaker Plus (ACB Plus)
Extremely easy to use and can be actuated by just inserting a G code in the program. Various parameters can be used to change the oscillation amplitude and frequency to achieve a fine adjustment based on the specific workpiece requirements and thus avoid snarl chips.B Axis
The B axis extends the Swiss DT 26’s capabilities substantially, allowing it to tackle almost any part. This modular position can incorporate either a 4th rotating drilling station or a high frequency spindle.High-pressure pump
Benefit from a high-pressure-ready machine, and defeat the most difficult challenges with the Swiss DT 26! Whether you need a significant amount of coolant to “clean” the machining area, or more direct high-pressure coolant for thread whirling or high-pressure drilling, Tornos offers a range of pumps tailored to your requirements.
High-frequency spindles
High-frequency spindles, with rotation speeds of up to 60,000rpm, enable the Swiss DT 26 to perform drilling milling and slitting as well as eccentric drilling. Spindles can be installed in main operation and counter-operation in many variants.
Built-in part extraction
Long parts? Extract parts up to 500mm, thanks to our optional long parts extraction system!
