trivaCLAMP

Vacuum clamping

- Ideal for plate-shaped and even non-magnetic workpieces
- Modular design – walls on the side also available
- No pressure marks or deformations on soft parts
- Minimal vibrations
- Quick reclamping
- High degree of efficiency due to special workpiece support

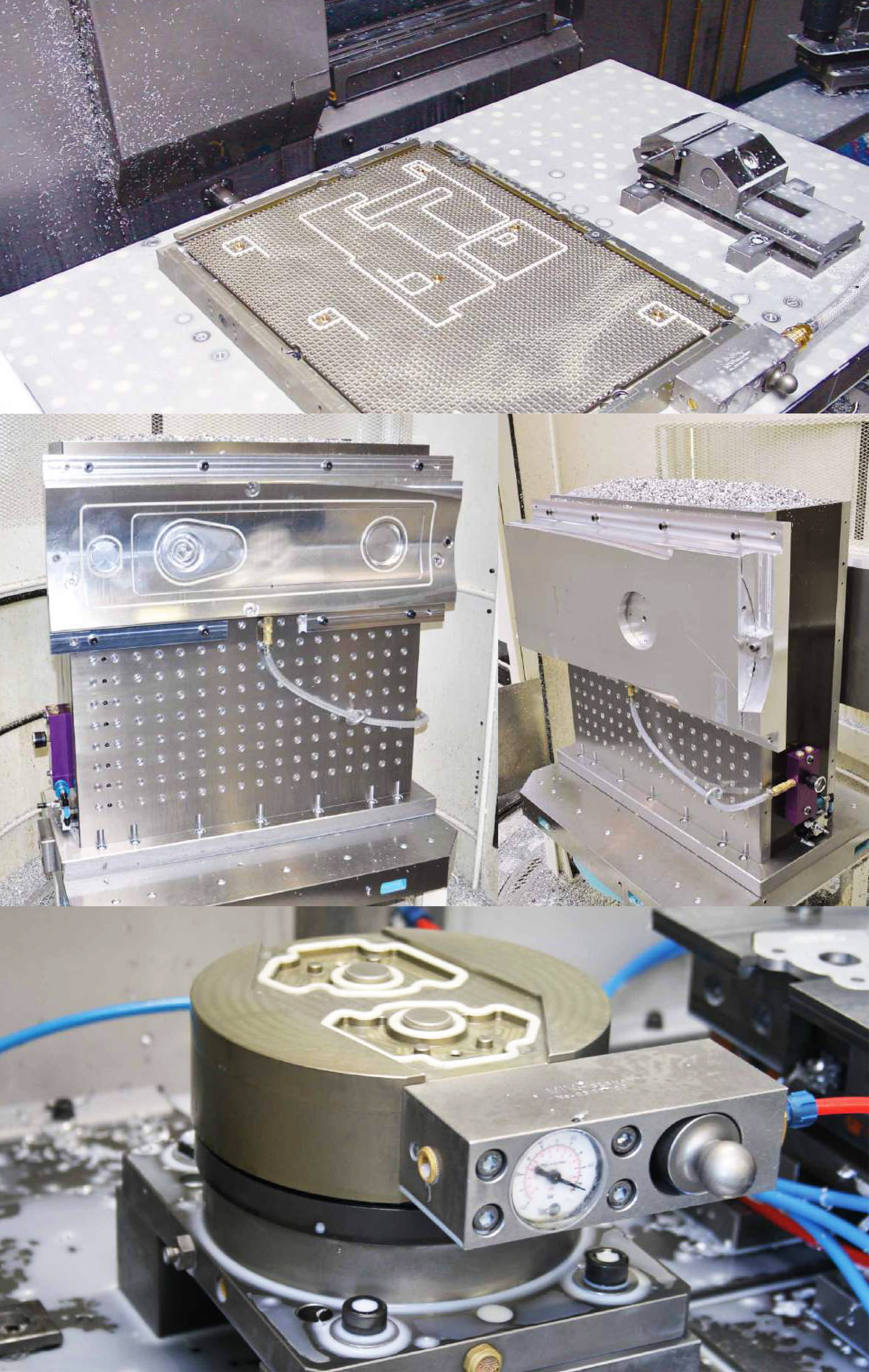

Vacuum clamping with the trivaCLAMP system is suited for gentle and even clamping of bulky workpieces, plates, U-shaped or angle sections and thin-walled workpieces. Pressure marks and deformations that come with mechanical clamping can also be avoided in this way. When using vacuum clamping, the surrounding atmosphere applies pressure onto the workpiece. Workpieces are affixed to the entire surface, which largely prevents vibration. Simple loading and a free working space are additional advantages.

trivaCLAMP consists of vacuum clamping plates and a vacuum pump and is used for utilisation of entire machine tables, for disc-shaped workpieces as well as for small and moulded parts (adapter plates). Additional steep walls allow lateral workpiece clamping.
