5th Axis Trunnion Tables
TW2180
| Model | TW2180 | |
|---|---|---|
| Tilting Angle Range | -110°～+110° | |
| Table Diameter (mm) | ø180 | |
| Centre Hole Diameter (mm) | ø65H7 | |
| Through Hole Diameter (mm) | ø40 | |
| Distance between Axes (mm) | 250 | |
| Centre Height (mm) | 200 | |
| Clamping Method | Rotating axis | Pneumatic |
| Tilting axis | Air-hydraulic | |
| Clamping Torque (N·m) (at 0.5 MPa) |
Rotating axis | 400 |
| Tilting axis | 800 | |
| Motor Axis Reduced Inertia (kg·m2) | Rotating axis | 0.000383 |
| Tilting axis | 0.00035 | |
| Servomotor (for Fanuc spec.) | αiF 2/5000-B | |
| Total Reduction Ratio | Rotating axis | 1/90 |
| Tilting axis | 1/180 | |
| Max. Rotation Speed (min-1) |
Rotating axis | 33.3 |
| Tilting axis | 16.6 |
|
| Allowable Work Inertia (kgm2) | 0.12 | |
| Indexing Accuracy (sec) | Rotating axis | 30 |
| Tilting axis | 60 | |
| Repeatability (sec) | 4 | |
| Mass of Product (kg) | 247 | |
| Allowable Load | at horizontal (kg) | 30 per 1 rotating axis |
| at 90˚ tilted (kg) | 30 per 1 rotating axis | |
| Built-in Rotary Joint (as an option) | RJ40TW2180 2 Hydraulic/Pneumatic ports + 3 Pneumatic dedicated ports per 1 rotating axis |
|

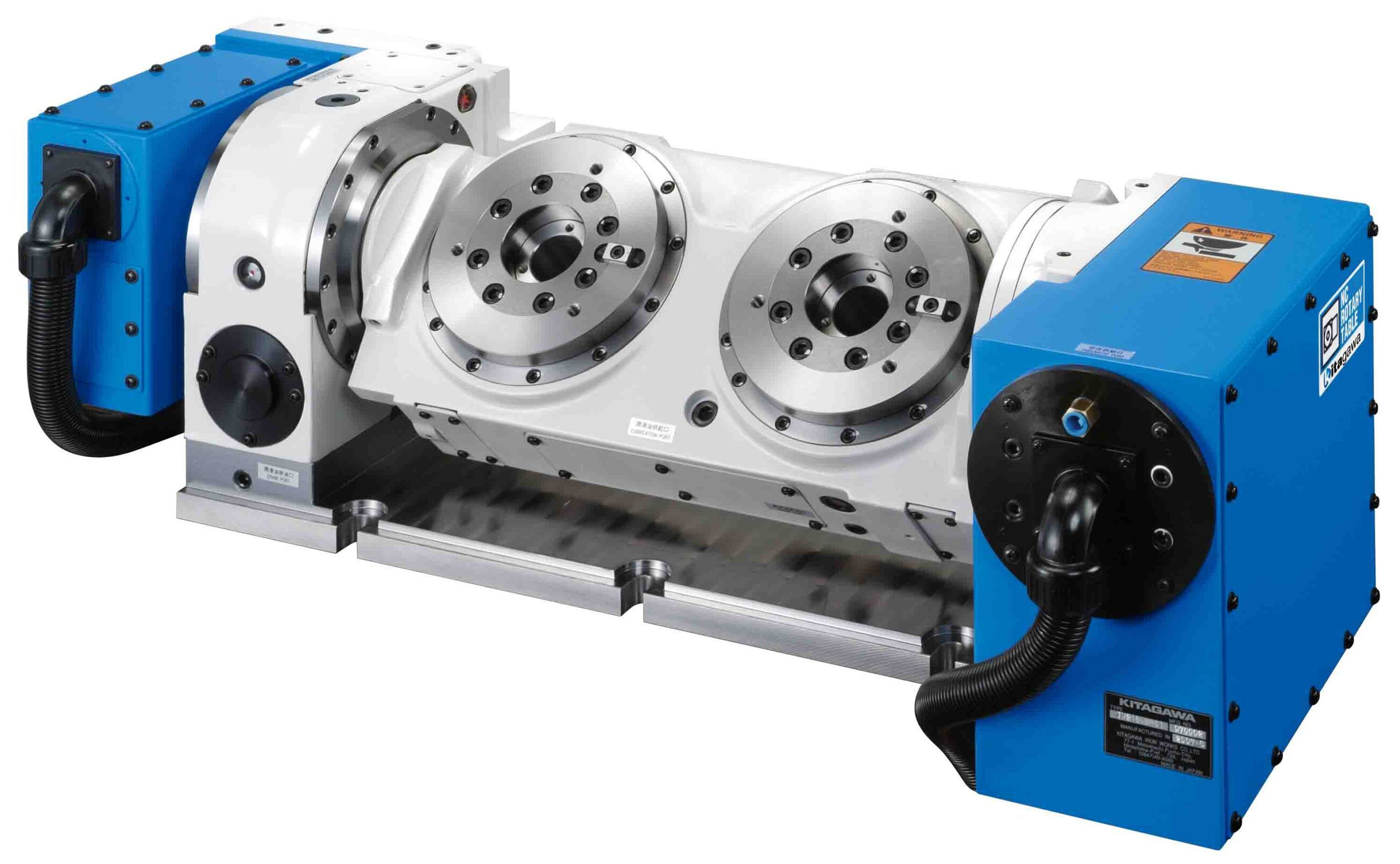

180mm diameter twin faceplates suitable for 4th and 5th axis machining.
- Spindle Through Hole Dia: 40mm
- Centre Height Vertical: 200mm
- Tilting Angle: -110°~+110°
- Repeatability: 4sec
