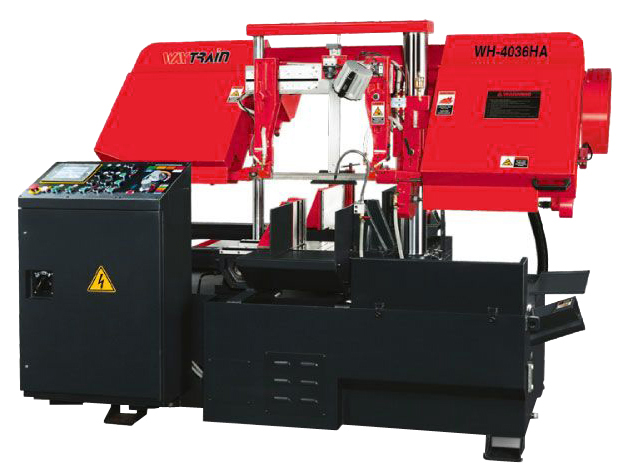

WH-4036HA

Automatic Band Saws

WH-4036HA

Capacity (H x W)  ● 360 mm   ▅ 360 x 400 mm
Bundle Cutting  180 ~ 280 x 50 ~ 160 mm
Minimum No Material Detecting  32mm
Blade Size  34 x 1.1 x 4570mm
Blade Speed 25~75 mpm
Blade Motor  5HP (5.6kW)
Hydraulic Motor 1HP
Coolant Pump 1/6 HP (0.125 kW)
Hydraulic Tank 40L
Coolant Tank  84L
Cut off Length Over 10mm
Feeding Stroke  400mm
Table Height  755mm
Minimum Residual Work Length 100mm
Packing Size 2400 x 2120 x1840mm
N.W./G.W.

1680 / 1910kg



- Hydraulic blade tension
- Hydraulic automatic chip conveyor
- Hydraulic carbide blade guide
- Full stroke hydraulic vises
- Inverter controls blade speed
- Rotary encoder measure feeding length
- Can save 10 cutting presets memory
- Vise pressure regulator (option)
- Hydraulic vertical press device (option)
