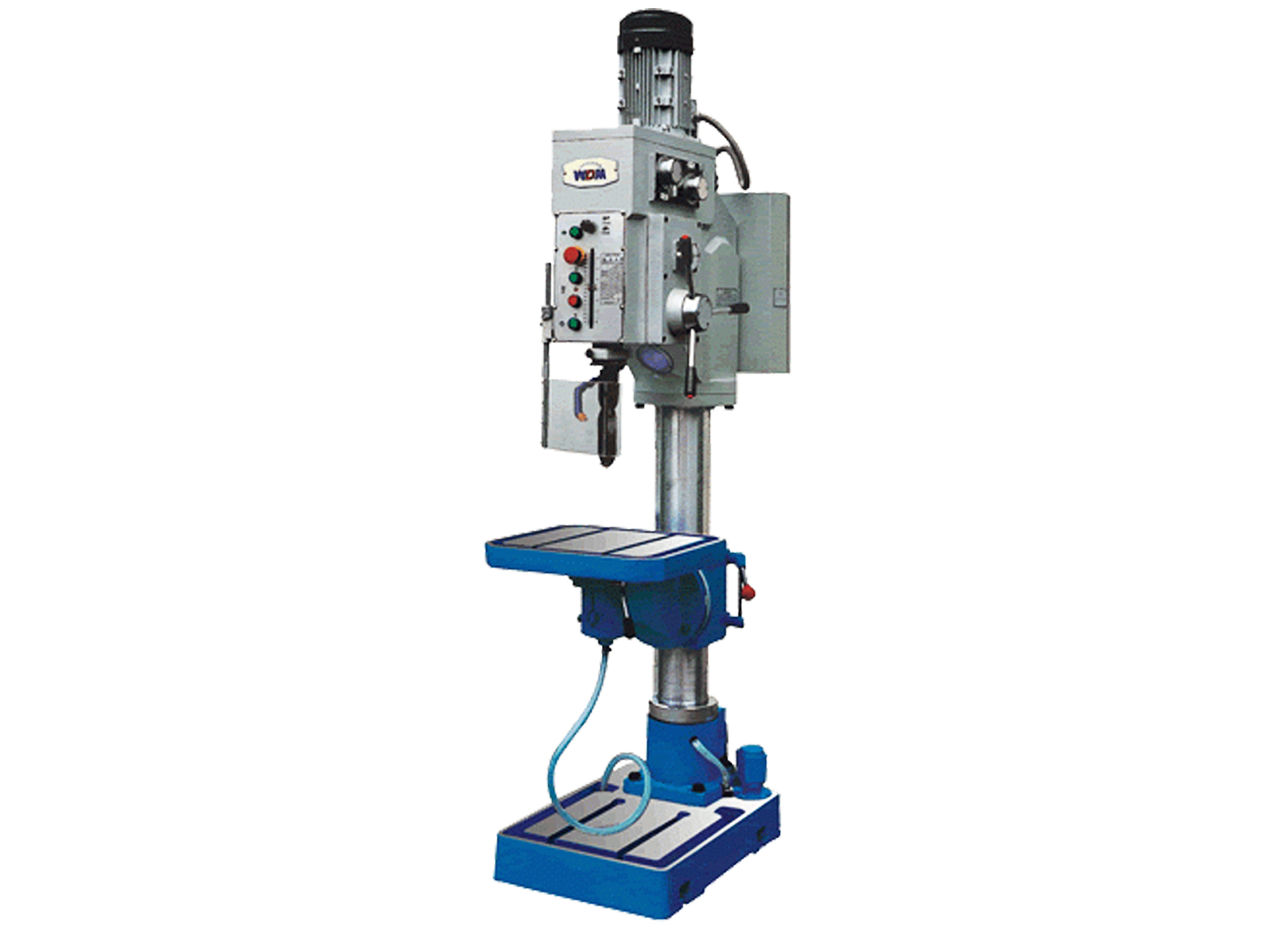

Z5035

Geared Head

Max Drilling Capacity	35mm
Max Thread Cutting	M24
Quill Stroke	150mm
Spindle to Column Distance	330mm
Max Spindle to Table Distance	630mm
Max Spindle to Foot Distance	1200mm
Max Adjustment of Work Table and Table Rest	520mm
Swivel of Table	45 degrees
Spindle Bore Taper	MT4
Spindle Speeds	70-2600RPM
Feed Range	0.1, 0.2, 0.3mm/rev
Effective Table	450x390mm
Base Plate Dimensions	405x395mm
Two-Speed Main Motor	1.5Kw-960rpm/2.2Kw-1450rpm
Column Diameter	140mm
Weight approximately	600Kg
