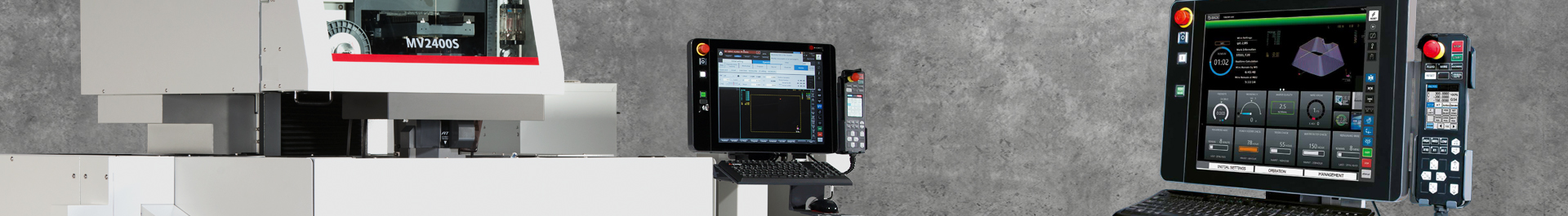

EDM Controls

M800 / D-CUBES

In developing the M800/M80 Series, Mitsubishi went back to the drawing board and completely reexamined their cutting-edge control

technologies. The result is a breakthrough in the control of high-speed, high-precision machining. The M800 has a CNC-dedicated CPU

which not only results in phenomenal processing speed, but also reduces the number of required parts, leading to fewer possibilities of

failure and increasing product quality.

Advanced Design

- Display and keyboard design have been renewed.

- The advanced construction and sophisticated flat profile take machine design to the next level.

- The display incorporates a touchscreen as standard specifications,

- providing intuitive smartphone-like operation (10.4-type and wider displays).

Smartphone-like intuitive touch operation

The display features a capacitive touchscreen that is commonly used in smartphones and tablets, allowing for intuitive and easy

operation. With a simple flick of the finger, for instance, you can monitor the desired part of program, or view and select a menu

key on thenext page without the need for tedious key operation.



M800W - Premium CNC with Windows-based display provides expandability and flexibility

M800S - High-grade CNC well suited to high-speed high-accuracy machining and multi-axis multi-part system control

M80 - Standard CNC provides high productivity and easy operability

Specifications

Specifications

GSM frequencies  900   1800
Dimensions (W x H x D)  89.00 x 45.00 x 22.00mm
Weight  94.00 g
Main display  Color / TFT      256k colors
                                              128 x 160 px (0.00")
Talk time (max.)                     2G: 150 min. (2.5 h)
Stand-by (max.)   2G: 250 h (10.4 days)
Standard battery  Li-Ion 680 mAh
Phonebook memory  500 places
Internal memory  1.5 MB
SAR (10g)                            0,7 W/kg

M70/700

Cutting-edge, full-fledged nano-control

Nano-interpolation for high-quality machining results
Full-fledged nano control for optimum performance
High-speed, high-precision die/mold cutting
SSS Control for stable machining quality
Increased speed, precision and quality

Optimum Machine Response (OMR) control
OMR-Feed Forward (FF) control for accurate cutting according to machining commands
High-gain Control II improves basic servo system performance
M-DDC function reduces synchronized tapping time and increases precision
A wealth of functions to Support intermixed machining needs

Synchronization Control (milling)
5-axis machining function (milling)
Systems/start point synchronization (turning)
Mixed machining command (turning)
Milling interpolation (turning)
Enhanced operability reduces set-up time

Display of essential information for easy understanding
Pop-up Screens for added ease of use
Program input error warning function
Easy-to-use Menu List display and Help function
Screens developed for optimum ease of use

Communication terminals support easy use and high performance
Standard PCMCIA slot
Advanced-functions model equipped with WindowsXPe
USB port
Superb environmental performance
17 languages supported
