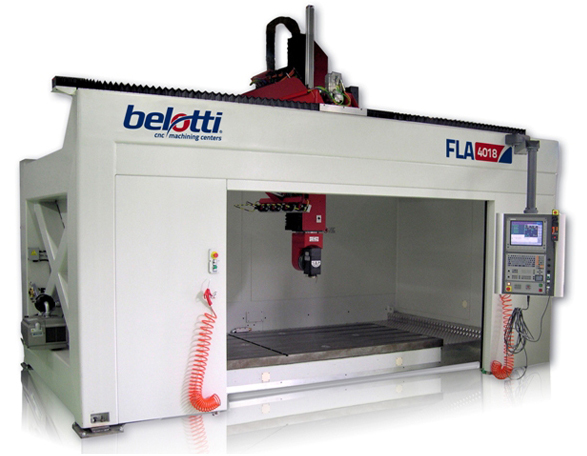

FLA Series
Axis | X | Y | Z | C | A |
---|---|---|---|---|---|
Stroke | 3/4/5,5/6,5/9/12 m | 1,8/2,6/3,2/5,6 m | 0,9/1,3/2 m | +/- 270° | +/-120° |
Speed | 80 m/min | 60m/min | 44 rpm | 40 rpm | |
Spindle | From 6,5 kW up to 22 kW at 24.000 rpm max. | ||||
CNC | Siemens, Heidenhain, Fanuc | ||||
Tool change | From 8 to 30 positions | ||||
Linear accuracy | ≤ 0,03mm/m for linear axes | ||||
Rotary accuracy | +/- 20 arc sec for rotary axes | ||||
Measurement System | Heidenhain glass linear scales, 5 microns resolution |
The new generation of CNC machining centres FLA series combines the productivity of a milling machine to the high speed and potential of a moving bridge machining center. It is characterized by high dynamics with all axes; it also features customizable revolver or tool changer heads to ensure maximum productivity for sector specific needs. All this comes with an ideal price/performance ratio. 80 m/min rapid speed along with up to 0.8 g of X -Y -Z axis acceleration represent the necessary requirements for trimming plastics, composite ( such as carbon fiber, fiberglass and kevlar) and wooden materials, as well as for machining light alloys. The modular-designed extensible magazine is usually equipped with 8 stations for HSK 63F and HSK 63A tool holders and can be widely customized. Among the various optionals, automated loading/unloading systems (rotary tables and parallel shuttles) enable a quick machining center setup. Belotti's FLA is the ideal partner for milling of resin / aluminium models and moulds and for high quality trimming of composite and plastic materials.
