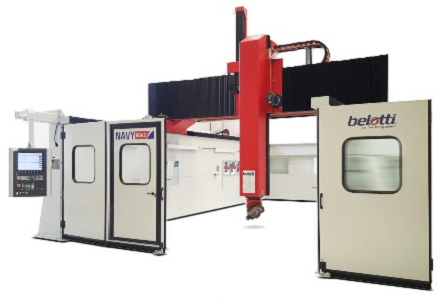

NAVY Series 5-Axis Machining Center
Axis | X | Y | Z | C | A |
---|---|---|---|---|---|
Stroke | 2,6/6/8/12/17/20/23/30/43 m | 4,2/6,2/7,2/8,8 m | 1,5/2/3/3,3/4/4,2/5,3/6,9 m | +/- 270° | +/-120° |
Speed | 100 m/min | 45 m/min | 44 rpm | 40 rpm | |
Spindle | From 15 kW up to 42 kW at 24.000 rpm max. | ||||
CNC | Siemens,Heidenhain, Fanuc | ||||
Tool change | From 18 to 60 positions | ||||
Linear accuracy | ≤ 0,035mm/m for linear axes | ||||
Rotary accuracy | +/- 24 arc sec for rotary axes |
NAVY series consists of 5-axis advanced machining centers especially designed for shipyards specific needs. A wide range of models and cutting heads enable to meet any kind of dimensional and technological requirement. The shipyards who chose Belotti's Navy machining centres incremented their constructive quality and efficiency shortly; furthermore, the quality of working environment has greatly improved, thanks to the various accessories offered with the machining center, such as effective dust suction equipments and active/passive safety systems.
