Millimess Dial Comparators

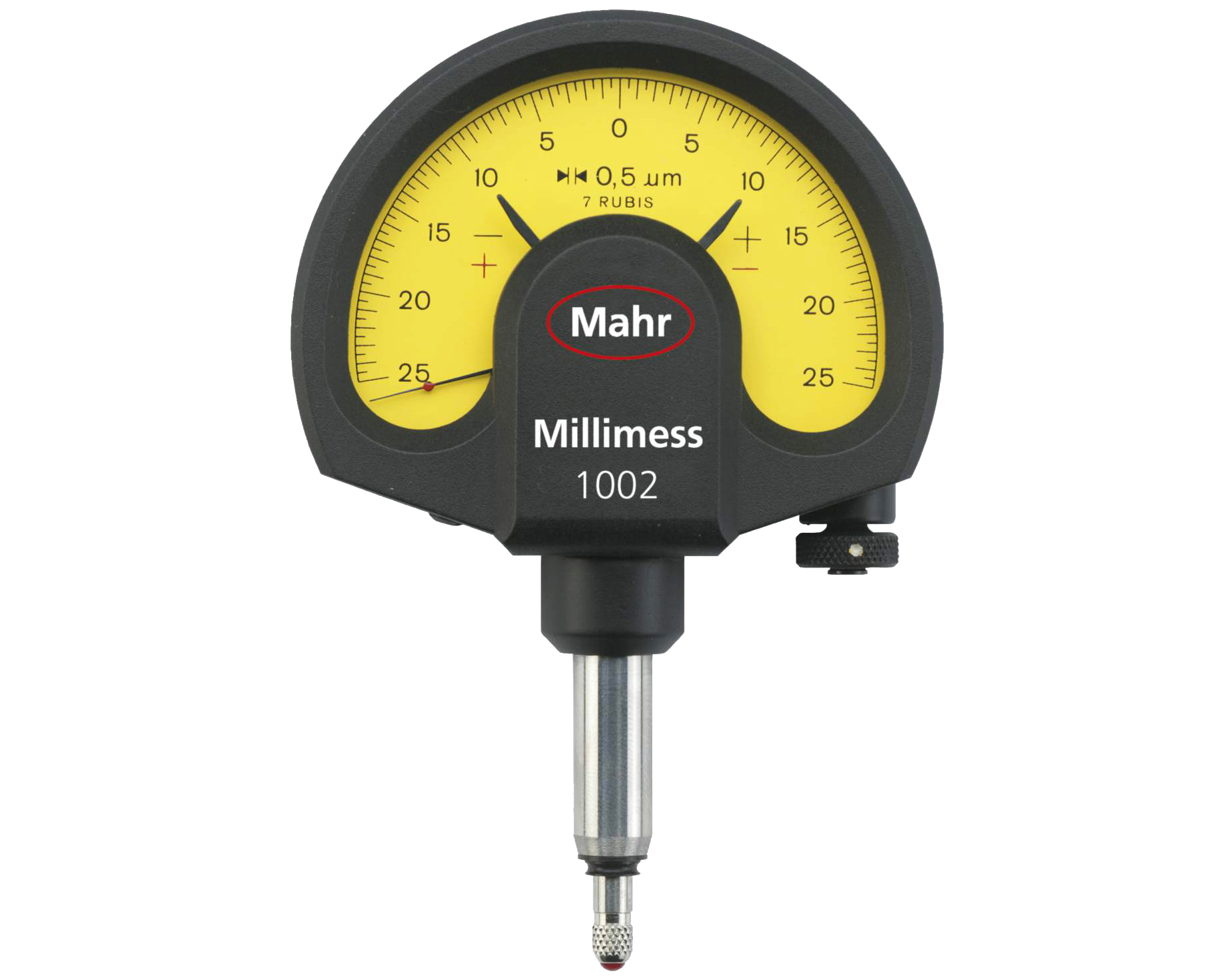

Millimess 1002 Z Mechanical Dial Comparator
| Order no. | Product type | Measuring range inch | Graduation value inch | Type of dial face | Error limit Ge in inches (text) | Error limit Gges in inches (text) | Error limit Gt in inches (text) | Hysteresis fu (inch) | Repeatability fw (inch) | Standard | Measuring force | Scale diameter | Dial color | IP protection category |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4335900 |
1002 Z
|
± .0010"
|
0 inch
|
.001"-0-.001"
|
.00002"
|
.00003"
|
.000014"
|
0 inch
|
0 inch
|
Factory standard
|
1 N
|
50 mm
|
White
|
|
| 4335905 |
1002 ZT
|
± .0010"
|
0 inch
|
.001"-0-.001"
|
.00002"
|
.00003"
|
.000014"
|
0 inch
|
0 inch
|
Factory standard
|
1 N
|
50 mm
|
White
|
IP 54
|
| 4334900 |
1003 Z
|
± .0020"
|
0 inch
|
.002"-0-.002"
|
.00005"
|
.00006"
|
.000035"
|
0 inch
|
0 inch
|
Factory standard
|
1 N
|
50 mm
|
White
|
|
| 4334905 |
1003 ZT
|
± .0020"
|
0 inch
|
.002"-0-.002"
|
.00005"
|
.00006"
|
.000035"
|
0 inch
|
0 inch
|
Factory standard
|
1 N
|
50 mm
|
White
|
IP 54
|
| 4333900 |
1004 Z
|
± .0050"
|
0 inch
|
.005"-0-.005"
|
.0001"
|
.00012"
|
.00005"
|
0 inch
|
0 inch
|
Factory standard
|
1 N
|
50 mm
|
White
|
|
| 4333905 |
1004 ZT
|
± .0050"
|
0 inch
|
.005"-0-.005"
|
.0001"
|
.00012"
|
.00005"
|
0 inch
|
0 inch
|
Factory standard
|
1 N
|
50 mm
|
White
|
IP 54
|
| 4332900 |
1010 Z
|
± .0100"
|
0.001 inch
|
.01"-0-.01"
|
.00035"
|
.0004"
|
.00025"
|
0 inch
|
0 inch
|
Factory standard
|
1 N
|
50 mm
|
White
|
|
| 4332905 |
1010 ZT
|
± .0100"
|
0.001 inch
|
.01"-0-.01"
|
.00035"
|
.0004"
|
.00025"
|
0 inch
|
0 inch
|
Factory standard
|
1 N
|
50 mm
|
White
|
IP 54
|
- - Large, high contrast dial face
- - Adjustable tolerance markers
- - Lockable fine adjustment screw
- - Shockproof movement
- - Mounting shank and measuring spindle are both made of hardened stainless steel
- - Measuring spindle is mounted in a high precision ball guide for minimal hysteresis
- - Resistant to lateral forces (side play) acting on the measuring spindle
- - Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions
- - Box type protective housing
- - Constant measuring force
- - Measuring spindle can be retracted with either a screw in cable release or with a lifting knob
